| Price | $10.00 - $50.00/ Meter |
| MOQ | 50 Meters |
| Delivery Time | 45 work days |
| Brand | UCER |
| Place of Origin | CHINA |
| Certification | ISO9001 |
| Model Number | SDBF |
| Packaging Details | a conveyor chain + a poly bag + individual box + wooden case |
| Payment Terms | L/C, T/T, D/P, CAD |
| Supply Ability | 10000 Meters per Month |
| Standard or Nonstandard | Standard | OEM or not | Could OEM size |
| Place of Origin | CHINA | Packaging Details | a conveyor chain + a poly bag + individual box + wooden case |
| Color | black & gray | roller &pin material | 40Cr |
| Model Number | SDBF | conveyor chain pitch | 250mm |
| Supply Ability | 10000 Meters per Month | Certification | ISO9001 |
| Brand Name | UCER | Payment Terms | L/C, T/T, D/P, CAD |
| Price | $10.00 - $50.00/ Meter | Delivery Time | 45 work days |
| Product name | Industry Cement Pan Conveyor Chain For Bucket Elevator | Minimum Order Quantity | 50 Meters |
| Structure | Roller Chain |

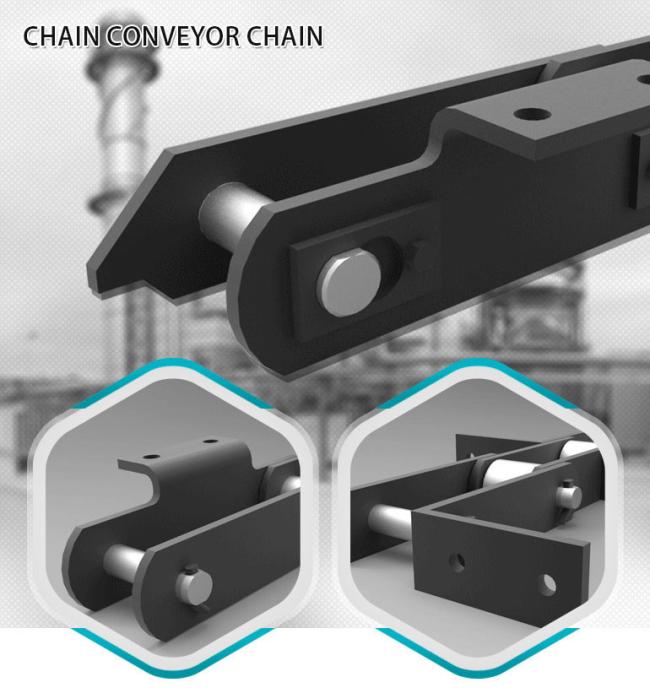

SDBF Industry Cement Pan Conveyor Chain For Bucket Elevator
We are the reckoned manufacturer and trader of superior quality Pan Conveyor Chain. The offered chain is manufactured using quality approved material and advanced technology. This chain is widely applicable for heavy duty services and handling hot clinker in various cement industries. It is efficient enough to cope-up with shock load because it is arranged with locking system which avoid overlapping due to long pitch. Apart from this, the offered chain is fitted with out-board rollers for high strength.
Features:
Sturdiness
Robust construction
Heat resistance
Quick Details
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:M450-250 SDBF
Structure:Roller Chain
Function:Conveyor Chain
Material:ALLOY
Standard or Nonstandard:Standard
conveyor chains name:bucket elevator conveyor chains
conveyor chain type:conveyor chain with attchment
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
conveyor chain pitch:250mm
roller &pin material:40Cr
chain plate material:C45
packaging:standard shipping package

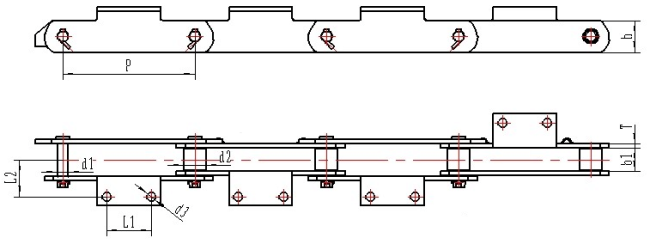

Specification
| Chain NO. |
Pitch P |
Roller diameter d1 |
Width between inner plates b1 |
Pin diameter d2 |
installation dimension L1×L2 |
hole diameter d3 |
Tensile load Q |
|
| S type | F type | |||||||
| mm | KN | |||||||
| M160-250 | 250 | 36 | 70 | 40 | 18 | 124×85 | 18.5 | 160 |
| M224-250 | 250 | 42 | 85 | 44 | 21 | 140×85 | 18.5 | 224 |
| M315-250 | 250 | 50 | 100 | 54 | 25 | 160×85 | 18.5 | 315 |
| M450-250 | 250 | 60 | 120 | 62 | 30 | 180×85 | 18.5 | 450 |
| M630-250 | 250 | 70 | 140 | 68 | 36 | 230×85 | 24 | 630 |
| M315-315 | 315 | 50 | 54 | 25 | 160×85 | 18.5 | 315 | |
| M450-315 | 315 | 60 | 140 | 62 | 30 | 240×105 | 18.5 | 450 |
| M630-315 | 315 | 70 | 68 | 36 | 230×85 | 24 | 630 |
|
