| Price | $10.00 - $70.00/ Meter |
| MOQ | 50 Meters |
| Delivery Time | 45 work days |
| Brand | UCER |
| Place of Origin | CHINA |
| Certification | ISO9001 |
| Model Number | ZYL1500 ZYL2000 |
| Packaging Details | a conveyor chain + a poly bag + individual box + wooden case |
| Payment Terms | L/C, T/T, D/P, CAD |
| Supply Ability | 10000 Meters per Month |
| Standard or Nonstandard | Standard | surface treatment | shot peening |
| Place of Origin | CHINA | chain plate material | 40Cr |
| Packaging Details | a conveyor chain + a poly bag + individual box + wooden case | Color | Black & gray |
| Material | ALLOY | Model Number | ZYL1500 ZYL2000 |
| Supply Ability | 10000 Meters per Month | Certification | ISO9001 |
| Brand Name | UCER | Payment Terms | L/C, T/T, D/P, CAD |
| Function | Conveyor Chain | Heat treatment: | all the chain parts undergo heat treatment |
| Price | $10.00 - $70.00/ Meter | Delivery Time | 45 work days |
| Product name | Double Pitch Conveyor Chain For Stacker Reclaimer | Minimum Order Quantity | 50 Meters |
| conveyor chains name | Large Size conveyor chains for stacker-reclaimer | Structure | Roller Chain |

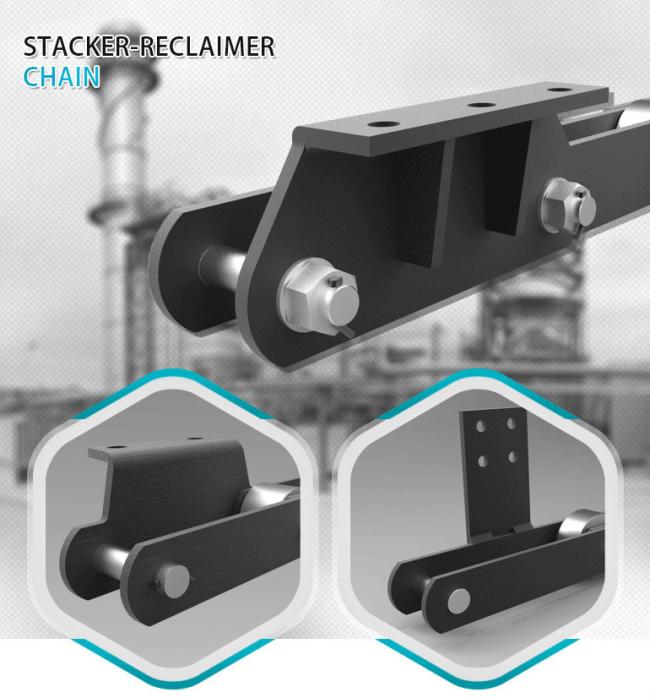

Double Pitch Conveyor Chain For Stacker Reclaimer Heavy Duty Conveyor Chains
Quick Details
Finish:Black, Plain
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:could OEM
Structure:Roller Chain
Function:Conveyor Chain
Standard or Nonstandard:Nonstandard
conveyor chains name:Large Size conveyor chains for stacker-reclaimer
conveyor chain type:large size conveyor chain
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
surface treatment:shot peening
Specification:Customized
chain plate material:40Cr
packaging:wooden box
Material:40Cr

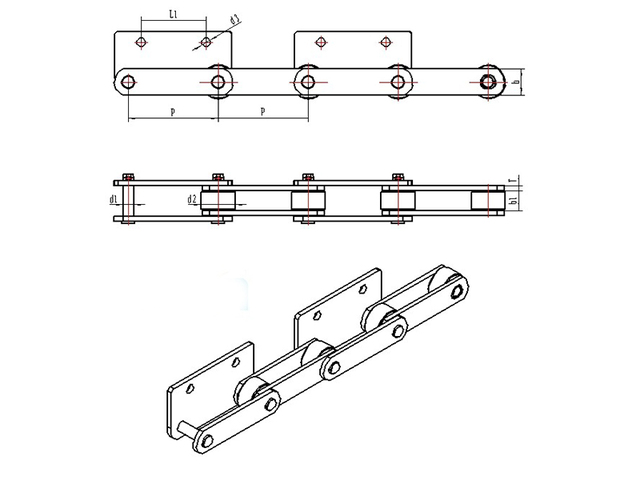

| Chain NO. UCER | Pitch P | Inner link inner width b1 | Roller diameter d2 | Pin diameter d1 | Plate height h | Installation dimension L1 | Hole diameter d3 |
| mm | |||||||
| 1 | 250 | 55.2 | 95 | 28 | 75 | 180 | 25 |
| 2 | 250 | 55.2 | 95 | 28 | 75 | 180 | 25 |
| 3 | 250 | 50 | 70 | 19.7 | 50 | 180 | 21 |
| 4 | 250 | 58 | 80 | 25.5 | 60 | 180 | 21 |
| 5 | 315 | 54.7 | 120 | 36 | 85 | 200 | 25 |
| 6 | 100 | 20 | 36 | 12 | 30 | 28 | 12 |
| D212 | 250 | 55.5 | 70 | 20 | 60 | 190 | 25 |
Packing Delivery Shipping
Packaging Details
Packing: a conveyor chain + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
