| Price | $7.00 - $99.00/ Meter |
| MOQ | 50 Meters |
| Delivery Time | 45 work days |
| Brand | UCER |
| Place of Origin | CHINA |
| Certification | ISO9001 |
| Model Number | JYB-3-800 |
| Packaging Details | a double pitch roller chain + a poly bag + individual box + wooden case |
| Payment Terms | L/C, T/T, D/P, CAD |
| Supply Ability | 10000 Meters per Month |
| Standard or Nonstandard | Standard | Place of Origin | CHINA |
| Packaging Details | a double pitch roller chain + a poly bag + individual box + wooden case | Color | metallochrome |
| Material | ALLOY | Model Number | JYB-3-800 |
| Supply Ability | 10000 Meters per Month | Certification | ISO9001 |
| Brand Name | UCER | Payment Terms | L/C, T/T, D/P, CAD |
| Function | Conveyor Chain | OEM service | accept |
| Type | parking car chain, tranfer bagasse of sugar factory | Price | $7.00 - $99.00/ Meter |
| Delivery Time | 45 work days | Product name | Steel Long Pitch Roller Type Sugar Mill Offset Bar Bagasse Industrial Carrier Conveyor Drag Roller Chain |
| chain name | suger mill conveyor chain | Minimum Order Quantity | 50 Meters |
| Pitch | 50mm | transmission chains pitch | 100-500 mm |
Steel Long Pitch Roller Type Sugar Mill Offset Bar Bagasse Industrial Carrier Conveyor Drag Roller Cranked Link Chain
Quick Details:
Standard or Nonstandard: Standard
Type:parking car chain, tranfer bagasse of sugar factory
Material:ALLOY
Tensile Strength:high tensile strength
Place of Origin:Zhejiang, China
Brand Name:UCER or OEM
chain name:suger mill conveyor chain
OEM service:accept
heat treatment:all the chain parts under go heat treatment
Color:metallochrome
transmission chains pitch:100-500 mm
production maker:China manufacturer
material:stainless steel
size&capacity:pls reference to the form
chain price:best price
Supply Ability: 10000 Meter/Meters per Month
Specification

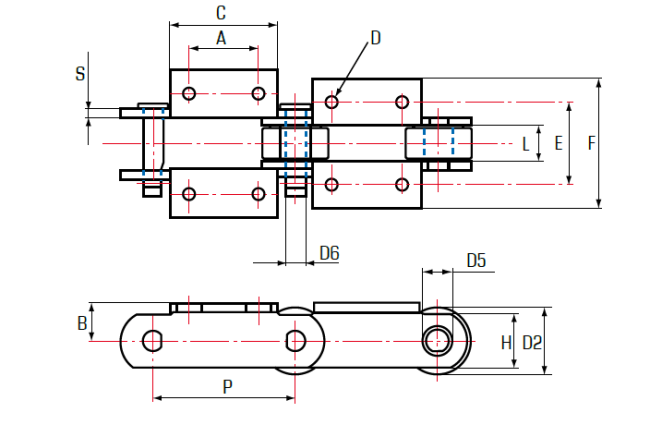

| Chain NO. | Pitch | Roller diameter | Bush diameter | Pin diameter | Between sidebars | Sidebar Height | Sidebar thickness | K2 attachment dimensions | Bolt diameter | Working Lood | Breaking Lood | Weight | |||||
| P | d2 | d5 | d6 | L | H | S | A | B | C | E | F | D | |||||
| JKR0904 | mm | 101.6 | 50.8 | 25.4 | 17.5 | 50.8 | 44.5 | 7.9 | 59.95 | 31.75 | 101.66 | 88.9 | 104.9 | 10 | 2200kg | 18200kg | 13.75kg/m |
| in | 4 | 2 | 1 | 0.69 | 2 | 1.75 | 0.31 | 2.36 | 1.25 | 4 | 3.5 | 4.13 | 0.38 | 4850lb | 40000lb | 9.22lb/ft | |
| JKR2124 | mm | 152.4 | 69.85 | 28.71 | 19.05 | 38.9 | 50.8 | 9.7 | 76.2 | 41.14 | 114.3 | 111.3 | 142.7 | 12.8 | 2750kg | 28636kg | 17.6kg/m |
| in | 6 | 2.75 | 1.13 | 0.75 | 0.53 | 2 | 0.38 | 3 | 1.62 | 4.5 | 4.38 | 5.62 | 0.5 | 6050lb | 6300lb | 11.8lb/ft | |
| JKR09060 | mm | 152.4 | 69.85 | 28.7 | 19.1 | 38.1 | 50.8 | 9.7 | 76.2 | 111.3 | 114.3 | 111.3 | 171.45 | - | 2900kg | 27200kg | 23.8kg/m |
| in | 6 | 2.75 | 1.13 | 0.75 | 1.5 | 2 | 0.38 | 3 | 1.63 | 4.5 | 4.38 | 6.75 | - | 6350lb | 60000lb | 15.96lb/ft | |
| JKR2129 | mm | 228.6 | 82.5 | 33.02 | 19.05 | 37.1 | 57.2 | 9.5 | 101.6 | 44.95 | 152.4 | 146 | 208.7 | 15.24 | 3300kg | 30000kg | 29.65kg/m |
| in | 9 | 3.25 | 1.3 | 0.75 | 1.46 | 2.25 | 0.38 | 4 | 1.77 | 6 | 5.75 | 8.22 | 0.6 | 7275lb | 66000lb | 19.89lb/ft | |
| JKR2315 | mm | 228.6 | 76.2 | 38.1 | 22.4 | 43 | 63.5 | 9.5 | 139.7 | 44.95 | 177.8 | 152.4 | 211 | 13.97 | 3500kg | 32000kg | 25.36kg/m |
| in | 9 | 3 | 1.5 | 0.88 | 1.69 | 2.5 | 0.38 | 5.5 | 1.77 | 7 | 6 | 8.31 | 0.55 | 7700lb | 70400lb | 17lb/ft | |
| JKR09061 | mm | 152.4 | 69.85 | 27.1 | 19.1 | 38.1 | 57.2 | 9.7 | 76.2 | 41.4 | 114.3 | 111.3 | 165.1 | 12.7 | 2900kg | 38600kg | 25.6kg/m |
| in | 6 | 2.75 | 1.13 | 0.75 | 1.5 | 2.25 | 0.38 | 3 | 1.63 | 4.5 | 4.38 | 6.5 | 0.5 | 6350lb | 8500lb | 17.7lb/ft | |
| JKR2178 | mm | 152.4 | 69.85 | 31.08 | 22.4 | 38.9 | 57.15 | 9.65 | 76.2 | 41.4 | 114.3 | 111.3 | 142.7 | 12.7 | 3227kg | 38650kg | 22.8kg/m |
| in | 6 | 2.75 | 1.25 | 0.88 | 1.5 | 2.25 | 0.38 | 3 | 1.62 | 4.5 | 4.38 | 5.62 | 0.5 | 7000lb | 8500lb | 15.3lb/ft | |
| JKR2800 | mm | 203.2 | 88.9 | 38.1 | 25.4 | 45.97 | 69.85 | 12.7 | 82.5 | 55.37 | 127 | 131.5 | 183.4 | 15.74 | 4454kg | 42727kg | 39.1kg/m |
| in | 8 | 3.5 | 1.5 | 1 | 1.81 | 2.75 | 0.5 | 3.25 | 2.18 | 5 | 5.18 | 7.22 | 0.62 | 9800lb | 94000lb | 26.2lb/ft | |
| JKR2198 | mm | 152.4 | 69.85 | 38.1 | 22.4 | 38.1 | 57.15 | 12.7 | 76.2 | 41.14 | 114.6 | 111.3 | 152.4 | 12.7 | 3480kg | 45460kg | 27.1kg/m |
| in | 6 | 2.75 | 1.5 | 0.8 | 1.5 | 2.25 | 0.5 | 3 | 1.62 | 4.5 | 4.38 | 6 | 0.5 | 8300lb | 100000lb | 18.21lb/ft | |
| JKR1796 | mm | 152.4 | 69.85 | 38.1 | 22.4 | 38.1 | 57.2 | 9.7 | 76.2 | 44.4 | 114.3 | 111.3 | 165.1 | 12.7 | 3480kg | 45460kg | 25kg/m |
| in | 6 | 2.75 | 1.5 | 0.87 | 1.5 | 2.25 | 0.38 | 3 | 1.63 | 4.5 | 4.38 | 6.5 | 0.5 | 8300lb | 100000lb | 16.77lb/ft | |
| JKR2801 | mm | 203.1 | 88.9 | 38.1 | 25.4 | 66.3 | 69.85 | 9.7 | 82.6 | 60.5 | 146.1 | 152.4 | 187.55 | 16 | 5409kg | 50900kg | 44.7kg/m |
| in | 8 | 3.5 | 1.5 | 1 | 2.61 | 2.75 | 0.38 | 3.25 | 2.38 | 5.75 | 6 | 7.38 | 0.62 | 11900lb | 112000kg | 30lb/ft | |
| JKR09063 | mm | 152.4 | 76.2 | 31.8 | 23.9 | 38.1 | 63.5 | 9.7 | 76.2 | 44.5 | 114.3 | 111.3 | 153.9 | 12.7 | 3800kg | 63500kg | 18.7kg/m |
| in | 6 | 3 | 1.25 | 0.94 | 1.5 | 2.5 | 0.38 | 3 | 1.75 | 4.5 | 4.38 | 6.06 | 0.5 | 8300lb | 140000lb | 20.2lb/ft | |
| JKR2804 | mm | 203.2 | 108 | 47.63 | 38.1 | 92.5 | 88.9 | 12.7 | 82.6 | 69.9 | 146.1 | 193.5 | 237.2 | 16 | 11045kg | 68200kg | 70.1kg/m |
| in | 8 | 4.25 | 1.88 | 1.5 | 3.64 | 3.5 | 0.5 | 3.25 | 2.75 | 5.75 | 7.62 | 9.34 | 0.62 | 24300lb | 150000lb | 47lb/ft | |
| JKR9066 | mm | 152.4 | 76.2 | 38.1 | 26.9 | 63.5 | 60.5 | 12.7 | 76.2 | 42.9 | 114.3 | 136.7 | 187.55 | 12.7 | 4230kg | 72700kg | 40.7kg/m |
| in | 6 | 3 | 1.5 | 1.06 | 2.5 | 2.38 | 0.5 | 3 | 1.69 | 4.5 | 5.38 | 7.38 | 0.5 | 9300lb | 160000lb | 27.3lb/ft | |
| JKR9065 | mm | 152.4 | 76.2 | 38.1 | 26.9 | 38.1 | 60.5 | 12.7 | 76.2 | 42.9 | 114.3 | 111.3 | 165.1 | 12.7 | 4230kg | 72700kg | 40.7kg/m |
| in | 6 | 3 | 1.5 | 1.06 | 1.5 | 2.38 | 0.5 | 3 | 1.69 | 4.5 | 4.38 | 6.5 | 0.5 | 9300lb | 160000lb | 27.3lb/ft | |
Packing Delivery Shipping
Delivery Details:
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
