| Price | $5.00 - $100.00/ Meter |
| MOQ | 50 Meters |
| Delivery Time | 45 work days |
| Brand | UCER |
| Place of Origin | CHINA |
| Certification | ISO9001:2000 |
| Packaging Details | Sprockets + Big plastic bag + Plywood case + Steel Pallets |
| Payment Terms | L/C, T/T, , D/P, CAD |
| Supply Ability | 10000 Meters per Month |
| Heat treatment | Flame heat treatment | Place of Origin | CHINA |
| Packaging Details | Sprockets + Big plastic bag + Plywood case + Steel Pallets | Material | stainless steel |
| Process | Forging or casting , hobbing | Standard | ANSI |
| Material feature | oil resistant | Supply Ability | 10000 Meters per Month |
| Certification | ISO9001:2000 | Brand Name | UCER |
| Payment Terms | L/C, T/T, , D/P, CAD | OEM service | Accept |
| Price | $5.00 - $100.00/ Meter | Delivery Time | 45 work days |
| Minimum Order Quantity | 50 Meters | Chain sprocket name | roller chain idler sprocket with bearing |
| Tooth Profile | idler gear |

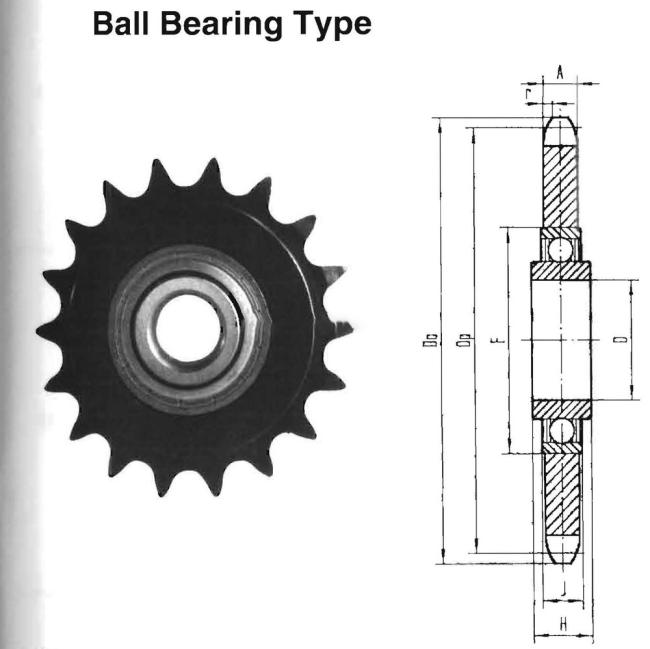

Hardened Teeth High Speed Roller Chain Ball Bearing Idler Sprocket Chain Driven Sprockets
Product description
Process: Raw matrial cutting, Forging, Lathe machining, CNC lathemachining, Gear hobbing,
Heat treatment, Fitter machining, Surface treatment, Package........
Material: C45, 304 Stainless steel, Q235, Q345, A3, 40Cr.......
Standard: European standard, ASA standard, Asian Standard or special size according to
customer's own catalog.
No-standard sprockets according to customer's drawings.
Heat treatment: Flame heat treatment, Induction heat treatment.
Surface treatment: Paint, black-oxide, zinc-plated, chrome-plated, polish......and so on.
Type: Platewheel(type A), Sprocket with hub(type B), Sprocket with double hub(type C), Finsihed
bore sprocket, Taper bore sprocket, Ball bearing idler sprocket, Double sprocket for two
single chain,Double pitch sprocket, Sprocket with split taper bushing, sprocket with QD
bushing.......(simplex, duplex, triplex)
Our advantage:
Competitive price
High quality
Strict production process quality control
Punctual delivery time
Flexible quantity
Good package
Our sprockets are widely used in Textile machine, Chemical machine, Food machine, package machine, logistic equipment, oil equipment, car parking system equipment.........and so on.
Specifications
| Teeth NO. | Catalog NO. | Chain size | D0 | D | H | h1 | Wt. Lbs. |
| 20 | 35BB20H | 35 | 2.60 | 0.638 | 0.72 | 0.168 | 0.38 |
| 17 | 40BB17H | 40 | 2.97 | 0.638 | 0.72 | 0.284 | 0.52 |
| 18 | 40BB18H | 40 | 3.14 | 0.638 | 0.72 | 0.284 | 0.53 |
| 15 | 50BB15H | 50 | 3.32 | 0.638 | 0.72 | 0.343 | 0.75 |
| 17 | 50BB17H | 50 | 3.72 | 0.638 | 0.72 | 0.343 | 0.78 |
| 13 | 60BB13H | 60 | 3.51 | 0.638 | 0.72 | 0.459 | 0.76 |
| 15 | 60BB15H | 60 | 3.98 | 0.638 | 0.72 | 0.459 | 1.06 |
| 12 | 80BB12H | 80 | 4.36 | 0.750 | 0.61 | 0.575 |
1.50 |
Packing Delivery Shipping
Packaging details : a oil field chain + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
Delivery Details:
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
