| Price | $10.00 - $50.00/ Meter |
| MOQ | 50 Meters |
| Delivery Time | 35 work days |
| Brand | UCER |
| Place of Origin | CHINA |
| Certification | ISO9001 |
| Model Number | P80 |
| Packaging Details | a conveyor chain + a poly bag + individual box + wooden case |
| Payment Terms | L/C, T/T, D/P, CAD |
| Supply Ability | 10000 Meters per Month |
| Standard or Nonstandard | Nostandard | Place of Origin | CHINA |
| Packaging Details | a conveyor chain + a poly bag + individual box + wooden case | Color | Black & gray |
| Model Number | P80 | Supply Ability | 10000 Meters per Month |
| Certification | ISO9001 | Brand Name | UCER |
| Payment Terms | L/C, T/T, D/P, CAD | Function | Conveyor Chain |
| Pin material | 40Cr | Heat treatment: | all the chain parts undergo heat treatment |
| Price | $10.00 - $50.00/ Meter | Delivery Time | 35 work days |
| Product name | Welded plate bucket elevator conveyor chain | Minimum Order Quantity | 50 Meters |
| Structure | Welded Chain | Roller type | F flanged rollers type, big roller, small roller |
40Cr pitch 80 welded plate bucket elevator conveyor chain
Preference
Grade:100
Trade size: 3/4"
Material: Iron, Forged

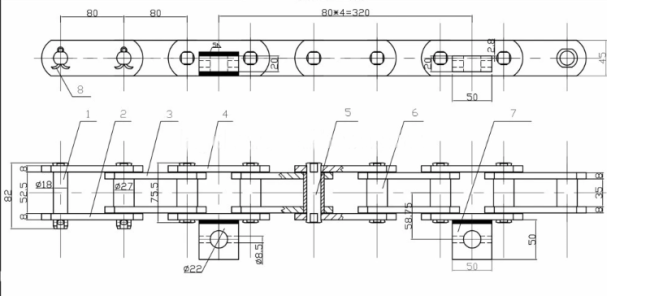

| chain number | pithe P | width between inner pleat b1 | roller diameter d2 | pin diameter d1 | plate height h | plate thickness T | installation dimension L1*L2 | hole diameter d3 |
| mm | ||||||||
| 1 | 170 | 55 | 50 | 26 | 70 | 10 | 60*75 | 13 |
Packing Delivery Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
