| Price | Negotiable |
| MOQ | 100 meters |
| Delivery Time | 10-30 days |
| Brand | UCER |
| Place of Origin | China |
| Certification | Enterprise credit rating AAA |
| Model Number | EP100/EP150/EP200/EP250/EP300 |
| Packaging Details | Iron packing, iron frame or other |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 10000 per month |
| Place of Origin | China | Cloth layer | 2-10 layers |
| Packaging Details | Iron packing, iron frame or other | Color | Black |
| Core material | NN100 | Model Number | EP100/EP150/EP200/EP250/EP300 |
| Supply Ability | 10000 per month | Certification | Enterprise credit rating AAA |
| Brand Name | UCER | Payment Terms | L/C, D/P, T/T |
| Price | Negotiable | Delivery Time | 10-30 days |
| Working surface | 1.5-8mm | Minimum Order Quantity | 100 meters |
| Bandwidth | 300mm | Model | NN100/NN150/NN200/EP100/EP150/EP200 |
| Non-working surface | 0mm-4.5mm | Rib height (mm) | S80 |
Steel Wire Rope Inclined Conveyor Belts For Granular

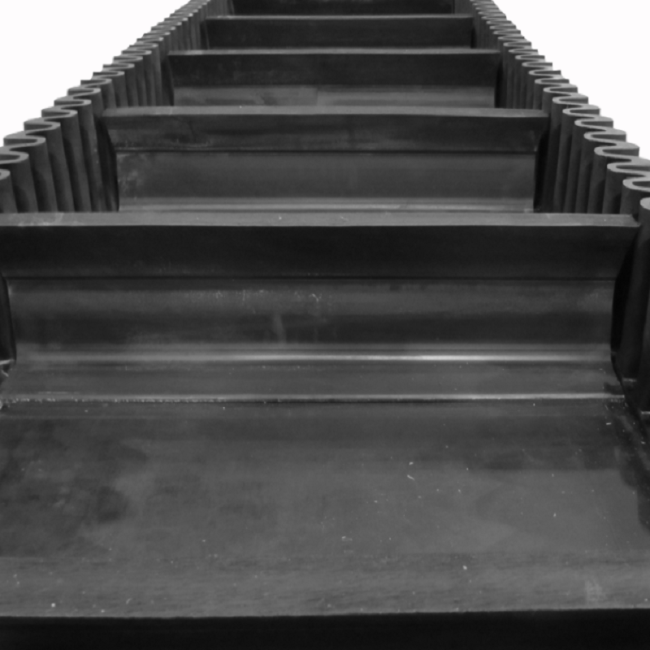

The sidewall conveyor belt is a large inclination corrugated sidewall conveyor belt. The sidewall conveyor belt was first developed by a British company and started to be popularized.
1. The core material of the sidewall conveyor belt:
Cotton canvas core CC-56
Nylon fabric core NN100, NN150, NN200, NN300, NN400, NN500
Polyester fabric core EP100, EP150, EP200, EP300, EP400, EP500
Wire rope core ST1000-ST5400
Rib height (mm): S80, S100, S120, S160, S200, S240, S300, S400, S500
Shelf height (mm): TC75, TC90, TC110, TC140, TC180, TC220, TC280, TC380, TC480
General writing method: such as B800*6 (3+3+1.5)*110 meters
S120-120 TC110-252-460
2. Product features (ordinary large inclination wavy rib conveyor belt):
1) Increase the conveying angle (30~90 degrees);
2) Small footprint and low investment;
3) Large conveying capacity and higher lifting height;
4) Smooth transition from horizontal to inclined (or vertical);
5) Suitable for conveying powdery, granular, small lumps, paste and liquid materials that are easy to scatter;
6) Low energy consumption, simple structure, high tape strength and long service life.
<
| Variety | Standards and main indicators |
| Ordinary steel cord conveyor belt | GB/T9770-2001 |
| Flame-retardant steel cord conveyor belt | MT668-1997 |
| General flame-retardant steel cord conveyor belt | MT668-1997 |
| Heat-resistant steel cord conveyor belt | HG2297-92 |
| Wear-resistant steel cord conveyor belt | Shaoboer wear amount ≤90mm 3 |
| Acid, alkali and oil resistant steel cord conveyor belt | HG4-846 HG4-846 |
| Cold-resistant steel cord conveyor belt | Brittleness temperature -40℃ |
