| Price | Negotiable |
| MOQ | 5 pcs |
| Delivery Time | 5-8 work days |
| Brand | Tain turbo |
| Place of Origin | China |
| Certification | ISO9001:2000 |
| Model Number | GT/VNT 15-25 |
| Packaging Details | Neutral packing |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 1000 pcs per month |
| Place of Origin | China | Packaging Details | Neutral packing |
| Material | Aluminum Block（7075-T6) | Model Number | GT/VNT 15-25 |
| Supply Ability | 1000 pcs per month | Certification | ISO9001:2000 |
| Name | Billet compressor wheel | vehicle | NIissan / Ford / Audi |
| Brand Name | Tain turbo | Payment Terms | T/T, L/C, Western Union |
| Delivery Time | 5-8 work days | Fit turbo | 773098-0002 / 767720-0002 / 769708-0001 |
| Minimum Order Quantity | 5 pcs | Model | GT/VNT 15-25 |
| Certificate | ISO9001:2000 |

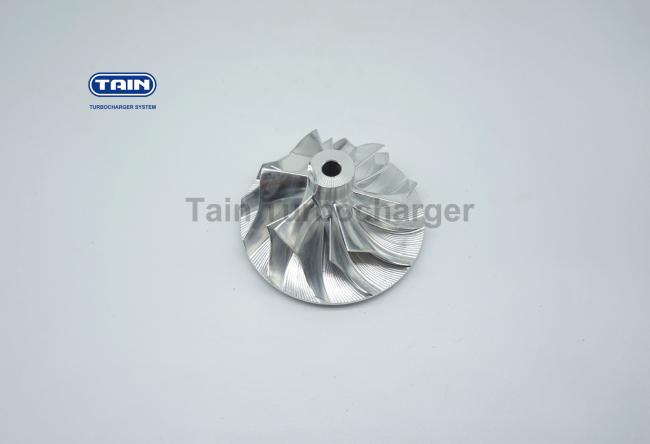

Billet Compressor Wheel
The most popular current upgrade in the Turbocharger world is the use of Billet CompressorWheels.
Billet Compressor wheels or MFS Wheels (Manufactured from Solid) are made from a solid piece of alloy
(billet) . A CNC milling machine machines the wheel from a CAD program automatically from the CAD
design. There are many benefits to this type of wheel manufacture. Billet compressor wheels are far
stronger than a cast wheel due to being machine from a solid piece of material rather than via molten
material. Billet generally has less flaws. This extra strength allows the wheel blades and hub to be
thinner, increasing blade area resulting in increased air flow from a wheel with matching overall
dimensions.
| BLADES | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 6/6 | 41.5 | 56 | 5.2 | 31 | 5.08 |
| Name |
Billet compressor wheels |
|
Fit Turbo |
773098-0002 767720-0002 769708-0001
769708-0002 769708-0003 769708-0004
769708-5004 769701-0001 796122-0001
796122-0005 789773-0018
|
|
MODEL |
GTB2260VK / GTA 2056V / GTB 1756VK |
|
SN NO. |
773098-0002 |
|
MATERIAL |
Aluminum Block |
|
APPLICATION
|
Ford Transit
Nissan Navara / Pathfinder
Audi A4
Fiat Ducato
Peugeot Boxer
|
|
Engine NO. |
7C166K682AC |
PRODUCT SHOW
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
1, We have a professional QC team to control the quality from material to finished products
2, We have advanced equipment to promise the product performance
3, We have over 400 types of turbo chras to meet customers’ requirements
4, We have huge stock to promise the lead time
5, Welcome to inquire,you will receive the feedback within 24 hours
