Glue Free Thermal Bonding Wadding Production Line

Price	negotiation
MOQ	1 SET
Delivery Time	15DAYS AFTER RECEIVIBF DEPOSITE
Brand	HongYi
Place of Origin	CHINA
Certification	CE/ISO
Model Number	2900
Packaging Details	NUDE AND WOODEN CASE
Payment Terms	L/C, T/T, Western Union, MoneyGram
Supply Ability	1 SER 7DAYS

Product Details

Product Specification

Place of Origin	CHINA	Packaging Details	NUDE AND WOODEN CASE
Model Number	2900	Max.width	2000-4000mm
work speed	1-15m/min	Supply Ability	1 SER 7DAYS
Certification	CE/ISO	Name	nonwoven wadding thermal bonding machine for mattress
Brand Name	HongYi	Payment Terms	L/C, T/T, Western Union, MoneyGram
Price	negotiation	Delivery Time	15DAYS AFTER RECEIVIBF DEPOSITE
Capacity	100-250kg/h	Minimum Order Quantity	1 SET
Voltage	220V/380V	Product Width	2.5m-3.2m

Product Description

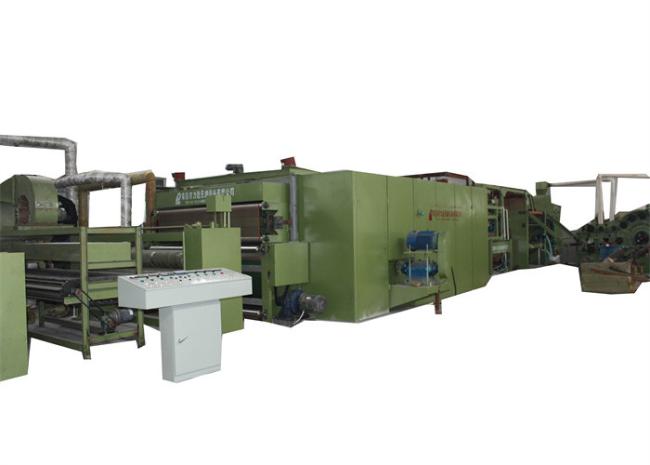

Glue Free Wadding Production Line, Thermal Bonding Wadding Machine

1. Product width: 2400mm

2. Product GSM: 25-125

3. Power: ≈290KW (in fact, when running with 50GSM ES mask cotton, power about 150kw)

4. Capacity: For example 50GSM ES mask cotton, 1.5ton/12hr

5. Main material: polyester,such as PET,PP 1.5~6d length, 31~51mm polyester fiber and ES low-melting-point fiber.

6. Machine making standard: GB/T 17780-1999;JB/T 5438-2008;FZ/T 93105-2018;GB19517-2004 and Relevant national enterprise standards.



    Main
    regulations
    and
    technical
    indexes
    of
    combined
    machines


1. Machine working width: carding machine 1850mm-2500mm, Output width of cross lapper: 3200mm, heating chamber length of thermal bonding oven: 7000mm, winder and cutter: 2600mm

2. Width of final product: 2500mm

3. Weight range of final product: 80-1200gsm

4. Suitable material: 3D-15D*51mm-64mm polyester, polypropylene staple fiber, low melt fiber, coconut fiber, etc.

5. Production capacity: 250kg per hour

6. Electrical control system: the whole production line is controlled by PLC man-machine interface, equipped with touch screen.

It utilizes a servo motor and servo controller system or inverter with web storage and profiling function to keep the web thickness uniformly

Servo motor central controlling system and PLC touch screen interface. this provides high-quality web controlled by computer to ensure quality as well as speed

Bedding furniture, high-quality mattress, wadding

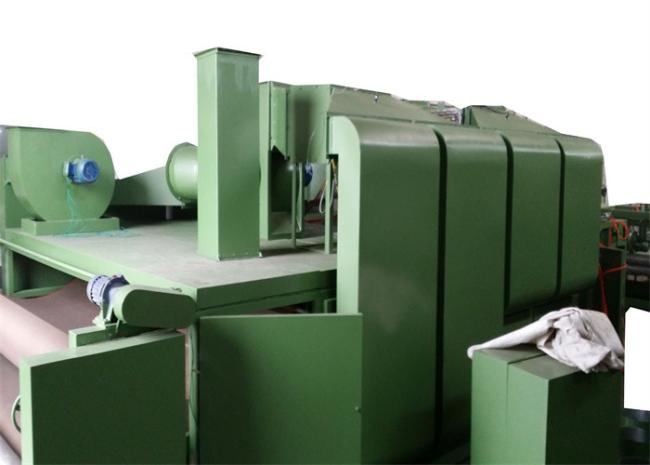

double layer chain board and Teflon coated, upper layer with independent lifting

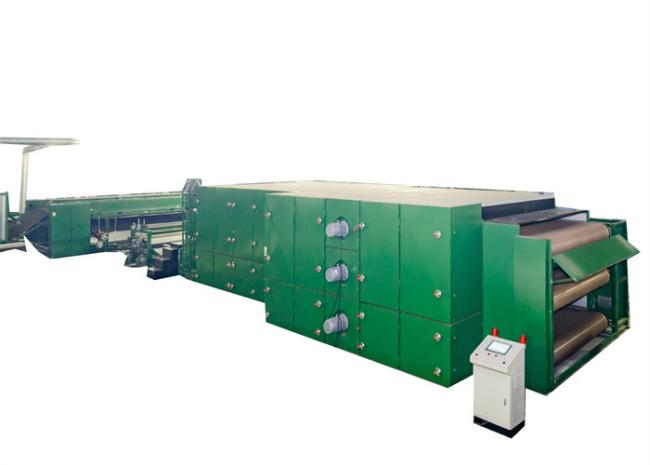

two high-pressure circulation blowers , supreme insulation system to save energy

Raw material	polyester fiber, waste fiber, low melt fiber, etc.
Trim width	2500mm
Weight range	400g/m2-4000g/m2
Production capacity	1000kg/h
Trade term	FOB Shanghai
Payment term	30% T/T advance, 70% paid off before delivery.

Technical parameter

machine width: 2600-3800mm
chamber length: 4800-6000mm
heating method: circulated hot oil direct burning
Capacity :1000KG/H

Trade terms	EXW, FOB, CIF
Leading time	90 days
HS code	84490090
Payment terms	30% deposit, 70% paid off before loading.
Warranty	12 months
After-sale service	The seller is responsible for installation and debugging. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition, the buyers should assign a translator, workers, electrical cable (from machines to control panel and from power to control panel), and tools for installation to cooperate with the work. Installation cost is USD200/Day/engineer and totally installation period is about 30-35 days depending on well cooperation of the buyer.
