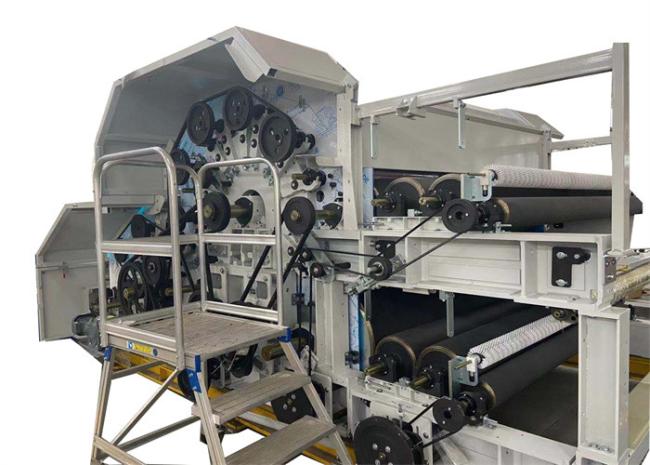

Double Cylinder Nonwoven Polyester Carding Machine

Price	negotiation
MOQ	1 SET
Delivery Time	7DAYS AFTER RECEIVING THE PAYMENT
Brand	HongYi
Place of Origin	CHINA
Certification	CE /ISO9001
Model Number	450PJM
Packaging Details	NUDE OR WOODEN CASE
Payment Terms	T/T, L/C, Western Union, Western Union, MoneyGram
Supply Ability	1 LINE 30 DAYS

Product Details

Product Specification

Speed	Max. 70m/min	Place of Origin	CHINA
Machine Type	Double cylinder double doffer	Packaging Details	NUDE OR WOODEN CASE
Output speed	20-50m/min	Model Number	450PJM
Supply Ability	1 LINE 30 DAYS	Certification	CE /ISO9001
Brand Name	HongYi	Payment Terms	T/T, L/C, Western Union, Western Union, MoneyGram
Working width	1550mm-2500mm	Advantage	High Production Capacity
Price	negotiation	Delivery Time	7DAYS AFTER RECEIVING THE PAYMENT
Minimum Order Quantity	1 SET	Width	1550-3200mm

Product Description

High Quality Advanced Technology Nonwoven Polyester Fabric Carding Machine

The carding machine is used for card the fibers from the cotton feeder to the single fiber web with certain gsm and delivers web to cross lapper.It is widely used for hometextiles, mattress, filter,carpet, geotextiles etc.

Structure

1. Horizontal feeding lattice is PVC lattice, with pressing roller for evenly feeding;

2. Four rollers for feeding with diameter 90mm, anti-metal protection device is used at the input part of the machine, which could test the metal and has auto-stop warning;

3. There are five suits of working roller and stripping roller on main cylinder and four suits of working roller and stripping roller on breast cylinder to card fiber completely and form web evenly;

4. Edge-suction system is equipped and the dust particles will be transferred to special dust cage;

5. Walking platforms are placed on two sides of machine for maintenance.

6. Machine safe guard cover is transparent organic glass.

item	value
Marketing Type	New Product 2020
Automatic Grade	Full-automatic
Voltage	380/440V
Power	40kw
Certification	CE/ ISO9001
Working width	1550mm, 1850mm, 2000mm, 2300mm, 2500mm, 3200mm
Production Capacity	800kg/h
Diameter of cylinder	1230mm, 850mm
Suitable fiber	1.5D-15D*38mm-64mm
Output speed	Maximum 70m/min

Product: soft wadding
Product net width : up to 4500mm(or wider dependent on individual requirement )
Product weight:60-1500g/m2
Product thickness :3-200mm

Pre-Sales Service
* Inquiry and consulting support
* Sample testing support
* View our factory

After-Sales Service
* Training how to install the machine , training how to use the machine
* Engineers available to service machinery overseas
* Warranty :12 months
* Certificate : ISO9001 CE

Trade information
* Payment terms: 30%deposite by TT, LC , Western Union ,Moneygram 70% as balance paid before delivery LC
* Delivery time: Approx 7 working days after receiving the rest payment
* Package: make, wooden case
* Warrantty:12 months
* After-sales service: we will send 2-3 workers to do the installation and commissioning of the line at the request of the buyer . and the buyer should provide round-trip airplane tickets , accommodation, and allowance, the allowance is 70USD /person/day
* HS code:84490090
* MOQ: 1set
