| Price | negotiation |
| MOQ | 1set |
| Delivery Time | 10 working days after received your payment |
| Brand | HongYi |
| Place of Origin | China |
| Certification | ISO9001/CE |
| Model Number | 250HYZCJ |
| Packaging Details | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 3set /month |
| Place of Origin | China | Packaging Details | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Needle density | 2000~8000n/m | Model Number | 250HYZCJ |
| Supply Ability | 3set /month | Needle Stroke | 30-60mm |
| Certification | ISO9001/CE | Brand Name | HongYi |
| Payment Terms | Western Union, L/C, T/T | Stroke type | Up-stroke ; Down-stroke |
| Price | negotiation | Delivery Time | 10 working days after received your payment |
| Capacity | 80-600kg/h | Minimum Order Quantity | 1set |
| Voltage | 380/440V | Width | 1.5m-8m |

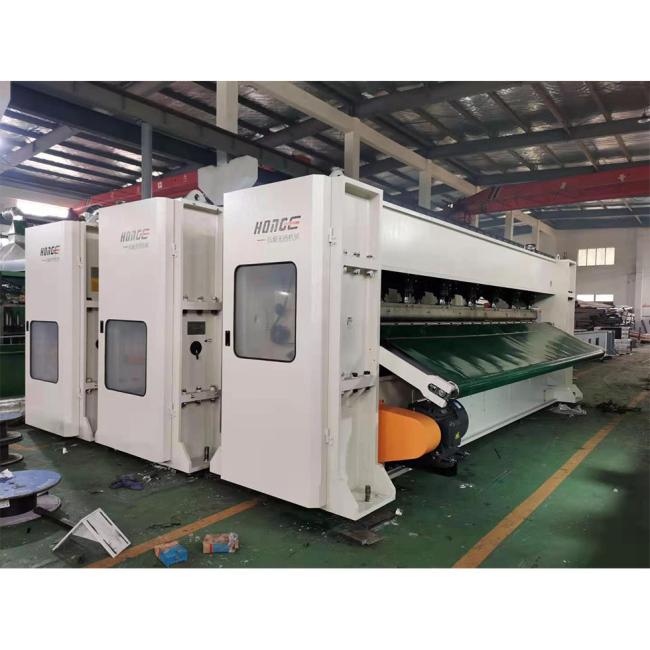

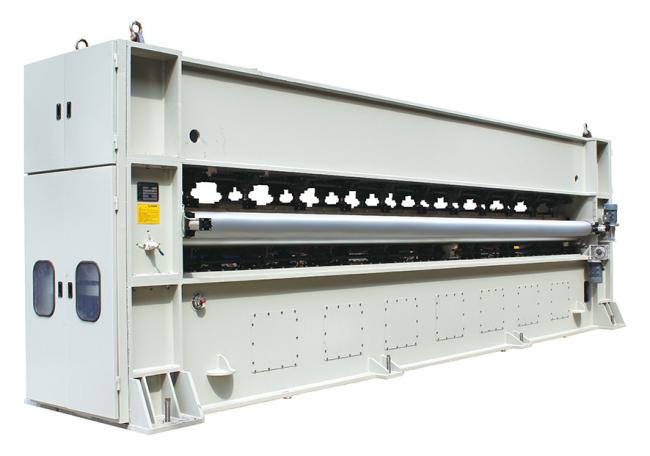

Nonwoven Machine Needle Punching Carpet Production Line & Carpet Making Machine
| 1)Cross Lapper | |
|
Uses and Characteristics:To fold and pave the mesh after carding evenly into certain width and thickness.Then transfer it to next procedure after pressurization. All paving aprons are driven separately for easy adjustment.The reciprocal commutation is controlled by frequency conversion,and the rail is proof against oil leaking.
|
|
| Input apron width | 1700mm |
| Output apron width | 2800mm |
| Lapping speed | ≤45m/min |
| Total power | 4KW |
| 2)Outfit machine | |
|
It can be applied to any synthetic fiber, wool and quilt products of various sizes. It can be matched with non-woven carding machine and quilting machine to form quilt series of processing automatic production lines.
|
|
| Inner width | 2700mm |
| 3)Opening machine | |
| Inner width | 1000mm |
| Mechanical size | 2500mm*2000mm*800mm |
| Out put | 150-180kg/h |
| Power | Motor 0.75kw 4 level one set(Laura feeding cotton) |
| 2.2kw 2level one set (Fan machine use) | |
| 2.2kw 4level one set (Host opening) | |
| 4)Feeding machine | |
| Application | It is mainly used for loosening raw materials, and the cotton can also be combined with the loosening machine through the counterweight, and the middle is transported by the fan. |
| Features | 1. The amount of cotton entered by photoelectric control is basically uniform and the amount of cotton is stable. |
| 2. Adopt the volumetric feeding mechanism to achieve uniform and continuous feeding. | |
| 3. The cotton roller and peeling roller are driven by the constant speed of the motor. | |
| Inner width | 1380mm |
| Out put | 30-80kg/h |
| Power | Motor 1.1kw 4 level one set (Hairy and peeling roller) |
| 1.5kw 4 level one set (Angle nail curtain and Xiaoping curtain) | |
| 5)Carding machine | |
| Inner width | 1550mm |
| Cylinder diameter | φ50mm/φ1020mm/φ1230mm |
| Doffer | Single and double doffer |
| Mechanical size | 3000mm*2500mm*2800mm |
| Out put | 80-150kg/h |
| Power | Motor 0.75kw 4 level one set(Cutter box) |
| 0.75kw 4 level one set (Roller speed adjust) | |
| 1.5kw 4 level one set (Doffer speed adjust) | |
| 5.5kw 4 level one set (Host Cylinder) | |
Characteristics:
|
Trade
term
|
EXW,
FOB,
CFR
|
|
Lead
time
|
90
days
|
|
HS
code
|
84490090
|
|
Payment
term
|
30%
deposit,
70%
paid
off
before
loading
|
|
Warranty
|
12
months
|
|
After
sale
service
|
The
seller
is
responsible
for
installation
and
debugging.
The
buyer
is
responsible
for
the
round-trip
airplane
tickets,
accommodation,
medical
treatment,
safety
and
relative
fees.
In
addition
the
buyers
should
assign
translator,
workers,
electrical
cable
(from
machines
to
control
panel
and
from
power
to
control
panel)
and
tools
for
installation
to
cooperate
with
the
work.
Installation cost is USD200/Day/engineer and totally installation period is about 30-35 days depending on well cooperation of the buyer. |
