| Price | $1-$10 |
| MOQ | 500 |
| Delivery Time | 15-45 days |
| Brand | Antaeus |
| Place of Origin | Hunan,China |
| Certification | / |
| Model Number | AD-I013 |
| Packaging Details | Inner vacuum packaging, outside carton. |
| Payment Terms | T/T or Negotiation |
| Supply Ability | Full Supply |
| key word | Battery Ceramic Electronic Components | Packaging Details | Inner vacuum packaging, outside carton. |
| Bulk Density | 3.6g/cm3-3.9g/cm3 | Thermal Shock Resistance | 250℃ |
| Supply Ability | Full Supply | Max. Use Temp. | 1650℃ |
| Dielectricity constant | 9-9.7 / 1MHz.25℃ | Name | Battery Ceramic Electronic Components Alumina Porcelain Anti Corrosion ISO14001 |
| Minimum Order Quantity | 500 | Chemical ingredients | Al2O3 |
| Flexural strength | 358(52) - 550 Mpa(psix10^3) | Water absorption | 0% |
| Coefficient of thermal expansion | 7.6 - 8.2 / 1X10^-6/℃ | Dielectric strength | 8.3(210) - 8.7(220) / ac-kV/mm(ac V/mil) |
| Place of Origin | Hunan,China | Model Number | AD-I013 |
| Certification | / | Brand Name | Antaeus |
| Payment Terms | T/T or Negotiation | Compressive Strength | 2068(300) - 2600(377) Mpa(psix10^3) |
| Volume Resistivity | >10^13 ohm-cm | ROHS Hardness | ≥85 |
| Price | $1-$10 | Delivery Time | 15-45 days |
| Coefficient of thermal conductivity | 16-30.4 / W/m.K |
Battery Ceramic Electronic Components Alumina Porcelain Anti Corrosion ISO14001

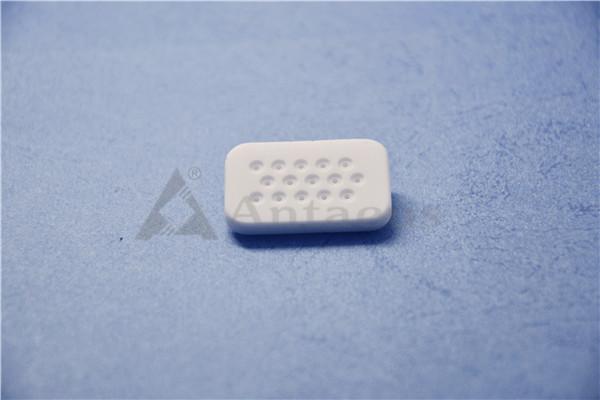

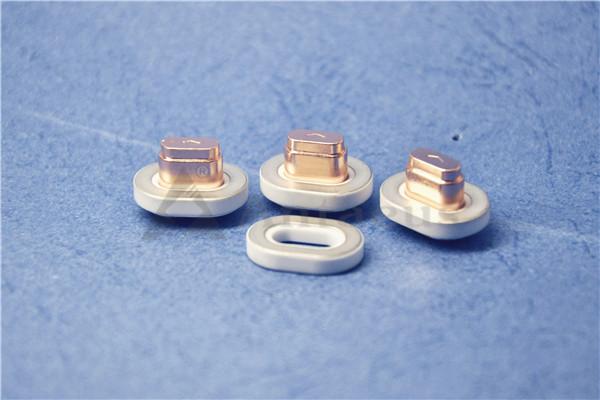

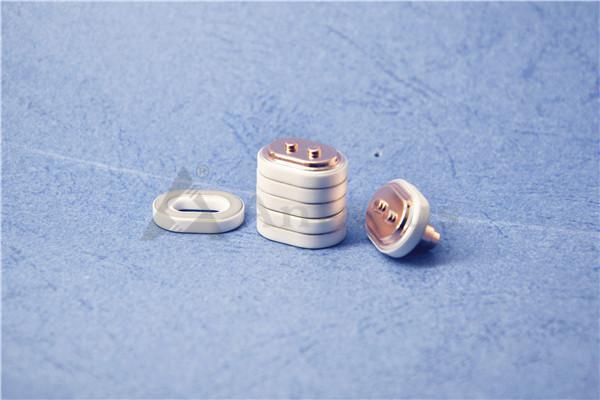

1. Picture:
2. Feature Advantages:
- High precision and good air tightness for sealing
- Easily brazing with kovar and copper components directly
- Outstanding hermetic sealing with hydrogen gas filling, 100% hellium leaking tested
- Good insulation, anti-magnetic, static electricity-free character
- Excellent magnetic quenching capability for high votage and large current
- Excellent thermal shock resistance and good thermal stability
- Outstanding strength and toughness for 200K life cycles
- Complying with CE, CQC, ROHS and REACH regulations
- Reliable quality, Non-toxic, healthy material, Eco friendly
- Professional R&D team is available for your requests of various vacuum ceramic components
3. Material Features / Properties:
| Color | White or Ivory | White or Ivory | White or Ivory | |
| Density | g/cm 3 | 3.82 | 3.9 | 3.92 |
| Hardness | HRA | 83 | 85 | 85 |
| Flexural Strength | Mpa (psi*10 3 ) | 375 | 386 | 381 |
4. Technical Parameters:
| Technical Parameters of Ceramics | ||||||||
| Items | Test Conditions | Unit or Symbol | 99% AL2O3 | 95% AL2O3 | 90% AL2O3 | Zirconia | Steatite | Silicon Carbide |
| Volume Density | -- | g/cm3 | ≥3.70 | ≥3.62 | ≥3.40 | ≥5.90 | ≥2.60 | ≥3.08 |
| Tightness | -- | Pa·m³/s | ≤1.0×10-11 | ≤1.0×10-11 | ≤1.0×10-11 | - | - | - |
| Liquid Permeability | -- | -- | Pass | Pass | Pass | Pass | - | |
| Flexural Strength | - | MPa | ≥300 | ≥280 | ≥230 | ≥1100 | ≥120 | ≥400 |
| Elastic Modulus | - | GPa | - | ≥280 | ≥250 | ≥220 | - | 400 |
| Poisson Ratio | - | - | - | 0.20～0.25 | 0.20～0.25 | - | - | - |
| Thermal Shock Resistance | 800℃( Room Temperature) Cycle: 10 times | Pass | Pass | Pass | - | - | - | |
| Coefficient of Linear Expansion | 20℃～100℃ | ×10-6 K-1 | - | - | - | ≤8 | - | |
| 20℃～500℃ | ×10-6 K-1 | 6.5～7.5 | 6.5～7.5 | 6.5～7.5 | 6.5～11.2 | - | - | |
| 20℃～800℃ | ×10-6 K-1 | 6.5～8.0 | 6.5～8.0 | 6.3～7.3 | - | 4 | ||
| 20℃～1200℃ | ×10-6 K-1 | - | 7.0～8.5 | - | - | - | - | |
| Coefficient of Thermal Conductivity | 20℃ | W/(m·k) | - | - | - | - | - | 90～110 |
| 1000℃ | ||||||||
| Dielectric Constant | 1MHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | ≤7.5 | - |
| 1MHz 50℃ | - | - | 9.0～10 | - | - | - | - | |
| 10GHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | - | - | |
| Volume Resistivity | 100℃ | Ω·cm | ≥1.0×1013 | ≥1.0×1013 | ≥1.0×1013 | - | ≥1.0×1012 | - |
| 300℃ | ≥1.0×1013 | ≥1.0×1010 | ≥1.0×1013 | - | - | - | ||
| 500℃ | ≥1.0×109 | ≥1.0×108 | -- | - | - | - | ||
| Disruptive Strength | D.C | kV/mm | ≥17 | ≥15 | ≥15 | - | ≥20 | - |
| Chemical Durability | 1:9HCl | mg/c㎡ | ≤0.7 | ≤7.0 | - | - | - | - |
| 10%NaOH | mg/c㎡ | ≤0.1 | ≤0.2 | - | -- | - | - | |
| Grain Size | - | μm | - | 3~12 | - | - | - | - |
5. Process Flows:
Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing
6. Application Fields:
New energy vehicles, automotive industry, motorcycles, recreational cars, industrial automation, commercial cars and so on.
7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln
8. Detection Devices:
Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter
9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery
10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service
11. Shipping and Package:
12. Our aimed market:
Loudi Antaeus Electronic Ceramic Co.,Ltd is a full service manufacturer of advanced ceramic components and assemblies to customer specification. Our products include high purity alumina oxide ceramics for new energy vehicles, zirconia and machinable ceramics. Antaeus's focus is on providing cost effective solutions to wear and corrosion problems in a wide range of applications and industries.
We specialize in precision toleranced industrial ceramic components in both prototype and production quantities. Since 2004 Antaeus's advanced ceramics have enabled thousands of customers to solve problems and develop products and processes that would not have been possible with conventional engineering materials.
Antaeus is a leader in providing advanced ceramics solutions for new energy vehicles battery worldwide.Our customer base, which includes many Fortune 500 companies.
Application:
These Advanced technical ceramic components find application in a number of industries, some of them being sealing technology, pumps, wire-drawing, battery/ cell manufacturing, sand-blasting, chemical, electronics, textile, automotive, etc.
Customized are welcome according to your drawings or samples.
FAQs (Frequently Asked Questions)
Q1.
Are
you
a
factory
or
trading
company?
A:
We
are
a
manufacturer
of
over
19
years
of
experience.
Welcome
to
visit
our
factory.Factory
address
is
Loudi
Economy
and
Technological
Development
Zone,Hunan,China.
Q2:
Do
you
send
a
sample
to
check?
A:
Sure,
sample
in
stock
is
free
and
freight
collect.
Q3:
When
can
I
get
the
price?
A:
We
regularly
quote
within
24
hours
after
we
get
your
inquiry.
If
urgent
,Please
call
us
or
chat
online.
Q4:What is your Capacity?
A:300,000
pcs
per
day;
Q5:
Are
the
ceramics
good
quality?
A:We
have
passed
the
complete
quality-control
system
ISO9001,IATF16949,
ISO14001
and
IRIS
certification.
We
have
more
than
200
advanced
testing
equipment
and
instruments,All
the
Alumina
ceramics
are
100%
fully
inspected,including
IQC,
IPQC,
FQC,
and
OQC
process.
Q6:What
is
the
Lead
time?
A: About 15-35 days,according to the quantities required;
Q7:
Is
it
available
to
provide
customized
products?
A:We
can
do
OEM
and
ODM.
Loudi Antaeus Electronic Ceramic Co.,Ltd
Factory address:Loudi Economy and Technological Development Zone,Hunan,China.
Contact person:Alice Deng
Tel:+8615073852630 (wechat)
Mail: alice@andidz.com
Skype: alicedeng0629
