| Price | 0.2-5 |
| MOQ | 500 |
| Delivery Time | 15-45 days |
| Brand | Antaeus |
| Place of Origin | Hunan,China |
| Certification | / |
| Model Number | AD-B005 |
| Packaging Details | Inner vacuum packaging, outside carton. |
| Payment Terms | T/T or Negotiation |
| Supply Ability | Full Supply |
| Thermal Shock Resistance room temperature to 850C | will not burst or leak after five operations | Coefficient of thermal expansion | 8.2 X10^-6/℃ |
| Usage | Alumina Ceramic Gasket | Place of Origin | Hunan,China |
| Shape | Alumina Ceramic O Ring | Packaging Details | Inner vacuum packaging, outside carton. |
| Product Name | Alumina Ceramic Gasket Mechanical Strength Alumina Ceramic O Ring For BYD | Material | 96 95 Alumina Ceramic |
| Model Number | AD-B005 | Supply Ability | Full Supply |
| High Light | Alumina Ceramic Rings / Metallized Ceramic Insulators / Electrical Ceramic Components | Max. Use Temp. | 1650℃ |
| Certification | / | Brand Name | Antaeus |
| Payment Terms | T/T or Negotiation | Compressive Strength | 2600(377) Mpa(psix10^3) |
| ROHS Hardness | ≥89 | Price | 0.2-5 |
| Delivery Time | 15-45 days | Minimum Order Quantity | 500 |
| Flexural strength | 550 Mpa(psix10^3) | Water absorption | 0 |
| Coefficient of thermal conductivity | 17-30.4 W/m.K | Insulation Resistance | 1000M Ω（1000VDC) |

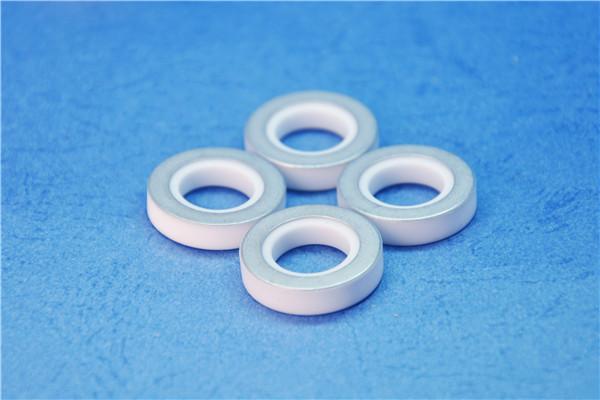

Alumina Ceramic Gasket Mechanical Strength Alumina Ceramic O Ring For BYD
1. Description:
2. Features of alumina ceramic parts:
* Excellent insulation
* High Mechanical Strength
* Outstanding Electrical and Electronic Properties
* Wear Resistance
* Extreme Temperature Stability
* Resistant to Corrosion and Chemical Attack
* Gas and Liquid Tight
3. Material Features / Properties:
| Color | White or Ivory | White or Ivory | White or Ivory | |
| Density | g/cm 3 | 3.82 | 3.9 | 3.92 |
| Hardness | HRA | 83 | 85 | 85 |
| Flexural Strength | Mpa (psi*10 3 ) | 375 | 386 | 381 |
4. Technical Parameters:
| Technical Parameters of Ceramics | ||||||||
| Items | Test Conditions | Unit or Symbol | 99% AL2O3 | 95% AL2O3 | 90% AL2O3 | Zirconia | Steatite | Silicon Carbide |
| Volume Density | -- | g/cm3 | ≥3.70 | ≥3.62 | ≥3.40 | ≥5.90 | ≥2.60 | ≥3.08 |
| Tightness | -- | Pa·m³/s | ≤1.0×10-11 | ≤1.0×10-11 | ≤1.0×10-11 | - | - | - |
| Liquid Permeability | -- | -- | Pass | Pass | Pass | Pass | - | |
| Flexural Strength | - | MPa | ≥300 | ≥280 | ≥230 | ≥1100 | ≥120 | ≥400 |
| Elastic Modulus | - | GPa | - | ≥280 | ≥250 | ≥220 | - | 400 |
| Poisson Ratio | - | - | - | 0.20～0.25 | 0.20～0.25 | - | - | - |
| Thermal Shock Resistance | 800℃( Room Temperature) Cycle: 10 times | Pass | Pass | Pass | - | - | - | |
| Coefficient of Linear Expansion | 20℃～100℃ | ×10-6 K-1 | - | - | - | ≤8 | - | |
| 20℃～500℃ | ×10-6 K-1 | 6.5～7.5 | 6.5～7.5 | 6.5～7.5 | 6.5～11.2 | - | - | |
| 20℃～800℃ | ×10-6 K-1 | 6.5～8.0 | 6.5～8.0 | 6.3～7.3 | - | 4 | ||
| 20℃～1200℃ | ×10-6 K-1 | - | 7.0～8.5 | - | - | - | - | |
| Coefficient of Thermal Conductivity | 20℃ | W/(m·k) | - | - | - | - | - | 90～110 |
| 1000℃ | ||||||||
| Dielectric Constant | 1MHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | ≤7.5 | - |
| 1MHz 50℃ | - | - | 9.0～10 | - | - | - | - | |
| 10GHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | - | - | |
| Volume Resistivity | 100℃ | Ω·cm | ≥1.0×1013 | ≥1.0×1013 | ≥1.0×1013 | - | ≥1.0×1012 | - |
| 300℃ | ≥1.0×1013 | ≥1.0×1010 | ≥1.0×1013 | - | - | - | ||
| 500℃ | ≥1.0×109 | ≥1.0×108 | -- | - | - | - | ||
| Disruptive Strength | D.C | kV/mm | ≥17 | ≥15 | ≥15 | - | ≥20 | - |
| Chemical Durability | 1:9HCl | mg/c㎡ | ≤0.7 | ≤7.0 | - | - | - | - |
| 10%NaOH | mg/c㎡ | ≤0.1 | ≤0.2 | - | -- | - | - | |
| Grain Size | - | μm | - | 3~12 | - | - | - | - |
5. Process Flows:
Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing
6. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln
7. Detection Devices:
Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter
8. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service
9. Shipping and Package:
Loudi Antaeus Electronic Ceramic Co.,Ltd is a full service manufacturer of advanced ceramic components and assemblies to customer specification. Our products include high purity alumina oxide ceramics for new energy vehicles, zirconia and machinable ceramics. Antaeus's focus is on providing cost effective solutions to wear and corrosion problems in a wide range of applications and industries.
We specialize in precision toleranced industrial ceramic components in both prototype and production quantities. Since 2004 Antaeus's advanced ceramics have enabled thousands of customers to solve problems and develop products and processes that would not have been possible with conventional engineering materials.
Antaeus is a leader in providing advanced ceramics solutions for new energy vehicles battery worldwide.Our customer base, which includes many Fortune 500 companies.
Customized are welcome according to your drawings or samples.
FAQs
Q1.
Are
you
a
factory
or
trading
company?
A:
We
are
a
manufacturer
of
over
19
years
of
experience.
Welcome
to
visit
our
factory.Factory
address
is
Loudi
Economy
and
Technological
Development
Zone,Hunan,China.
Q2:
Do
you
send
a
sample
to
check?
A:
Sure,
sample
in
stock
is
free
and
freight
collect.
Q3:
When
can
I
get
the
price?
A:
We
regularly
quote
within
24
hours
after
we
get
your
inquiry.
If
urgent
,Please
call
us
or
chat
online.
Q4:What is your Capacity?
A:300,000
pcs
per
day;
Q5:
Are
the
ceramics
good
quality?
A:We
have
passed
the
complete
quality-control
system
ISO9001,IATF16949,
ISO14001
and
IRIS
certification.
We
have
more
than
200
advanced
testing
equipment
and
instruments,All
the
Alumina
ceramics
are
100%
fully
inspected,including
IQC,
IPQC,
FQC,
and
OQC
process.
Q6:What
is
the
Lead
time?
A: About 15-35 days,according to the quantities required;
Q7:
Is
it
available
to
provide
customized
products?
A:We
can
do
OEM
and
ODM.
Notes:please contact with us for more details freely when you have any inquiry!
