| Price | $15-$60000 |
| MOQ | 1 |
| Delivery Time | 5-8 working days |
| Brand | WINLEY |
| Place of Origin | CHINA |
| Certification | ISO,CE |
| Model Number | S11-500/22 |
| Packaging Details | Plywood case |
| Payment Terms | T/T |
| Supply Ability | 1000unit per month |
| Input voltage | 22KV 33KV | Place of Origin | CHINA |
| Cooling method | KNAN | Packaging Details | Plywood case |
| Material | Copper winding | Standard | IEC ANSI BIL IEEE |
| Model Number | S11-500/22 | Supply Ability | 1000unit per month |
| Certification | ISO,CE | Brand Name | WINLEY |
| Payment Terms | T/T | Price | $15-$60000 |
| Delivery Time | 5-8 working days | Capacity | 500KVA |
| Output voltage | 400V | Minimum Order Quantity | 1 |
| Frequency | 50Hz | Power | Upto 63MVA |
500KVA Oil Type Transformer 22KV 33KV 400V Copper Winding 50Hz
Features
35KV grade S11,SZ11,SFZ11 series products are designed in compliance to IEC60076 and GB1094 “ Power Transformer” and GB/T6451 “Technical Parameters and Requirements for Three-phases Oil-immersed Power Transformers”. The load voltage regulation range covers 35±2*2.5%kV, 35±3*2.5%kv,38.5±3*2.5%kV. The voltage can be regulated manually, electrically or automatically in the specified range by using the load regulation switch on the primary side, so as to guarantee the stability of output voltage. Table-flap type tank is adopted in 35KV transformer of 6300KVA and over, so as to improve the mechanic strength, reduce welding work and provide better appearance. The products are widely used and got good operation economy.

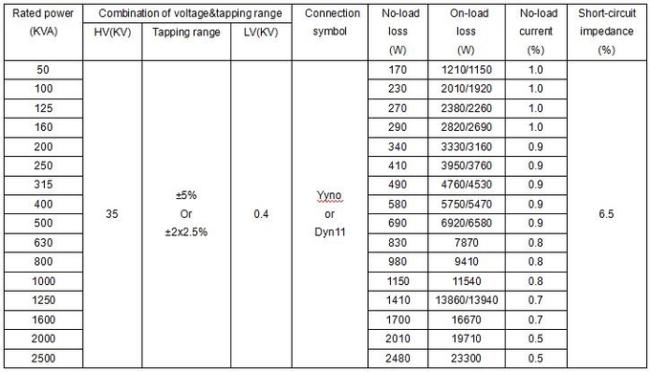

Main data
