12 Inch Legs Horse And Cattle Panels Green Powder Coated Farm Field Tube

Price	USD15-85/Piece
MOQ	50Pieces
Delivery Time	5-7days
Brand	X MESH
Place of Origin	Hebei P.R. China.
Certification	ISO9001:2015
Model Number	X MESH-Metal Farm Fence-003
Packaging Details	Wrapped with plastic film and pallet packing
Payment Terms	L/C, T/T, Western Union, MoneyGram
Supply Ability	5000Pieces/week

Product Details

Product Specification

Legs	12"	Place of Origin	Hebei P.R. China.
Packaging Details	Wrapped with plastic film and pallet packing	Product Name	Tube Panels
Model Number	X MESH-Metal Farm Fence-003	Supply Ability	5000Pieces/week
Feature	Strong & Durable	Certification	ISO9001:2015
Brand Name	X MESH	Payment Terms	L/C, T/T, Western Union, MoneyGram
Series	Green Powder Coated	Type	5 Rails
Packing	Boundle/Wooden Case/Pallet	Price	USD15-85/Piece
Delivery Time	5-7days	Length	10'
Minimum Order Quantity	50Pieces	Tube Size	1.66"
Height	64"	Application	for Farm Field

Product Description

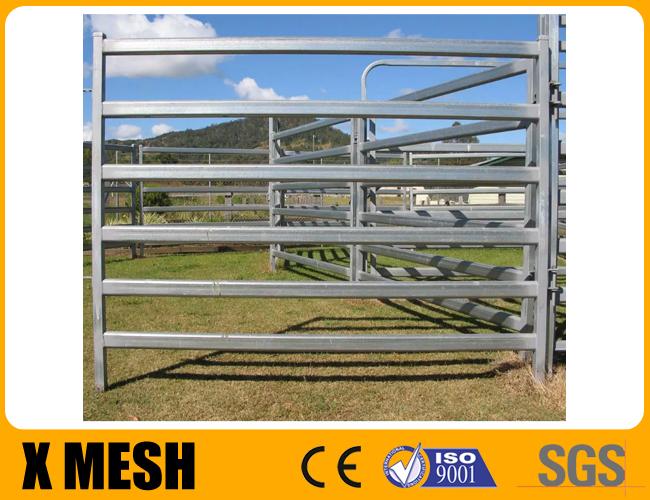

12 Inch Legs Green Powder Coated high 10' Length Farm Field Tube Panels

Tube Panels Introduction:

The 1600 Series Tube Panels are the ideal all-purpose panel for use in portable or permanent situations. The recent change to square corners gives you the flexibility to use these panels for cattle and horses.

Height Overall 64"
Horizontal Rails (6) 1.66" O.D. 16-gauge Tube
Connector Pins 5/8 x 12"
Legs 12"
No. Stays 8', 10' & 12' (1) 14' & 16' (2)

Product Name	Tube Panels
Legs	12"
Tube Size	1.66"
Type	5 Rails
Height	64"
Length	10'
Feature	Strong & Durable
Application	for Farm Field
Series	Green Powder Coated
Packing	Boundle/Wooden Case/Pallet

Tube Panels Specifications:

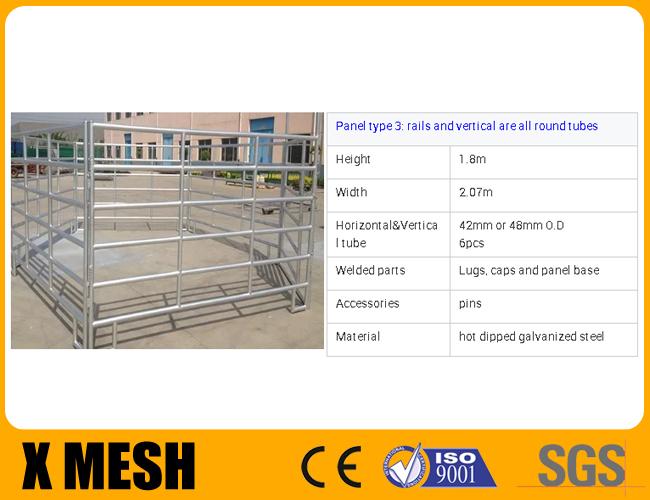

1. Round tube style
Height*Length	1m2.1m,1m2.9m,1.8m*2.1m
Horizontal rails	32mmOD,42mmOD, (6 round rail)
Vertical pipe	32mmOD,42mmOD
Thickness	1.6mm, 2.0mm
Material	pre hot dipped galvanized steel pipe
Accessories	4 lugs, 2 rain caps are welded on panel2 pins are included in 1 panel

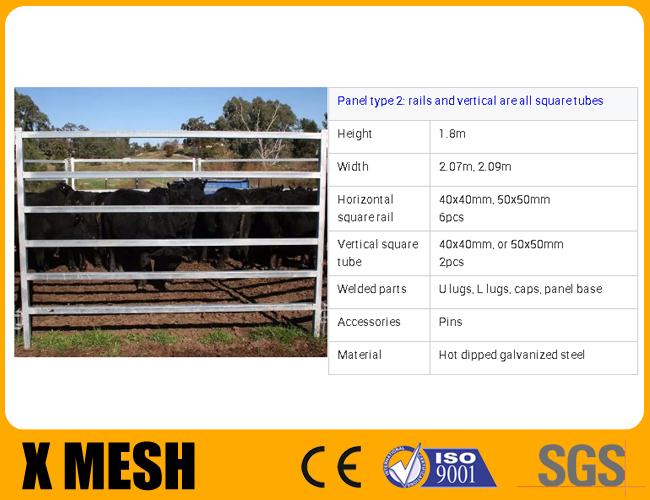

2. Square tube style
Height*Length	1m2.1m,1m2.9m,1.8m*2.1m
horizontal rails	4040mm,5050mm (6 square rail)
vertical pipe	4040mm,5050mm
Thickness	1.6mm, 2.0mm
material	pre hot dipped galvanized steel pipe
Accessories	2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panel2 pins are included in 1 panel

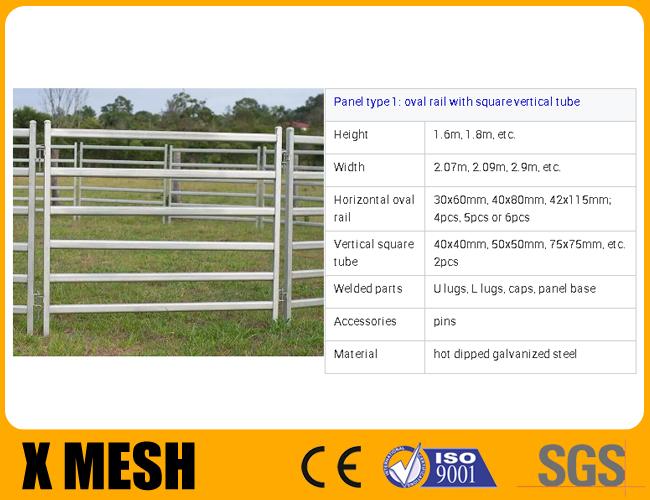

3. Oval rail with square post style
Height*Length	1m2.1m,1m2.9m,1.8m*2.1m
horizontal rails	30x60mm, 40x80mm, 42x115mm,50x70mm (6 oval rail)
vertical pipe	4040mm,5050mm
Thickness	1.6mm, 2.0mm
material	pre hot dipped galvanized steel pipge
Accessories	2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panel2 pins are included in 1 panel
Note: we can custom made according to your request

Tube Panels Feature:

1) Various livestock fence panel products, offer one-stop service for your livestock yard.
2) Long service life: more than 20 years
High quality raw material, strong welding and hot dipped galvanized surface, etc would make panels perfectly finished.
3) Both portable and permanent (panels buried under ground by cement) yard type are available.
4) We are not just manufacturer, but also solution provider.
Could design and check the panels and gates quantity you need according to livestock head.

Tube Panels Application:

Widely used in farming fence of cattle, sheep, horses, rabbits and grassland, pasture and other places of grazing in captivity etc.

Ideal for feed lots, large herd containment and crowding situations, these gates will withstand almost anything your horses or livestock can throw at them. The galvanized finish is ideal for rough elements and inclement weather.

12 Inch Legs Horse And Cattle Panels Green Powder Coated Farm Field Tube

Product Details

Product Specification

Product Description

12 Inch Legs Green Powder Coated high 10' Length Farm Field Tube Panels

Tube Panels Introduction:

The 1600 Series Tube Panels are the ideal all-purpose panel for use in portable or permanent situations. The recent change to square corners gives you the flexibility to use these panels for cattle and horses.

Height Overall 64"

Horizontal Rails (6) 1.66" O.D. 16-gauge Tube

Connector Pins 5/8 x 12"

Legs 12"

No. Stays 8', 10' & 12' (1) 14' & 16' (2)

Product Name

Tube Panels

Legs

12"

Tube Size

1.66"

Type

5 Rails

Height

64"

Length

10'

Feature

Strong & Durable

Application

for Farm Field

Series

Green Powder Coated

Packing

Boundle/Wooden Case/Pallet

Tube Panels Specifications:

1. Round tube style

Height*Length

1m*2.1m,1m*2.9m,1.8m*2.1m

Horizontal rails

32mmOD,42mmOD, (6 round rail)

Vertical pipe

32mmOD,42mmOD

Thickness

1.6mm, 2.0mm

Material

pre hot dipped galvanized steel pipe

Accessories

4 lugs, 2 rain caps are welded on panel2 pins are included in 1 panel

2. Square tube style

Height*Length

1m*2.1m,1m*2.9m,1.8m*2.1m

horizontal rails

40*40mm,50*50mm (6 square rail)

vertical pipe

40*40mm,50*50mm

Thickness

1.6mm, 2.0mm

material

pre hot dipped galvanized steel pipe

Accessories

2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panel2 pins are included in 1 panel

3. Oval rail with square post style

Height*Length

1m*2.1m,1m*2.9m,1.8m*2.1m

horizontal rails

30x60mm, 40x80mm, 42x115mm,50x70mm (6 oval rail)

vertical pipe

40*40mm,50*50mm

Thickness

1.6mm, 2.0mm

material

pre hot dipped galvanized steel pipge

Accessories

2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panel2 pins are included in 1 panel

Note: we can custom made according to your request

Tube Panels Feature:

Tube Panels Application:

Widely used in farming fence of cattle, sheep, horses, rabbits and grassland, pasture and other places of grazing in captivity etc.

Ideal for feed lots, large herd containment and crowding situations, these gates will withstand almost anything your horses or livestock can throw at them. The galvanized finish is ideal for rough elements and inclement weather.
