72A Powder Coated Woven Wire Mesh 1500x2000mm ASTM E2016

ASTM E2016 Standard 72A Material Powder Coated Coal industry Woven Wire Mesh

Woven Wire Mesh Introduction:

Heavy duty Crimped wire mesh are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio.

The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped,

flat mesh, etc.).

•

  Specifications:

• Range of production: 0.5mm to 150mm

• Wire size: 0.3mm to 16mm

• Material: Spring Steel, Stainless Steel, Mild Steel, Copper, Brass

• Edge preparation: K-1, K-2, K-3, K-4, K-5, K-6, K-7 S, U

• Crimp type: double crimp, intermediate, lock crimp

• Weave type: plain dutch weave, plain weave, twill weave, reverse dutch weave, twilled dutch weave, panel, cable, double & triple warp, rectangular, herringbone twill and multiplex

• General sheet size: 1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm.

• Surface finishing: Mill finish, Anti-rust oil spraying, PVC coating

Vibrating screen mesh is widely used in vibrating screen machines to filter and separate sands, gravel, coal, stones, rocks and other wet and dry materials.

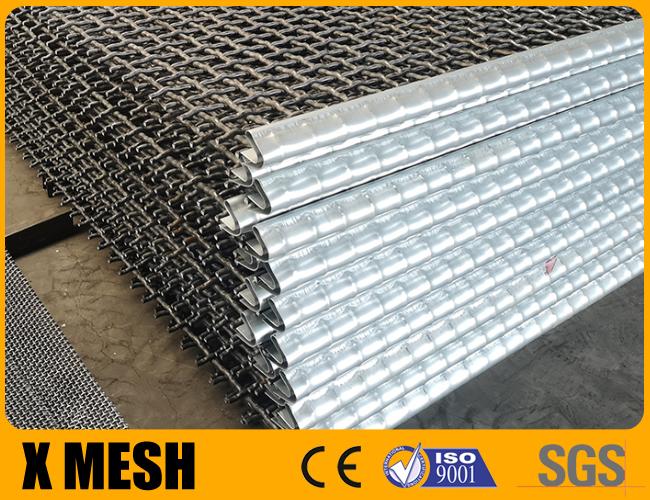

Crimped wire mesh crusher woven wire mesh for mine industry

Woven vibrating screen mesh can be used for screening and separating stones.

A trommel screen with square perforated vibrating screen mesh with some soil in it.

Woven Wire Mesh Standard Specification:

Woven Wire Mesh Material Details:

Woven Wire Mesh Specification:

Woven Wire Mesh Feature:

• Resistant to wear and abrasions

• Highly resistant to heavy impact

• High temperature resistance

• High tensile strength

• Tough design

• Long service life

• Excellent stability

• Improved the separating efficiency

Woven Wire Mesh Application:

• Construction industry

• Metallurgy industry

• Mineral industry

• Agriculture industry

• Plastic industry

• Coal industry

• Chemical industry

Mainly used in food, mining, chemical industry, medicine, petroleum, metallurgy, machinery, protection, construction, handicraft and other industries, but also widely used in packaging nets, barbecue nets, barbecue oven nets, galvanized rolling nets, sintering furnace nets, metal products nets, handicraft nets, vibrating screen nets, basket nets, food machinery nets, cooking utensils nets, wall nets, grain, highway, iron. Network for road and infrastructure.
