Length 3m Woven Stainless Steel Crimped Wire Mesh Panels ASTM A853

Improved the separating efficiency ASTM A853 Standard Woven Wire Mesh

Woven Wire Mesh Introduction:

Chemical composition of 65 manganese steel: C: 0.65 % Si:0.26% Mn: 1.10% P:0.019% S:0.002% Cr:0.02%Ni:0.01% Cu:0.01%(The composition of steel in each furnace is different.)

The specifications of ordinary wire woven mesh can be 1.6mm-20mm, among which 1.6-4mm can be generally made into rolls.Manganese wire woven mesh is generally 4-12mm.12mm-- 20mm generally for thick wire.

The screen of manganese steel mine adopts embedded weaving method, the overlap of longitude and latitude is not prominent, the surface is flat and the force is even.The hardness is HB180-230, with good plasticity and toughness.When subjected to strong impact and friction, the surface produces strong work hardening due to plastic deformation, and the surface hardness can be increased to HRC60 or above, so as to obtain high wear resistance, while the interior still maintains high plasticity and toughness.When the old surface wears away, the new surface will form a layer of wear resistance, durable and long life.

•

  Specifications:

• Range of production: 0.5mm to 150mm

• Wire size: 0.3mm to 16mm

• Material: Spring Steel, Stainless Steel, Mild Steel, Copper, Brass

• Edge preparation: K-1, K-2, K-3, K-4, K-5, K-6, K-7 S, U

• Crimp type: double crimp, intermediate, lock crimp

• Weave type: plain dutch weave, plain weave, twill weave, reverse dutch weave, twilled dutch weave, panel, cable, double & triple warp, rectangular, herringbone twill and multiplex

• General sheet size: 1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm.

• Surface finishing: Mill finish, Anti-rust oil spraying, PVC coating

Vibrating screen mesh is widely used in vibrating screen machines to filter and separate sands, gravel, coal, stones, rocks and other wet and dry materials.

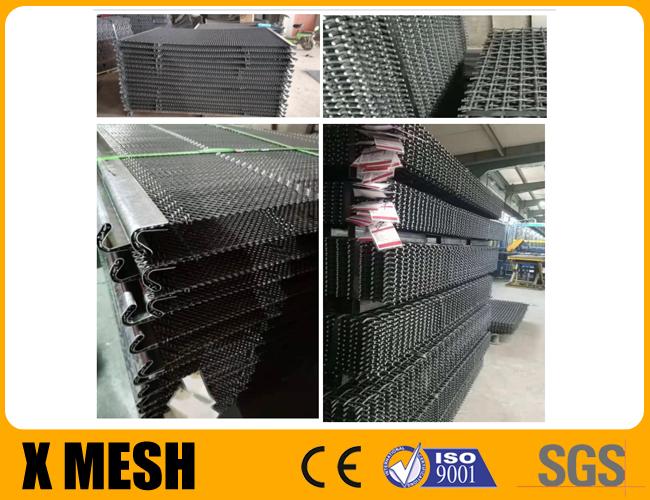

Crimped wire mesh crusher woven wire mesh for mine industry

Woven vibrating screen mesh can be used for screening and separating stones.

A trommel screen with square perforated vibrating screen mesh with some soil in it.

Woven Wire Mesh Standard Specification:

Woven Wire Mesh Material Details:

Woven Wire Mesh Specification:

Woven Wire Mesh Feature:

• Resistant to wear and abrasions

• Highly resistant to heavy impact

• High temperature resistance

• High tensile strength

• Tough design

• Long service life

• Excellent stability

• Improved the separating efficiency

Woven Wire Mesh Application:

• Construction industry

• Metallurgy industry

• Mineral industry

• Agriculture industry

• Plastic industry

• Coal industry

• Chemical industry

it is mainly used in large stone processing, asphalt mixing station, coal mine, metallurgy, chemical industry and other industries.(can be used with various domestic and imported mechanical equipment)
