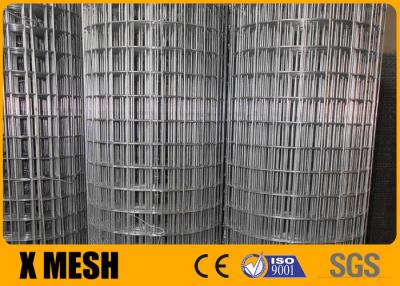

T304 Stainless Steel Welded Mesh Roll 15Ga ASTM A580 For Industry

Price	USD1.85-2.35/m2
MOQ	1000m2
Delivery Time	5-7days
Brand	X MESH
Place of Origin	Hebei P.R. China.
Certification	ISO9001:2015
Model Number	X MESH-0235
Packaging Details	Wrapped with plastic film and pallet packing
Payment Terms	L/C, T/T, Western Union, MoneyGram
Supply Ability	85000m2/week

Product Details

Product Specification

Place of Origin	Hebei P.R. China.	Packaging Details	Wrapped with plastic film and pallet packing
Color	Silver	Material	T304
Standard	ASTM A580	Model Number	X MESH-0235
Supply Ability	85000m2/week	Feature	Extremely versatile
Wire Gauge	15Ga	Certification	ISO9001:2015
Brand Name	X MESH	Payment Terms	L/C, T/T, Western Union, MoneyGram
Packing	Pallet	Price	USD1.85-2.35/m2
Delivery Time	5-7days	Length	30m
Minimum Order Quantity	1000m2	Application	For machine protective covers
Width	2.0m

Product Description

pharmaceutical industry ASTM A580 Standard Material T304 Stainless Steel Welded Mesh

Stainless Steel Welded Mesh Introduction:

This kind of welded wire mesh is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.
Application: Suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills, partitions, machine protection fences, gratings and other construction applications.
Hot dipped zinc coated welded wire mesh is made in accordance to English Standard normally in regard to the production and zinc coating. The finished welded mesh offer flat and uniform surface, firm structure, good integrity. It offers the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.

stainless steel welded mesh

It through the process of automation and sophisticated welding technique. The end product is level and flat, sturdy structure, and
even strength throughout, the netting shows no wear and tear when cutting off a part or under a stress.

6x6 concrete reinforcing welded wire mesh/welded wire mesh sizes

304 STAINLESS STEEL bird cage welded wire mesh roll

1/4" 6" aperture BWG30 stainless steel welded wire mesh costom any size

316L SS 10X10 stainless steel welded wire mesh

Stainless Steel Welded Mesh Specification:

Mesh	BWG	Mesh	Gauge
1'' x 2''	14	25.4mm x 50.8mm	2.10mm
1'' x 2''	15	25.4mm x 50.8mm	1.82mm
1'' x 2''	16	25.4mm x 50.8mm	1.65mm
1'' x 2''	17	25.4mm x 50.8mm	1.47mm
1'' x 1''	14	25.4mm x 25.4mm	2.10mm
1'' x 1''	15	25.4mm x 25.4mm	1.82mm
1'' x 1''	16	25.4mm x 25.4mm	1.65mm
1'' x 1''	17	25.4mm x 25.4mm	1.47mm
1'' x 1''	18	25.4mm x 25.4mm	1.24mm
1'' x 1''	19	25.4mm x 25.4mm	1.06mm
3/4'' x 3/4''	16	19.05mm x 19.05mm	1.65mm
3/4'' x 3/4''	17	19.05mm x 19.05mm	1.47mm
3/4'' x 3/4''	18	19.05mm x 19.05mm	1.24mm
3/4'' x 3/4''	19	19.05mm x 19.05mm	1.06mm
3/4'' x 3/4''	20	19.05mm x 19.05mm	0.88mm
1/2'' x 1''	17	12.7mm x 25.4mm	1.47mm
1/2'' x 1''	18	12.7mm x 25.4mm	1.24mm
1/2'' x 1''	19	12.7mm x 25.4mm	1.06mm
1/2'' x 1/2''	18	12.7mm x 12.7mm	1.24mm
1/2'' x 1/2''	19	12.7mm x 12.7mm	1.06mm
1/2'' x 1/2''	20	12.7mm x 12.7mm	0.88mm
1/2'' x 1/2''	21	12.7mm x 12.7mm	0.81mm
1/2'' x 1/2''	22	12.7mm x 12.7mm	0.71mm
1/4'' x 1/4''	23	6.35mm x 6.35mm	0.63mm
3/8'' x 3/8''	21	9.525mm x 9.525mm	0.81mm

stainless steel wire mesh
Specification in British System width 2' to 7' length 10' to 300'				Packing dia.mm
Mesh	BWG	Mesh	Gauge
1" x 2"	14	25.4mm x 50.8mm	2.10mm	390
1" x 2"	15	25.4mm x 50.8mm	1.82mm	380
1" x 2"	16	25.4mm x 50.8mm	1.65mm	360
1" x 2"	17	25.4mm x 50.8mm	1.47mm	310
1" x 1"	14	25.4mm x 25.4mm	2.10mm	400
1" x 1"	15	25.4mm x 25.4mm	1.82mm	370
1" x 1"	16	25.4mm x 25.4mm	1.65mm	330
1" x 1"	17	25.4mm x 25.4mm	1.47mm	320
1" x 1"	18	25.4mm x 25.4mm	1.24mm	280
1" x 1"	19	25.4mm x 25.4mm	1.06mm	255
3/4" x 3/4"	16	19.05mm x 19.05mm	1.65mm	350
3/4" x 3/4"	17	19.05mm x 19.05mm	1.47mm	330
3/4" x 3/4"	18	19.05mm x 19.05mm	1.24mm	290
3/4" x 3/4"	19	19.05mm x 19.05mm	1.06mm	260
3/4" x 3/4"	20	19.05mm x 19.05mm	0.88mm	240
1/2" x 1"	17	12.7mm x 25.4mm	1.47mm	335
1/2" x 1"	18	12.7mm x 25.4mm	1.24mm	300
1/2" x 1"	19	12.7mm x 25.4mm	1.06mm	265
1/2" x 1/2"	18	12.7mm x 12.7mm	1.24mm	300
1/2" x 1/2"	19	12.7mm x 12.7mm	1.06mm	275
1/2" x 1/2"	20	12.7mm x 12.7mm	0.88mm	250
1/2" x 1/2"	21	12.7mm x 12.7mm	0.81mm	230
1/2" x 1/2"	22	12.7mm x 12.7mm	0.71mm	215
1/4" x 1/4"	23	6.35mm x 6.35mm	0.63mm	215
3/8" x 3/8"	21	9.35mm x 9.35mm	0.81mm	250

Specification List of Welded Wire Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1" x 1"	25.4mmX25.4mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
2" x 3"	50mmx70mm	2.0mm,2.5mm,1.65mm
3" x 3"	75mmx75mm	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"	50mmx100mm	2.11mm,2.5mm
4" x 4"	100mmx100mm	2.0mm,2.5mm
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.

Stainless Steel Welded Mesh Feature:

1.made of high quality steel wire

2.various configurations and sizes

3.used for the loose strata to avoid falling rocks

4.easy installation

5.available in black or hot dip galvanized

• Easily workable
• Solid construction
• Extremely versatile
• Easy to install
• Lightweight
• Low resistance to wind loads
• Available in many styles and materials

Stainless Steel Welded Mesh Application:

Used in mine, oil, chemical industry, food industry, pharmaceutical industry and machine producing.

Industry , Agriculture , Building , Transportation , Mine , Filed , Lawn , Cultivation , Fence Guade , Decorate , Machine Protection and etc.

Stainless Steel Welded Mesh Packing:

Welded wire mesh in panel: are wraped with the shrinked plastic bag then packed in the pallets.
Welded wire mesh in rolI: are by water proof paper then shrinked plastic bag as ou negotiation.
Special packing is ok as your request .

● Each welded wire mesh roll wrapped with water proof paper.
● Welded wire mesh panel is pallets packing or in wooden case.
