Stainless Steel 304 Durawall Truss Mesh In Construction 80000 PSI

Stainless Steel 304 Material bridge reinforcement Block Truss Wire Mesh

Block Truss Wire Mesh Introduction:

Masonry ladder&truss type reinforcement mesh Raw material:low carbon steel wire,stainless steel wire

The mesh can be electro galvanized or hot dip galvanized after welding,it mainly have two type,ladder type and truss type.

The wire diameter is from2.5mm to 6mm.

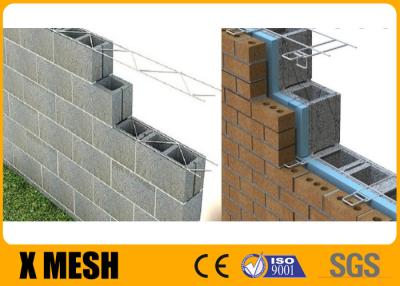

Brick Wall Reinforced Mesh, Used in Building Surface, Wall, Ground and Bridge.

Customized specifications and sizes are accepted.

MATERIAL : Iron wire & stainless steel wire 304/316
Qijie metal joint reinforcement products conform to:
ASTM A951 (Standard Specification for Steel Wire for Masonry
Joint Reinforcement)
Our products pass the testing of ASTM A951,We tested in USA .
Tensile Strength - 80,000 p.s.i. | Yield Point - 70,000 p.s.i. minimum
Zinc Coating:
Mill Galvanized coating: (0.1 oz/ft²)
Hot-Dip Galvanized after fabrication: (1.5 oz/ft²)
Wire Diameter:
9 gauge or 3/16ӯ
Side Rods and Cross Rods available in any combination of the above.
Cross Rods welded 16” O.C.

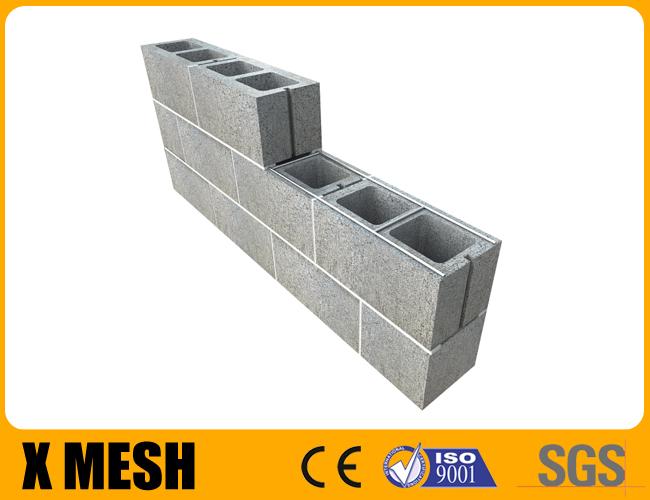

Block Size: Standard Sizes: 4” wall - 16“ wall.
Other widths available on special request.

Block Truss Wire Mesh Standard Specification:

* 4” wall - 16” wall
* Other widths available on special request
* (S) Standard: 9 ga. side rods x 9 ga. cross rods
* (EH) Extra Heavy: 3/16” side rods x 9 ga. cross rods
* (SHD) Super Heavy Duty: 3/16” side rods x 3/16” cross rods

*Tensile Strength - 80,000 psi
*Yield Point - 70,000 psi
