A36 Steel Square Decorative Perforated Metal Screen 2000mm

Price	USD25.80-35.25/Pc
MOQ	50pcs
Delivery Time	5-7days
Brand	X MESH
Place of Origin	Hebei P.R. China.
Certification	ISO9001:2015
Model Number	X MESH-0184
Packaging Details	Wrapped with plastic film and wooden case packing
Payment Terms	L/C, T/T, Western Union, MoneyGram
Supply Ability	9500pcs/week

Product Details

Product Specification

Place of Origin	Hebei P.R. China.	Hole Shape	Square
Packaging Details	Wrapped with plastic film and wooden case packing	Hole Size	25mm
Material	A36 Steel	Model Number	X MESH-0184
Supply Ability	9500pcs/week	Feature	easy maintenance
Open Area	55%	Certification	ISO9001:2015
Brand Name	X MESH	Payment Terms	L/C, T/T, Western Union, MoneyGram
Series	Hot Galvanized	Price	USD25.80-35.25/Pc
Delivery Time	5-7days	Length	2000mm
Minimum Order Quantity	50pcs	Application	For Metallic ceilings

Product Description

long working life Metallic ceilings Square Hole Shape Perforated Metal Mesh

Perforated Metal Mesh Introduction:

1.Material:stainless steel plate,galvanized plate,copper plate,steel plate,aluminum plate

2.Surface treatment:electro galvanized,hot-dipped galvanized,PVC coated,powder coated.

4.characteristics:

1>.various kind of hole patterns.

2>.accurate hole s,bending resistance,corrosion resistance.

3>.easy to process and install,good sound absorption

4>.Durable and long service life.

5>.attractive appearance and wide range of thickness available.

5.application:

Perforated metal is widely used in filter of automobiles internal-combustion engine, sieving of mine, medicine, grain, sound insulation of room, ventilate of grain depot, etc.

stainless steel perforated plate

Concept: stainless steel perforated plate is stainless steel plate, galvanized steel sheet metal plate as raw material,uses the advanced frontal computer numerical control equipment the punch through the mould pressing and become screen products, also known as CNC punching net.

Characteristics of the stainless steel perforated plate :

1. Can be readily formed

2. Easy installation

3. Can be painted or polished and anodizing.

4. The thickness of materials is wide range from 0.3mm-8mm.

5. Largest selection of hole size patterns and configurations

6. Uniform sound abatement(aluminum perforated metal)

7. Attractive appearance,

8. Light weight,

9. Durable

Perforated Metal Mesh Standard Specification:

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	Ø 6	2	1	20	44	0.88
	0.35	Ø 5	4	1	20	24	2
	0.45	Ø 6	3	1	20	35	2.5
	0.8	Ø 3	3	1	20	19.6	3
Flat plate	0.5	Ø 1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	Ø 1.5	1.5	1	2	19.6	5
	0.8	Ø 2.0	3.4	1	2	30.78	4.465
	1.5	Ø 2	2	1	2	19.6	9.4
	1.5	5.0	8.0	1	2	35.39	7.843
	3	Ø 5	16	1	2	19.6	18.8
Stainless steel plate	0.5	Ø 1	1	1	2	19.6	3.14
	0.8	Ø 1.5	1.5	1	2	19.6	5
	1	Ø 2	2	1	2	19.6	6.28
	2	Ø 5	16	1	2	19.6	6.28
Aluminum plate	0.5	Ø 1	1	1	2	19.6	1.08
	0.8	Ø 3	3	1	2	19.6	1.72
	1.6	Ø 2	2	1	2	19.6	3.24
	3	Ø 4	16	1	2	19.6	4.23

Dimention(mm)	Diameter(mm)	Pitch(mm)	Open area	Stocked Item
2000x1000mm	2mm	3mm staggered pitch	40%	yes
2000x1000mm	2.4mm	6.8mm staggered pitch	11%	yes
2000x1000mm	3.2mm	4.8mm/5.6mm/9.6mm staggered pitch	40% 30% 10%	yes
2000x1000mm	4mm	12mm staggered pitch	10%	yes
2000x1000mm	4.8mm	6.4mm/8.4mm/7.9mm staggered pitch	51% 25% 33%	yes
2000x1000mm	6.4mm	11.2mm/8.5mm/9.5mm pitch	25% 50% 40%	yes
2000x1000mm	8mm	9.5mm/10mm/11.1mm/19.2mm staggered pitch	62% 58% 47% 16%	yes
2000x1000mm	9.5mm	12.7mm/14.3mm/18.9% staggered pitch	51% 40% 20%	yes
2000x1000mm	12.7mm	17.3mm/22.9mm staggered pitch	49% 24%	yes
2000x1000mm	15mm	25mm staggered pitch	33%	yes
2000x1000mm	19mm	25.4mm staggered pitch 25.4mm straight pitch	51% 44%	yes
2000x1000mm	25.4mm	35mm staggered pitch 35mm straight pitch	48% 41%	yes
2000x1000mm	40mm	50mm staggered pitch	58%	yes
2000x1000mm	70mm	100mm staggered pitch	44%	yes

Perforated Metal Mesh Advantage:

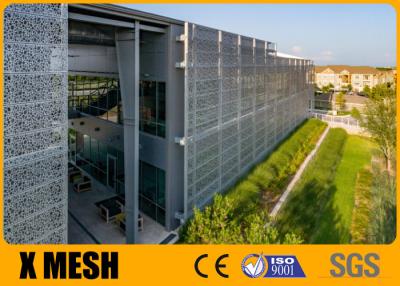

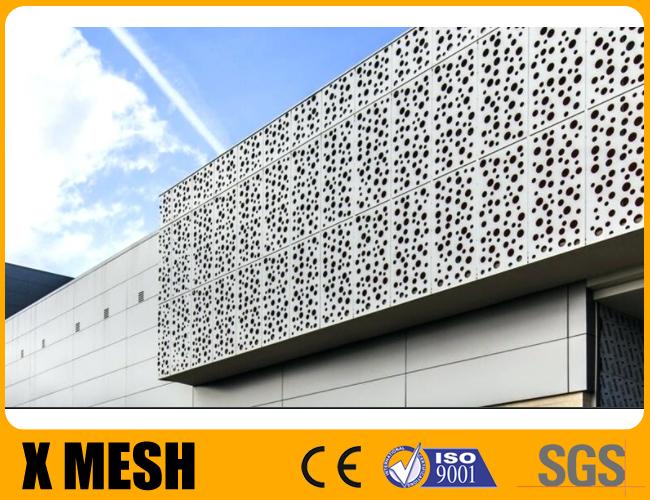

1)Used as decorative mesh for building outer wall

2)Visibility and colorful

3)Rainstorm or insolation won`t hurt

4)Aluminum won`t get rusty

5) Anti-corrosive

6)Weight is light enough for outer wall hanging

Perforated Metal Mesh Packing & Shipping:

Packaging Details: Pallet or with plastic film inside of art product perforated metal mesh

Perforated Metal Mesh Application:

Widely used in the core of filter, medicine, filtering, breeding, battery, mechanical protecting, making the crafts, the meshes for the high-grade sound box, decoration, the seating for children, baskets, etc.

A36 Steel Square Decorative Perforated Metal Screen 2000mm

Product Details

Product Specification

Product Description

long working life Metallic ceilings Square Hole Shape Perforated Metal Mesh

Perforated Metal Mesh Introduction:

1.Material:stainless steel plate,galvanized plate,copper plate,steel plate,aluminum plate

2.Surface treatment:electro galvanized,hot-dipped galvanized,PVC coated,powder coated.

4.characteristics:

1>.various kind of hole patterns.

2>.accurate hole s,bending resistance,corrosion resistance.

3>.easy to process and install,good sound absorption

4>.Durable and long service life.

5>.attractive appearance and wide range of thickness available.

5.application:

Perforated metal is widely used in filter of automobiles internal-combustion engine, sieving of mine, medicine, grain, sound insulation of room, ventilate of grain depot, etc.

stainless steel perforated plate

Concept: stainless steel perforated plate is stainless steel plate, galvanized steel sheet metal plate as raw material,uses the advanced frontal computer numerical control equipment the punch through the mould pressing and become screen products, also known as CNC punching net.

Characteristics of the stainless steel perforated plate :

1. Can be readily formed

2. Easy installation

3. Can be painted or polished and anodizing.

4. The thickness of materials is wide range from 0.3mm-8mm.

5. Largest selection of hole size patterns and configurations

6. Uniform sound abatement(aluminum perforated metal)

7. Attractive appearance,

8. Light weight,

9. Durable

Perforated Metal Mesh Standard Specification:

Plate Material

Thickness of Metal (mm)

Hole Dia. (mm)

Pitch (mm)

Sheet Width (m)

Sheet Length (m)

Porosity (%)

Weight (kg/m2)

Rolling plate

0.2

Ø 6

2

1

20

44

0.88

0.35

Ø 5

4

1

20

24

2

0.45

Ø 6

3

1

20

35

2.5

0.8

Ø 3

3

1

20

19.6

3

Flat plate

0.5

Ø 1

1

1

2

19.6

3.14

0.55

1.1

2.2

1

2

22.67

Plate
Material

Thickness of
Metal (mm)

Hole
Dia. (mm)

Pitch
(mm)

Sheet
Width (m)

Sheet
Length (m)

Porosity
(%)

Weight
(kg/m2)

Rolling
plate
