KxT Brown Vinyl Coated Chain Link Fence

Product Details

Brown Vinyl KxT Selvage residential ASTM F668 Standard chain link mesh fencing

chain link mesh fencing Introduction:

chain link mesh fencing, Although galvanized silver chain link fences are very popular, many customers have chosen color chain link fence systems to accentuate siding, roofing, and trim colors on houses and businesses. There are two types of vinyl coating(PVC coating) based on the thickness: extruded and adhered and fused and bonded. Dark green(RAL 6005) chain link fence is the most popular one among a lot of colors. Extruded and bonded chain link, always refer to as 'heavy' vinyl chain link fence is also an option.

Extruded vinyl coated chain link fence is by far the most popular kind of chain link fence available in colors. It is typically the least expensive too. However, some quality conscious customers also prefer fused and bonded fence fabric.

chain link mesh fencing Physical Properties:

chain link mesh fencing Specification:

A typical specification list for 9 gauge chain link fence fabric

1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;

2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm).

chain link mesh fencing packaging:

1.Woven bags of the above and bottom, high quality package or as customers requested.
2.In roll, waterproof paper in side and our side with weave bag; carton; wooden case; pallet.
3. According to client's requirement.

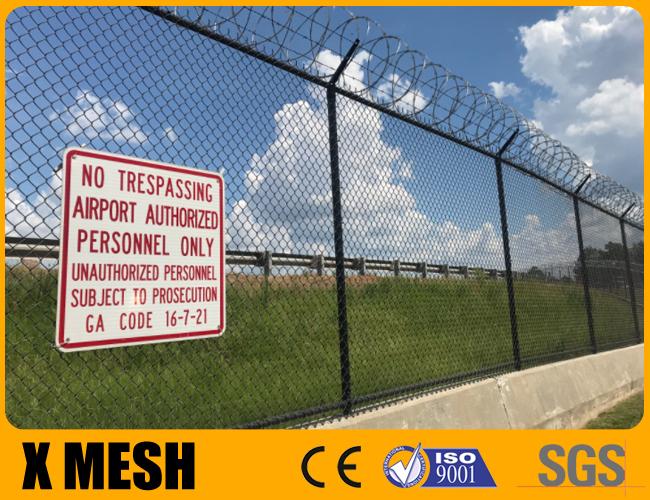

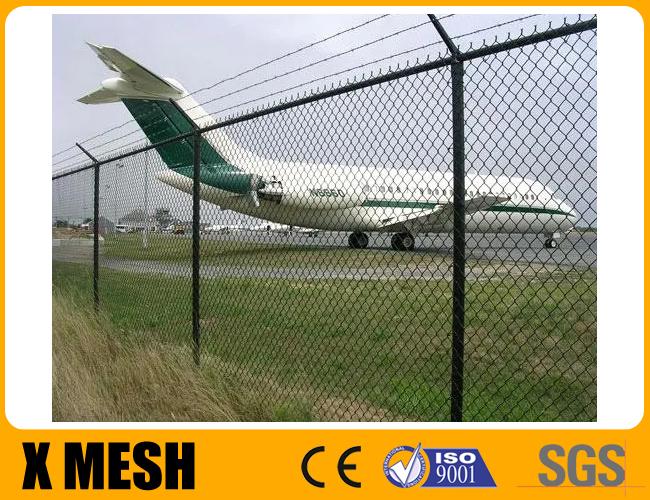

chain link mesh fencing Application:

chain link mesh fencing has many applications including residential housing fences, building site and factory enclosures, sporting field enclosures, temporary fencing, internal factory partitions and more.chain link mesh fencing has many applications including residential housing fences, building site and factory enclosures, sporting field enclosures, temporary fencing, internal factory partitions and more.

KxT Brown Vinyl Coated Chain Link Fence

Product Details

Brown Vinyl KxT Selvage residential ASTM F668 Standard chain link mesh fencing

chain link mesh fencing Introduction:

Extruded vinyl coated chain link fence is by far the most popular kind of chain link fence available in colors. It is typically the least expensive too. However, some quality conscious customers also prefer fused and bonded fence fabric.

chain link mesh fencing Physical Properties:

Nominal coated

wire diameter

Available variance

Zinc coating weight, min.

Breaking strength minimum

Class 1

Class 2

ga

inch

mm

inch

mm

oz/ft2

g/m2

oz/ft2

g/m2

lbf

Newtons

6

0.192

4.88

+/- 0.005

+/-0.13

1.20

366

2.00

610

2,170

9,650

9

0.148

3.76

+/- 0.005

+/-0.13

1.20

366

2.00

610

1,290

5,740

11

0.120

3.05

+/- 0.005

+/-0.13

1.20

366

x

x

380

1,690

chain link mesh fencing Specification:

A typical specification list for 9 gauge chain link fence fabric

PVC Coated Chain Link Fence - 9 Gauge

PVC Coated 9 gauge *Colors depicted not exact

Size (Mesh x Gauge x Height)

Ends

Weight Per 50'

2 x 9 x 36

KxK

53 lbs

2 x 9 x 42

KxK

63 lbs

2 x 9 x 48

KxK

70 lbs

2 x 9 x 60

KxK

88 lbs

2 x 9 x 72

KxB

Breaking strength
minimum

PVC Coated
9 gauge

*Colors depicted not exact

Size
(Mesh x Gauge x Height)

Weight
Per 50'

1.Woven bags of the above and bottom, high quality package or as customers requested.
2.In roll, waterproof paper in side and our side with weave bag; carton; wooden case; pallet.
3. According to client's requirement.
