4 Inch X 4 Inch Apeature 3mm Galvanised Wire Mesh 4 Feet By 8 Feet
China 4 Inch X 4 Inch Apeature 3mm Galvanised Wire Mesh 4 Feet By 8 Feet for sale
China 4 Inch X 4 Inch Apeature 3mm Galvanised Wire Mesh 4 Feet By 8 Feet for sale
  1. China 4 Inch X 4 Inch Apeature 3mm Galvanised Wire Mesh 4 Feet By 8 Feet for sale
  2. China 4 Inch X 4 Inch Apeature 3mm Galvanised Wire Mesh 4 Feet By 8 Feet for sale
  3. China 4 Inch X 4 Inch Apeature 3mm Galvanised Wire Mesh 4 Feet By 8 Feet for sale

4 Inch X 4 Inch Apeature 3mm Galvanised Wire Mesh 4 Feet By 8 Feet

Price USD1.85-2.35/m2
MOQ 1000m2
Delivery Time 5-7days
Brand X MESH
Place of Origin Hebei P.R. China.
Certification ISO9001:2015
Model Number X MESH-0302
Packaging Details Wrapped with plastic film and pallet packing
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 85000m2/week

Product Details

Product Specification

Place of Origin Hebei P.R. China. Packaging Details Wrapped with plastic film and pallet packing
Color Light Silver Product welded wire mesh sheets
Material SS316 Model Number X MESH-0302
Aperture 1'' x 1'' Supply Ability 85000m2/week
Wire Gauge 15# Feature Uniform mesh
Certification ISO9001:2015 Brand Name X MESH
Payment Terms L/C, T/T, Western Union, MoneyGram Packing Waterproof pater and platic film
Price USD1.85-2.35/m2 Delivery Time 5-7days
Length 100' Minimum Order Quantity 1000m2
Height 48" Application For Machinery protection

Product Description

welded wire mesh sheets panels with 4 Inch x 4 Inch Apeature And 4 Feet by 8 Feet





welded wire mesh sheets Introduction:

Stainless steel welded wire mesh is strong and long lasting. The wire itself is extremely resistant to rust, corrosion and harsh chemicals. TIANHUI Stainless Steel Welded Wire Mesh is available in both rolls and panels , Ready for immediate dispatch,our in-stock range of Stainless Steel welded wire mesh is the perfect solution for architectural and industrial specifications. It is used extensively in pharmaceutical industries, food and catering industries as well as in health care, construction and automotive industries. Typical applications include: vent guards, de-greasing baskets, cooling trays & bakery baskets and gabions etc.



welded wire mesh sheets Specification:



Specification:

The WD-278 is a square repeating ornamental welded wire mesh pattern consisting of 2 wires every 6 inches. A Standard 48”x96” panel consists of 8 patterns by 16 patterns. A standard 60”x120” panel consists of 10 patterns by 20 patterns.



PERCENT OPEN:87.60%

OVERALL THICKNESS:0.384 inches

ASPECT RATIO:1.00:1

WEIGHT:0.79 lbs./sq. ft.

OPENING LIMITATION:3.808 inches

PANEL SIZES:48”x96" and 60”x120”



Stainless Steel Welded Wire Mesh Panels Common Used Specification List

Mesh Opening

Wire Diameter (mm)

Panel Size

In inch

In metric unit (mm)





1/2"x1/2"

12.7mm x 12.7mm

1.0mm-2.0mm

-

1" x 1"

25.4mm x 25.4mm

1.5mm-2.5mm

3'x6' 4'x8',5'x10',6'x12' 7'x15',1mx2m,1.5mx3m,2mx4m and customized

1-1/2" x 1-1/2"

38.1mm x 38.1mm

2.0mm-5.0mm



2" x 2"

50.8mm x 50.8mm

2.0mm-6.0mm



3"x3"

76.2mm x 76.2mm

3.0mm-7.0mm



4"x4"

101.6mm x 101.6mm

3.0mm-8.0mm



5"x5"

127mm x 127mm

4.0mm-9.0mm



6"x6"

152.4mm x 152.4mm

4.0mm-10.0mm



3"x6"

76.2mm x 152.4mm

4.0mm-9.0mm



4"x6"

101.6mm x 152.4mm

4.0mm-9.0mm



Notes: other specification can also be made according to request



T-304 Stainless Steel – Standard Chemical Composition (in %)

Alloy

Carbon [C]

Manganese [Mn]

Phosphorus [P]

Sulfur [S]

Silicon [Si]

Chromium [Cr]

Nickel [Ni]

Iron [Fe]

Others, if Applicable

T-304 SS

0.08 Max

2.0 Max

0.045 Max

0.03 Max

1.00 Max

18.00–20.00

8.00–10.50

Balance

Nitrogen [N] = 0.10 Max



T-316 Stainless Steel – Standard Chemical Composition (in %)

Alloy

Carbon [C]

Manganese [Mn]

Phosphorus [P]

Sulfur [S]

Silicon [Si]

Chromium [Cr]

Nickel [Ni]

Iron [Fe]

Others, if Applicable

T-316

0.08 Max

2.00 Max

0.045 Max

0.03 Max

1.00 Max

16.00–18.00

10.00–14.00

Balance

Mo = 2.00-3.00, N = 0.10 Max

welded wire mesh sheets Feature:



  • Extra long lifetime, lasting years longer than Galvanized Before Weld products

  • Extreme strength, durability and resistance to rust, corrosion and harsh chemicals

  • Lowest long-term cost of ownership in harsh conditions (higher initial cost is offset by lower frequency of repair and replacement)

  • Ideal for hard-to-access areas where rust and corrosion are factors



welded wire mesh sheets Application:

· Infill panel & railing systems

· Industrial fan & machine guards

· Security enclosures

· Animal retention (cages)

· Small critter control

· Decorative signage

· Room dividers

· Wall cladding

· Ceiling panels

· Air vents & soffit screens

· Basket fabrication

· Food applications

· Racking & storage

· Aviary & bird screen

· Industrial separation

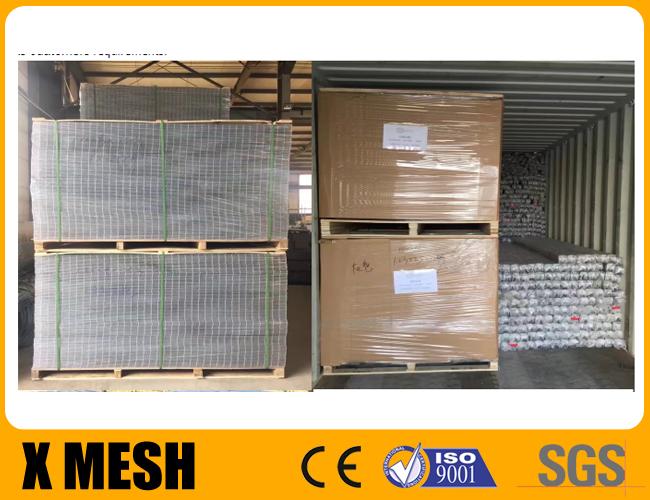

welded wire mesh sheets Packing:

Welded wire mesh in panel: are wraped with the shrinked plastic bag then packed in the pallets.
Welded wire mesh in rolI: are by water proof paper then shrinked plastic bag as ou negotiation.
Special packing is ok as your request .



● Each welded wire mesh roll wrapped with water proof paper.
● Welded wire mesh panel is pallets packing or in wooden case.
