| Price | USD10-USD20/SQM |
| MOQ | 10pieces |
| Delivery Time | 8-15 workdays |
| Brand | VELP |
| Place of Origin | Hebei,China. |
| Certification | SGS |
| Model Number | 01 |
| Packaging Details | safety belts+pvc film+iron pallet |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000 pieces per month |
| Usage | Protection,ladder rung /stair /walkway | Place of Origin | Hebei,China. |
| Packaging Details | safety belts+pvc film+iron pallet | Hole shape | Round,Diamond,custmoized. |
| Material | aluminum,Stainless Steel,galvanized sheet. | Model Number | 01 |
| Supply Ability | 20000 pieces per month | Feature | Corrosion Resistance,Beautiful,Acid-resisting,Easy install and long life |
| Certification | SGS | Surface treatment | Hot dip galvanized,galvainzed,powder coated. |
| Brand Name | VELP | Payment Terms | L/C, T/T |
| Thickness | 5mm-15mm ,customized | Price | USD10-USD20/SQM |
| Delivery Time | 8-15 workdays | Product name | Diamond Hole Shape Stair Treads in Grip Strut Steel Safety Grating For Anti Slip |
| Length | Customer's Demand | Minimum Order Quantity | 10pieces |
| Height | 20-270mm can be customed | Width | 4-3/4",9-1/2",customized. |

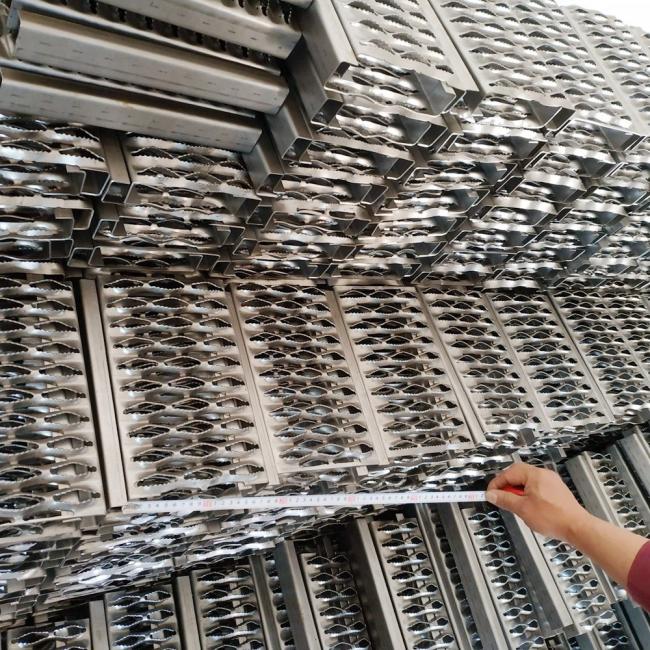

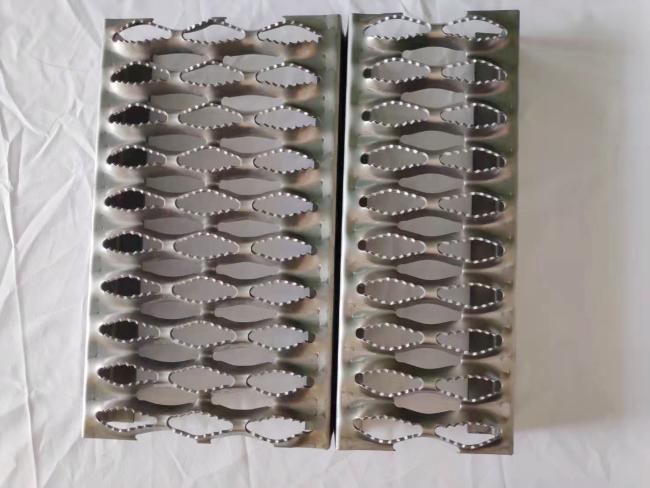

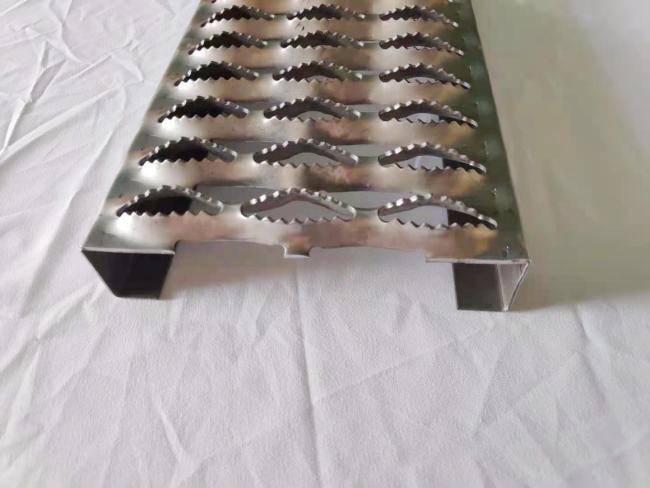

Grip struct walkway channels use the same open diamond of standard grip strut planks.This safe walking surface allows for draining of liquids,passage of debris and excellent slip resistance in all directions.Using the heavy duty,These walkway channels are manufactured from thicker steel which allows for larger unsupported spans.
Grip strut 10 diamond walkway is an excellent choice for conveyor walkways or inclined or inclined walkways that require the combination of ease of installation.Slip resistant surface, toe boards includes,and protective galvanized coatings,Available in lengths up to 24" and in 14 gauge thick carbon steel.
Product Material
|
Material |
hot-rolled, cold-rolled, galvanized sheet,aluminum, stainless steel sheet and so on |
|
Thickness |
2.0mm-5.0mm |
|
Width |
≤1000mm |
|
Length |
≤4000mm |
|
Surface treatment |
electro-galvanized, hot-dip galvanized, polishing and so on |
|
Holes type |
alligator mouth type, round convex type, tear-type, bridge-type hole |
|
Processing procedure |
raw materials- CNC molding- bending- welding- forming- packaging |
| Plank Widths | Channel Depths |
| 2 Diamond - 4-3/4" wide | 14 gauge Steel - 1-1/2", 2", 2-1/2" |
| 3 Diamond - 7" wide | 12 gauge Steel - 1-1/2", 2", 2-1/2", 3" |
| 4 Diamond - 9-1/2" wide | 12 gauge (.080) Aluminum - 2" |
| 5 Diamond - 11-3/4" wide | 10 gauge (.100) Aluminum - 2" |
| 8 Diamond - 18-3/4" wide | 16 gauge Stainless Steel - 2" |
| 10 Diamond - 24" wide | |
| Length: 10’-0 and 12’-0 ( custom length available up to 24’-0”) | |
*Non-slip surface is ideal for inside or outside locations where mud, ice, snow, oil and detergents can create hazardous walking conditions.
*Openings are small enough to catch most falling tools and other dangerous objects. Open design, convenient cleaning.
*Permits quick drainage of fluids, chips, grease and mud.
*Any ice accumulation shears easily under normal foot pressure.
*Open design allows convenient access for cleaning, and is easily cleaned with brush, liquid or air spray to help minimize overall maintenance. *High load capacity, long life.
*High strength-to-weight performance is achieved through depth of section and structural design.
*Bridged struts with integral side channels form plank that can support loads with minimum transverse and longitudinal deflection.
*No rivets or pressure joints to break or loosen.
Product Application and Usages
The diamond safety grating walkway with excellent slip resistance performance and outstanding chemical stability is widely used in the ocean, offshore and petroleum industries as walkways, catwalks and other applications.
Grip strut grating has 2-diamond style, 3-diamond style, 4-diamond style, 5-diamond style, 6-diamond style, 8-diamond style, The common specification of grip strut grating.
How to purchase the products ?
1:Material Type
2:Thickness(Gauge)
3:Hole Size
4:Hole Shape( round/diamond/raised round hole )
5:Spacing & Configuration
6:Sheet Size
7:Application
8:Surface Treatment
Iron pallet+satefy belts+PVC films.
It can be customized.
