| Price | USD1-USD2/PCS |
| MOQ | 10sqm |
| Delivery Time | 15 days |
| Brand | Velp |
| Place of Origin | China |
| Certification | SGS CE ISO9002 BV |
| Model Number | Stucco mesh-6 |
| Packaging Details | Wooden Case / Iron Pallet + Bubble Film +Waterproof Paper +Safety Belts |
| Payment Terms | MoneyGram, Western Union, T/T, L/C |
| Supply Ability | 2000 sqm per week |
| Place of Origin | China | Size | 610*2440mm |
| Packaging Details | Wooden Case / Iron Pallet + Bubble Film +Waterproof Paper +Safety Belts | Material | Galvanized steel,Carbon steel, |
| Zinc coating | 80g/sqm 270g/sqm | Model Number | Stucco mesh-6 |
| Supply Ability | 2000 sqm per week | Feature | light weight ,easy to install and treansport,durable |
| Certification | SGS CE ISO9002 BV | Name | Wall Plaster Formwork Galvanized 27" * 96" High Rib Lath Concrete Wall |
| Brand Name | Velp | Payment Terms | MoneyGram, Western Union, T/T, L/C |
| Price | USD1-USD2/PCS | Delivery Time | 15 days |
| Hole size | 16*11mm 7*11mm | Minimum Order Quantity | 10sqm |
| Rib distance | 100m |
Wall Plaster Formwork Galvanized 27" * 96" High Rib Lath Concrete Wall
27"*96" high rib lath concrete wall basic information

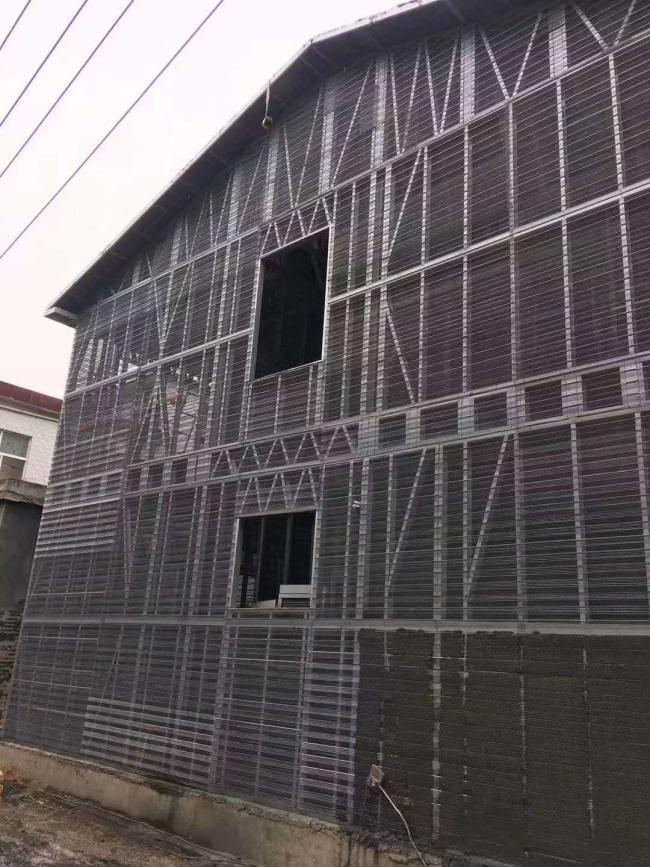

Rib lath is a versatile metal lath, it is stiffened by the longitudinal ribs,The rib lath formwork has a V ribs and great tensile strength.This metal rib lath offers excellent plaster base and reinforcement for all types of walls.ceilings,partitions and fireproofing of steel beam and columns.Rib lath is ideal for providing a high degree key of mechanical bonding with render or plaster.
27"*96" high rib lath concrete wall specifications
| 7 Rib 8 Opening | |||
| Thickness(mm) | Rib distance(mm) | Weight(kg) | Width*length(mm) |
| 0.3 | 100 | 1.79 | 610*2440 |
| 0.35 | 100 | 2.09 | 610*2440 |
| 0.4 | 100 | 2.38 | 610*2440 |
| 0.45 | 100 | 2.68 | 610*2440 |
| 0.5 | 100 | 2.98 | 610*2440 |
| 5 Rib 8 Opening | |||
| Thickness(mm) | Rib distance(mm) | Weight(kg) | Width*length(mm) |
| 0.3 | 100 | 1.31 | 610*2440 |
| 0.35 | 100 | 1.53 | 610*2440 |
| 0.4 | 100 | 1.75 | 610*2440 |
| 0.45 | 100 | 1.96 | 610*2440 |
| 0.5 | 100 | 2.17 | 610*2440 |
| 9 Rib 4 Opening | |||
| Thickness(mm) | Rib distance(mm) | Weight(kg) | Width*length(mm) |
| 0.3 | 75 | 1.89 | 610*2440 |
| 0.35 | 75 | 2.28 | 610*2440 |
| 0.4 | 75 | 2.53 | 610*2440 |
| 0.45 | 75 | 2.84 | 610*2440 |
| 0.5 | 75 | 3.15 | 610*2440 |
27"*96" High Rib Lath Concrete Wall Feature
1. Light weight,easy to transport and install
2. Pouring process is easy seen
3. Mechanical performance is good,
4. Optimization of process,increase the shear interface
5.To adapt to the segmented pouring concrete,the construction of civilization
6. The cocket and cutting is easy operation
