| Price | Negotiable |
| MOQ | 10Rolls or Panels |
| Delivery Time | a week |
| Brand | QIANPU |
| Place of Origin | Anping of China |
| Certification | ISO |
| Packaging Details | Warpped with plastic film, then in wooden case or pallets. |
| Payment Terms | T/T, Western Union, L/C |
| Hole Pattern | 90°, 45°, 60° | Place of Origin | Anping of China |
| Hole Shape | Round, slot, square, hexagnoal, etc | Packaging Details | Warpped with plastic film, then in wooden case or pallets. |
| Product Name | Stainless Steel Perforated Mesh | Material | Stainless Steel |
| Certification | ISO | Brand Name | QIANPU |
| Payment Terms | T/T, Western Union, L/C | Thickness | 0.5mm to 8.0mm |
| Price | Negotiable | Delivery Time | a week |
| Length | 15m, 30m to 60m | Minimum Order Quantity | 10Rolls or Panels |
| Features | has good corrosion resistance, high temperature resistance | Punched | Perforated |
| Width | 1m, 1.22m, 1.5m to 4m | Application | Architecture, Chemical industry, Filter, etc |

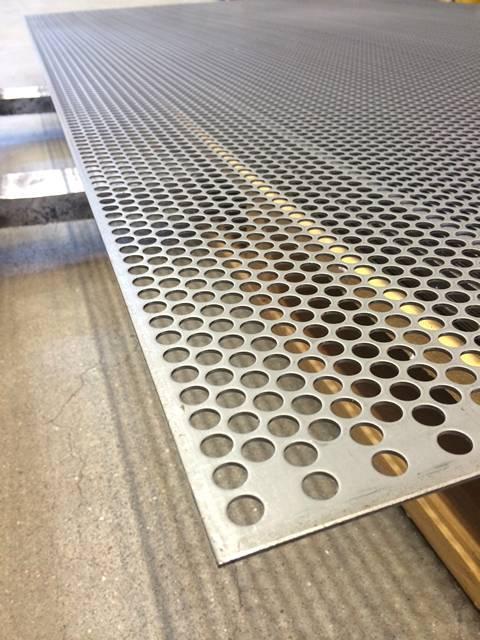

Stainless steel perforated metal mesh has good corrosion resistant performance in air, steam, water and other weak corrosive medium. It has high strength and wear resistance, which supports the longer service life than mild steel.
Among all the materials, stainless steel is the most economical one and you can find it widely used in our life.
304 (S30400) – It has high temperature resistance, good processability and high hardness. It is widely used in industry, medical treatment, food, architecture and other industries.
304L (S30403) – It is a kind of extra-low-carbon stainless steel of 304. It reduces carbon deposition during welding. In addition, its welding property is higher than 304.
316 (S31600) – A certain amount of Mo elements are added in 316, which can improve the resistance against high temperature, corrosion and wear. It is widely used in marine works, chemical industry, medical treatment, construction and other industries.
316L (S31603) – It is a kind of extra-low-carbon stainless steel of 316. It reduces carbon deposition during welding. In addition, its welding property is higher than 316.
321 (S32100) – A certain amount of Ti elements are added in 321. It can maintain the stability under the condition of severe corrosion. It is highly corrosion resistant, high temperature resistant, wear resistant and creep resistant. It is widely used in oil, chemical, medical treatment, aircraft and other industries.
430 (S43000) – 430 stainless steel has better thermal conductivity and corrosion resistant performance than 300 series. 430 stainless steel can resist the corrosion of nitric acid and some organic acids. It is widely used in chemical, laboratory and other corrosive environments.
|
Chemical Component (%)
|
|||||||||||
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Others | |
| 304 | min. | – | – | – | – | – | 17.5 | – | 8 | – | – |
| max. | 0.07 | 2 | 0.75 | 0.045 | 0.03 | 19.5 | – | 10 | 0.1 | – | |
| 304L | min. | – | – | – | – | – | 17.5 | – | 8 | – | – |
| max. | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 19.5 | – | 10 | 0.1 | – | |
| 316 | min. | – | – | – | – | – | 16 | 2 | 10 | – | – |
| max. | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 | – | |
| 316L | min. | – | – | – | – | – | 16 | 2 | 10 | – | – |
| max. | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 | – | |
| 321 | min. | – | – | – | – | – | 17 | – | 9 | – | Ti = 5 (C + N) |
| max. | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 19 | – | 12 | 0.1 | 0.7 | |
| 430 | min. | – | – | – | – | – | 16 | – | – | – | – |
| max. | 0.12 | 1 | 1 | 0.04 | 0.03 | 18 | – | 0.75 | – | – | |
|
Mechanical Property
|
|||||
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation at Break in 50 mm (%) | Hardness | |
| min. | min. | min. | Rockwell Hardness | Brinell Hardness (HB) max. | |
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 306 | 515 | 205 | 40 | 95 | 217 |
| 306L | 485 | 170 | 40 | 95 | 217 |
| 321 | 515 | 205 | 40 | 95 | 217 |
| 430 | 450 | 205 | 22 | 89 | 183 |
Parts of Specifications:
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.045" | 1.14mm | 0.66" | 0.033-0.039" | 0.84-0.99mm | 37% |
| 1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 41% |
| 1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.68mm | 23% |
| 5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 35% |
| 0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 38% |
| 3/32" | 2.38mm | 5/32" | 0.053*0.066" | 1.35-1.68mm | 33% |
| 1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 40% |
| 5/32" | 3.97mm | 3/16" | 0.027-0.056" | 0.68-1.68mm | 63% |
| 3/16" | 4.76mm | 1/4" | 0.027-0.127" | 0.68-3.23mm | 50% |
| 1/4" | 6.35mm | 3/8" | 0.033-0.011",0.25" | 0.84-2.82mm,6.35mm | 40% |
| 3/8" | 9.52mm | 1/2" | 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm | 51% |
| 3/8" | 9.52mm | 9/16" | 0.059",0.119" | 1.5mm,3.02mm | 40% |
| 1/2" | 12.7mm | 11/16" | 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm | 48% |
| 1/4" Hex | 6.35mm | 0.285" | 0.027-0.033" | 0.68-0.84mm | 76% |
| 3/8" Sq | 9.52mm | Cane" | 0.053-0.066" | 1.35-1.68mm | 51% |
Other Specifications according to your requirements.
has good corrosion resistant performance in air, steam, water and other weak corrosive medium. It has high strength and wear resistance, which supports the longer service life than mild steel.

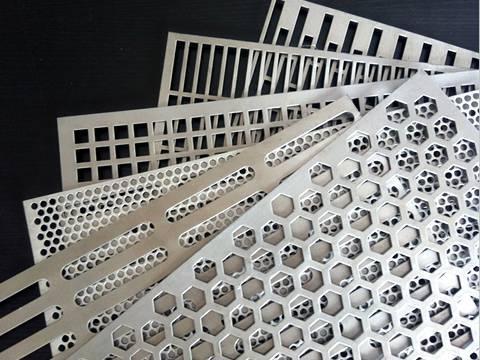

Round; Rectangular hole; Square; Triangle; Diamond; Slotted Hole; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Applications:
Architecture
Chemical industry.
Paper industry.
Pharmaceutical industry.
Automotive & Transport.
Filter
Furniture
Decorative
Speaker Grille
