Medium Copper Metal Woven Wire Mesh Resistance To Atmosphere Corrosion

Price	Negotiable
MOQ	10Rolls
Delivery Time	2weeks
Brand	QIANPU
Place of Origin	Anping of China
Certification	ISO
Packaging Details	Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Payment Terms	T/T, Western Union, L/C

Product Details

Product Specification

Place of Origin	Anping of China	Hole Shape	square, rectangle.
Packaging Details	Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.	Product Name	Medium Copper Mesh
Material	Copper wire	Standard	ASTM
Properties	Beautiful and attractive surface.	Certification	ISO
Brand Name	QIANPU	Payment Terms	T/T, Western Union, L/C
Weaving Type	plain weave	Price	Negotiable
Delivery Time	2weeks	Length	30 m, 50 m, 100 m and customized lengths.
Minimum Order Quantity	10Rolls	Usages	decoration for live rooms, offices, villas, hotels and commercial areas.
Mesh Counts	0.012 inch to 0.069 inch	Width	0.914 m, 1.0 m, 1.22 m and customized sizes.

Product Description

Medium Copper Mesh With Various Specs Good Resistance To Atmosphere Corrosion

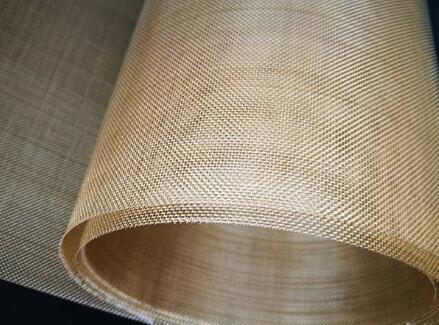

Copper Woven Wire Mesh Introduction:

Medium copper wire mesh has many mesh openings ranging from 0.012 inch to 0.069 inch. It is a kind ofwoven wire mesh with plain weave structures.

Our medium copper wire mesh is made of pure copper, not copper alloy.

Compared with coarse copper mesh, it has smaller and softer structure to be used more applications.

Specifications

Mateiral: pure copper.
Mesh size: 1–10 mesh.
Roll width: 0.914 m, 1.0 m, 1.22 m and customized sizes.
Roll length: 30 m, 50 m, 100 m and customized lengths.
Customized specifications on large quantity order are also available.

mesh/inch	Wire Diameter		Opening		Weight
mesh/inch	mm	inch	mm	inch	Kg/m2
12	0.35	0.014	1.77	0.07	0.794
12	0.55	0.022	1.57	0.062	1.96
14	0.5	0.02	1.31	0.052	1.89
15	0.23	0.009	1.46	0.058	0.428
16	0.28	0.011	1.31	0.051	0.677
16	0.315	0.012	1.27	0.05	0.857
16	0.45	0.018	1.14	0.045	1.75
16	0.5	0.02	1.09	0.043	2.16
16.9	0.25	0.01	1.25	0.049	0.57
18	0.315	0.012	1.1	0.043	0.964
18	0.38	0.015	1.03	0.041	1.404
18	0.5	0.02	0.91	0.036	2.43
20	0.4	0.016	0.87	0.034	1.728
20	0.45	0.018	0.82	0.032	2.187
22	0.3	0.012	0.85	0.034	1.069
22	0.37	0.015	0.78	0.031	1.626
22	0.38	0.015	0.77	0.03	1.715
24	0.27	0.011	0.78	0.031	0.945
24	0.35	0.014	0.71	0.028	1.588
25.5	0.4	0.016	0.6	0.023	2.203
26	0.3	0.012	0.68	0.027	1.264
28	0.3	0.012	0.61	0.024	1.361
30	0.23	0.009	0.62	0.024	0.857
30	0.25	0.01	0.6	0.023	1.013
30	0.3	0.012	0.55	0.022	1.458
31.75	0.25	0.01	0.55	0.022	1.072
40	0.19	0.007	0.44	0.017	0.78
40	0.2	0.008	0.44	0.017	0.864
50	0.18	0.007	0.33	0.013	0.875
50	0.2	0.008	0.31	0.012	1.08
50	0.225	0.009	0.28	0.011	1.367

Other specifications according to your requirements.

Features:

Our copper wire mesh is made of pure copper, not copper alloy. It has better resistance to atmosphere corrosion, especially in coastal areas.
Its soft property makes it very easy to operate.
What is more, its special brown luster gives a deep impression.
Excellent EMI/RFI/RF/EMC shielding performance.

Application:

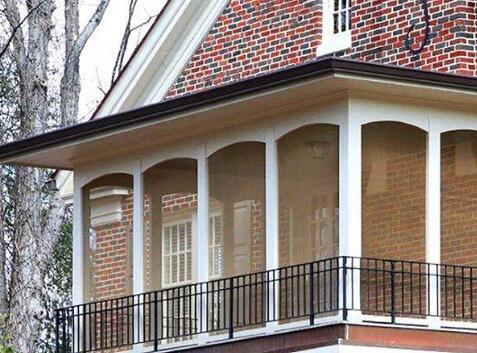

Insect screen.
Decorative wire mesh.
Fireplace screen.
Lamp shade
battery current collector, fuel cells, and electrolyzers.
Test sieve
Lamp shade
Wall decoration
RFI/EMI/EMC shielding mesh.
Faraday Cage.
