High Conductivity Rust Corrosion Copper Woven Wire Mesh

Price	Negotiable
MOQ	10Rolls
Delivery Time	2weeks
Brand	QIANPU
Place of Origin	Anping of China
Certification	ISO
Packaging Details	Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Payment Terms	T/T, Western Union, L/C

Product Details

Product Specification

Place of Origin	Anping of China	Hole Shape	square, rectangle.
Packaging Details	Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.	Product Name	Woven Copper Wire Mesh
Material	Copper wire	Standard	ASTM
Properties	High conductivity and rust corrosion.	Certification	ISO
Brand Name	QIANPU	Payment Terms	T/T, Western Union, L/C
Weaving Type	plain weave, twill weave, dutch weave.	Price	Negotiable
Delivery Time	2weeks	Length	10-50 m
Minimum Order Quantity	10Rolls	Usages	RFI/EMI/RF Shielding
Mesh Counts	2 to 200mesh	Width	0.5-3 m

Product Description

Woven Copper Wire Mesh With Many Usages Has High Conductivity And Rust Corrosion

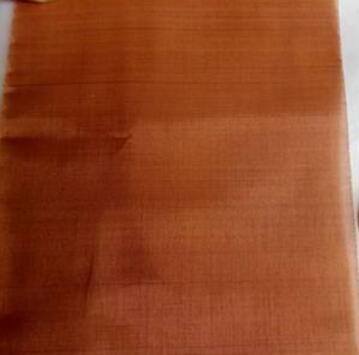

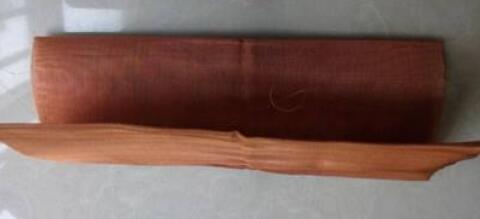

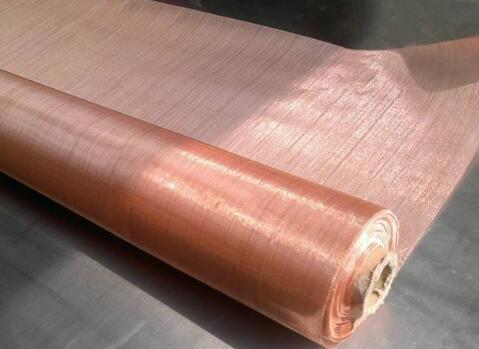

Copper Woven Wire Mesh Introduction:

Woven copper mesh is similar to a cloth with wire threads woven at right angles. Our plain weave copper cloth is flimsy and easy to cut by common scissors. It has an unpolished surface. Confirming to ASTM E2016-06.

Apart from high conductivity, nonmagnetic feature and corrosive resistance, copper cloth is also easy to be welded to form a rigid sheet with uniform opening size. With opening size from 0.006 inch to 0.075inch, copper cloth is very usable as a strainer or a sieve.

In addition, copper mesh owns special red-orange metallic luster and can be made to a great number of handicrafts or artworks.

Specifications

Material: pure copper proportion 99.9%.
Weaving style: plain weave, twill weave, dutch weave.
Hole shape: square, rectangle.
Width of copper mesh/cloth: 0.5-3 m (can be customized).
Length of copper mesh/cloth: 30 m (can be customized)..

copper mesh and brass wire cloth specification
Mesh/inch	Wire diameter		Opening	Open area
Mesh/inch	mm	inch	mm	Open area
2	2.03	0.8	10.67	70
2	1.8	0.072	10.9	73
2	1.6	0.063	11.1	76
3	1.6	0.063	6.87	65
4	1.194	0.047	5.16	66
5	0.91	0.035	4.17	67
8	0.711	0.028	2.46	60
6	0.8	0.032	3.43	66
6	0.711	0.028	3.52	69
8	0.61	0.024	2.57	65
8	0.559	0.022	2.62	68
10	0.635	0.025	1.9	56
10	0.559	0.022	1.98	61
10	0.508	0.02	2.03	64
12	0.584	0.023	1.47	52
12	0.457	0.018	1.66	61
14	0.5	0.02	1.31	52
14	0.457	0.018	1.36	56
14	0.417	0.016	1.4	59
16	0.457	0.018	1.12	50
16	0.345	0.014	1.24	61
16	0.315	0.012	1.27	64
18	0.45	0.018	0.96	46
18	0.432	0.017	0.97	48
18	0.315	0.012	1.1	60
20	0.315	0.012	0.96	56
20	0.247	0.011	0.88	61
22	0.315	0.012	0.84	53
24	0.315	0.012	0.74	49
26	0.295	0.012	0.68	49
28	0.295	0.012	0.61	45
20	0.407	0.016	0.86	46
30	0.305	0.012	0.53	40
30	0.247	0.011	0.57	49
30	0.234	0.009	0.61	52
32	0.254	0.01	0.54	46
34	0.234	0.009	0.51	47
36	0.234	0.009	0.47	45
38	0.213	0.008	0.46	46
40	0.254	0.01	0.38	36
40	0.193	0.008	0.44	48
40	0.152	0.006	0.46	58
42	0.193	0.008	0.41	46
44	0.173	0.007	0.4	49
46	0.173	0.007	0.38	47
48	0.173	0.007	0.38	47
50	0.23	0.009	0.28	30
50	0.173	0.007	0.34	43
50	0.132	0.005	0.38	55
60 × 50	0.193	0.008	-	-
60 × 50	0.173	0.007	-	-
60	0.19	0.008	0.23	30
60	0.173	0.007	0.25	35
60	0.122	0.005	1.3	83
70	0.132	0.005	0.23	40
70	0.112	0.004	0.25	48
80	0.14	0.006	0.18	31
80	0.122	0.005	0.2	38
80	0.102	0.004	0.22	46
90	0.112	0.004	0.17	36
90	0.091	0.004	0.19	46
100	0.114	0.005	0.14	30
100	0.102	0.004	0.15	36
100	0.091	0.004	0.16	41
120 × 108	0.091	0.004	-	-
120	0.081	0.003	0.13	38
120	0.071	0.003	0.14	44
140	0.071	0.003	0.11	37
140	0.061	0.002	0.12	44
150	0.061	0.002	0.11	41
160	0.061	0.002	0.1	38
180	0.061	0.002	0.08	32
180	0.051	0.002	0.09	41
200	0.051	0.002	0.08	36
Mesh size and wire diameter can be customized according to special needs.

Other specifications according to your requirements.

Features:

High conductivity and rust corrosion.
Uniform opening.
Red-orange metallic luster.
Flexibility.
Easy to cut with scissors.

Application:

RFI/EMI/RF Shielding
Electronic information security
Faraday Cages
Power generation
Insect Screens
Outer space exploration and research
Fireplace Screen
Electronic security
