0.1 To 0.3mm Stainless Steel Knitted Mesh

Price	Negotiable
MOQ	50Rolls
Delivery Time	a week
Brand	QIANPU
Place of Origin	Anping of China
Certification	ISO
Packaging Details	Warpped with plastic film, then in wooden case or pallets.
Payment Terms	T/T, Western Union, L/C

Product Details

Product Specification

Place of Origin	Anping of China	Applications	For The Separation Of Liquid In The Gas.
Packaging Details	Warpped with plastic film, then in wooden case or pallets.	Product Name	Knitted Wire Mesh
Standard	Q/SG12-1-79 Q/YSZZ-88-91	Material	various materials, as required
Roll Width	max 1.6m, as required	Certification	ISO
Weight	3 to 7mm	Brand Name	QIANPU
Payment Terms	T/T, Western Union, L/C	Type	Knitted
Price	Negotiable	Delivery Time	a week
Minimum Order Quantity	50Rolls	Roll Length	max 400m, as required
Features	Strong corrosion resistance	Wire Diameter	0.1 to 0.3mm

Product Description

Various Materials Types And Applications Stainless Steel Knitted Wire Mesh

Introduction:

Knitted wire mesh is a type of wire fabric manufactured by a circular knitted machine. It can be made of various materials, such as stainless steel, copper, nickel, Monel, plastic and other alloy materials. The various material wires are knitted into a sleeve of continuous stocking of inter-linked wire loops.

knitted wire mesh can be divided into different types according to different standard. You can refer to the following types, and choose the best fit for you.

Specifications of knitted wire mesh

Stainless Steel Knitted Wire Mesh
Types	Model	Wire Diameter	Mesh Width	Mesh Length
standard type	40-100	0.10-0.30mm	10-1600mm	10-100m
	60-150	0.10-0.30mm	10-1600mm	10-100m
	60-180	0.10-0.30mm	10-1600mm	10-100m
	105-300	0.10-0.30mm	10-1600mm	10-100m
	140-400	0.10-0.30mm	10-1600mm	10-100m
	160-400	0.10-0.30mm	10-1600mm	10-100m
high efficient	60-100	0.10-0.30mm	10-1600mm	10-100m
	70-100	0.10-0.30mm	10-1600mm	10-100m
	80-100	0.10-0.30mm	10-1600mm	10-100m
	80-150	0.10-0.30mm	10-1600mm	10-100m
	90-100	0.10-0.30mm	10-1600mm	10-100m
	90-150	0.10-0.30mm	10-1600mm	10-100m
	150-300	0.10-0.30mm	10-1600mm	10-100m
	200-400	0.10-0.30mm	10-1600mm	10-100m
	300-600	0.10-0.30mm	10-1600mm	10-100m
high penetrated	20-100	0.10-0.30mm	10-1600mm	10-100m
	20-160	0.10-0.30mm	10-1600mm	10-100m
	30-150	0.10-0.30mm	10-1600mm	10-100m
	70-400	0.10-0.30mm	10-1600mm	10-100m
	170-600	0.10-0.30mm	10-1600mm	10-100m
	180-700	0.10-0.30mm	10-1600mm	10-100m
Notes: 1. 40-100 model: it has 40 openings in the mesh width of 100mm. 2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm. 3. The mesh can be made into single strand, double strand, multi-strand etc. 4. The surface include flattened and crimped.
absorbed type	20-40	0.10-0.20mm	10-120mm	10-100m
	30-40	0.10-0.20mm	10-120mm	10-100m
	30-50	0.10-0.20mm	10-120mm	10-100m
	30-60	0.10-0.20mm	10-120mm	10-100m
	30-80	0.10-0.20mm	10-120mm	10-100m
	50-120	0.10-0.20mm	10-120mm	10-100m
Notes: 1. 50-120 model: it has 50 openings in the mesh width of 120mm.

Material: stainless steel, carbon steel, copper, Monel, titanium.

Wire type:

flat wire or round wire.

Wire diameter:

Round wire: 0.08 mm - 0.5 mm.

Flat wire: 0.1 mm × 0.3 mm, 0.1 mm × 0.4 mm, 0.2 mm × .4 mm, 0.2 mm × 0.5 mm.

Mesh opening: 2 mm × 3 mm, 4 mm × 6 mm to 12 mm × 6 mm.

Features of knitted wire mesh:

Various materials. Different material knitted wire mesh can be used in various applications for different requirements.

Solid structure. The interlocking structure of knitted wire mesh make the structure is solid, which will not loose when using.

High efficiency. The knitted wire mesh can be used as demister pad for high filtering efficiency.

Corrosion and rust resistance.

Acid and alkali resistance.

Temperature resistance.

Wide range of applications.

Applications of knitted wire mesh:

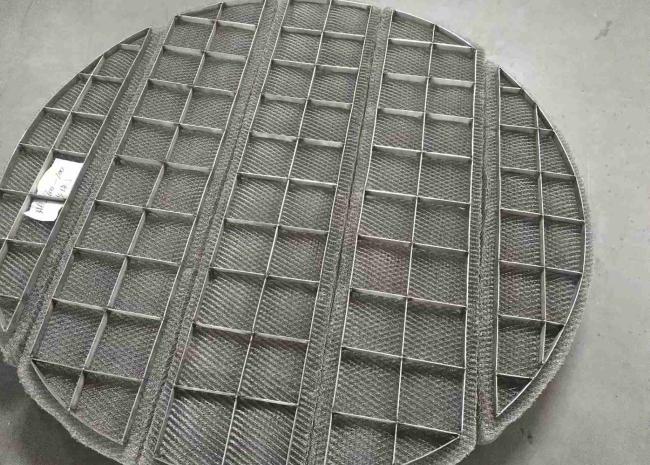

Knitted wire mesh is widely used as demister pads for gas and liquid separators.

Knitted wire mesh can be used for cleaning machines, kitchens and other components and parts.

Compressed knitted wire mesh can be installed in the engines to decrease noise and reduce shocks.

Knitted wire mesh can be used as shielding mesh for EMI/RFI shielding.

Packing:

Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3

Our factory Photos:

Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4

We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
