0.1mm To 0.3mm Stainless Steel Knitted Wire Mesh

Price	Negotiable
MOQ	50Rolls
Delivery Time	2 weeks
Brand	QIANPU
Place of Origin	Anping of China
Certification	ISO
Packaging Details	Warpped with plastic film, then in wooden case or pallets.
Payment Terms	T/T, Western Union, L/C

Product Details

Product Specification

Place of Origin	Anping of China	Applications	Oil Mist Separation, Mist Eliminators or Demister pads for oil/ gas, etc
Packaging Details	Warpped with plastic film, then in wooden case or pallets.	Product Name	Knitted Wire Mesh
Standard	Q/SG12-1-79 Q/YSZZ-88-91	Material	metal and non metal
Roll Width	60 to 150mm	Certification	ISO
Brand Name	QIANPU	Payment Terms	T/T, Western Union, L/C
Type	Knitted	Price	Negotiable
Delivery Time	2 weeks	Opening	3.0mm to 7.0mm
Minimum Order Quantity	50Rolls	Roll Length	10 to 50m
Features	With Good Penetrability	Wire Diameter	0.1mm to 0.3mm

Product Description

Combination Knitted Metal and Non- Metal Wire Combinations Knitted Wire Mesh

Combination Knitted Wire Mesh Introduction:

Combination Knitted Wire Mesh is produced by using metal or non metal different materials as knitted wires, they can be co-knitted with one another to enhance product capabilities, such as strength, thickness, etc. Combination knitted wire mesh are the most commonly used in the filtration & separation application.

We offer combination knitted wire mesh in the standard specifications, opening sizes range from 3 mm x 3 mm to 10 mm x 10 mm, while wire diameters range from 0.21 mm to 0.30 mm, and the manufactured widths are between 100 mm and 500 mm.

Combination Knitted Wire Mesh Specifications:

Common Specifications of Combination Knitted Wire Mesh
Wire Diameter (mm)	Opening Size (mm)	Width (mm)	Length (m)	Number of Wires (Nos.)
0.21	3.0-7.0	60-150	10-50	2
0.23	3.0-7.0	60-150	10-50	2
0.25	3.0-7.0	60-150	10-50	2
0.27	3.0-7.0	60-150	10-50	2
0.28	3.0-7.0	60-150	10-50	2
0.30	3.0-7.0	60-150	10-50	2

Combination Knitted Wire Mesh, Metal and Non-Metal Wire Combinations

Materials:

Metal: Stainless Steel Wire, Nickel Wire, Copper Wire, Aluminum Wire, ect.

Non-Metal Wire: PP, PE, Plastic

Features:

Reduce the frictions of contacting surface.

Applications:

Used in the filtration & separation industries, for the screen of textile production process.

Specifications:

Opening Sizes: from 1mm x 1mm to 10mm x 10mm.

Wire Diameters: from 0.1mm to 0.45mm.

Roll Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500 mm, 600mm, etc.

Roll Length: 15m, 30m, 50m to 100m.

Combination Knitted Wire Mesh, Metal and Non-Metal Wire Combinations

Packing:

Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.

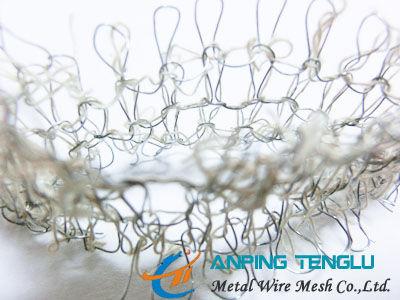

Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3

Our factory Photos:

Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4

We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
