10mm To 1200mm Stainless Steel Knitted Wire Mesh Corrosion Resistance

Price	Negotiable
MOQ	50Rolls
Delivery Time	a week
Brand	QIANPU
Place of Origin	Anping of China
Certification	ISO
Packaging Details	Warpped with plastic film, then in wooden case or pallets.
Payment Terms	T/T, Western Union, L/C

Product Details

Product Specification

Place of Origin	Anping of China	Applications	For The Separation Of Liquid In The Gas.
Packaging Details	Warpped with plastic film, then in wooden case or pallets.	Product Name	Knitted Wire Mesh
Standard	Q/SG12-1-79 Q/YSZZ-88-91	Material	Stainless Steel
Roll Width	10mm to 1600mm	Certification	ISO
Brand Name	QIANPU	Payment Terms	T/T, Western Union, L/C
Type	High Penetrated Type	Price	Negotiable
Delivery Time	a week	Minimum Order Quantity	50Rolls
Model	20-100, 20-160, 30-150,70-400, 170-600, 180-700	Roll Length	10m to 100m
Features	Strong corrosion resistance	Wire Diameter	0.1mm to 0.3mm

Product Description

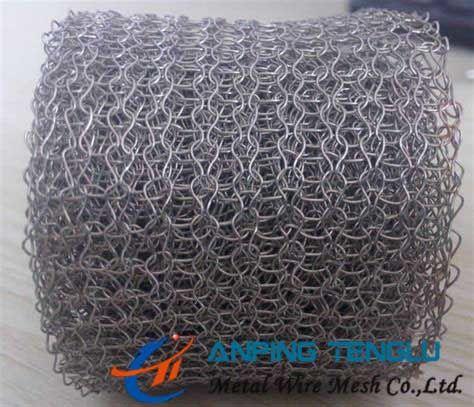

Abosorbed Type Knitted Wire Mesh Introduction:

Stainless steel knitted mesh refers to knitted mesh made of stainless steel wire. It is a nonwoven wire mesh or cloth product. The stainless steel knitted mesh is the most widely used type among all material knitted meshes.

Stainless steel knitted mesh can be made of mono-filament or multi-filament. Mono-filament knitted mesh is the simplest type, which can be used in the common applications and the multi-filament knitted mesh has higher strength, which can be used in the heavy duty applications.

The stainless steel knitted mesh is manufactured using a knitting process where the mesh is formed from a series of interlocking loops. The original stainless steel knitted mesh is flattened when complete production, but it can be made into ginning knitted mesh by machine according to customers' requirements. Ginning knitted mesh has different shapes, width and depth of ginning, which can suit more applications. Additional, stainless steel knitted mesh can be compressed into compressed knitted mesh for better filtering efficiency.

Absorbed Type knitted wire mesh use 0.10-0.20mm wire, knitted into a mesh of interlocking loops, application for car seal, shock absorption, silencers, exhaust purification system and airbags important element etc. The mesh has the characteristics of high filtering accuracy, good penetrability, formability, flexibility, electrical conductivity, thermal conductivity etc.

Specifications:

Model(N-M)	Material	Wire Diameter	Mesh Width	Mesh Length
20-40,30-40,30-50, 30-60,30-80,50-120	Stainless Steel	0.1-0.2mm	10-120mm	10-100m
20-40,30-40,30-50, 30-60,30-80,50-120	Nickel	0.1-0.2mm	10-120mm	10-100m
Notes: N-M model: it has "N" openings in the mesh width of "M" mm

Absorbed Type: 20-40 & 30-40/50/60/80 & 50-120; Stainless Steel, Nickel

Absorbed Type Detail:

Materials:

Stainless steel: 201, 202, 302, 304, 304L, 316, 316L, 321, 430, etc
Nickel: N2, N4, N6, Cr20Ni80, Monel400, Monel600

Properties:

Good distribution of pressure peaks;
Dispersion of air and moisture;
Easy washable and dryable;
Recyclable and non-poisonous.

Features:

Perfort performance in salty water;

Low pressure drop;
High collection efficiency;
Fast delivery and service;
Custom-designed for specific applications;
Efficient and economical for a wide range of applications;
It is convenient for installation, operation and maintenance.

Applications:

*Used for car seal, shock absorption, silencers, exhaust purification system and airbags important element.

*Stainless steel knitted mesh has excellent shielding performance. It can be used in the cable shields as a chassis grounding and electrostatic discharge.
*Stainless steel knitted mesh can be installed onto the machine frames for EMI shielding in military electronic system.
*It can be made into knitted mesh mist eliminator for gas and liquid filtration.
*Stainless steel knitted mesh has outstanding filtering efficiency in various filtration device for air, liquid and gas filtration.
