SS201 SS202 Stainless Steel Filter Screen 10mm To 1600mm

Price	Negotiable
MOQ	50Rolls
Delivery Time	a week
Brand	QIANPU
Place of Origin	Anping of China
Certification	ISO
Packaging Details	Warpped with plastic film, then in wooden case or pallets.
Payment Terms	T/T, Western Union, L/C

Product Details

Product Specification

Place of Origin	Anping of China	Applications	For The Separation Of Liquid In The Gas.
Packaging Details	Warpped with plastic film, then in wooden case or pallets.	Product Name	Knitted Wire Mesh
Standard	Q/SG12-1-79 Q/YSZZ-88-91	Material	Stainless Steel
Roll Width	10mm to 1600mm	Certification	ISO
Brand Name	QIANPU	Payment Terms	T/T, Western Union, L/C
Type	High Penetrated Type	Price	Negotiable
Delivery Time	a week	Minimum Order Quantity	50Rolls
Model	20-100, 20-160, 30-150,70-400, 170-600, 180-700	Roll Length	10m to 100m
Features	Strong corrosion resistance	Wire Diameter	0.1mm to 0.3mm

Product Description

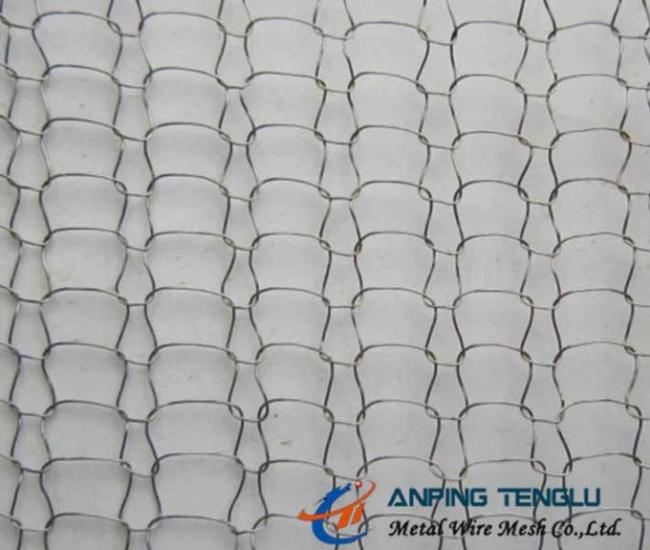

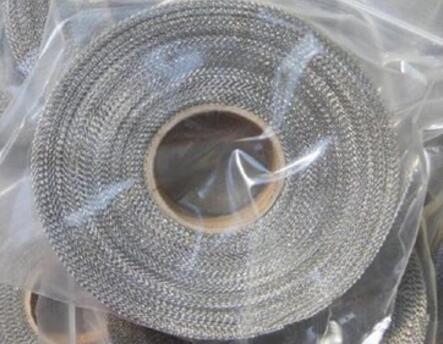

10mm To 1600mm Width High Penetrated Type Stainless Steel Knitted Wire Mesh

High Penetrated Type Knitted Wire Mesh Introduction:

Knitted wire fabric is a wire fabric, which is made by a circular knitted machine. The various knitted material wires are knitted into a sleeve of continuous stocking of inter-linked wire loops.

The knitted mesh fabric has various materials, the main materials can be galvanized wire, stainless steel wire, copper wire, brass wire, nickel wire, monel wire and other alloy wires.

Knitted mesh fabric is normally knitted from round or flat wires ranging from various diameters. The round wire knitted mesh fabric is the most widely used type and the flat wire knitted mesh fabric can be used in the special applications according to customers' requirements.

The knitted mesh fabric can be made of mono-filament wires or multi-filament wires. The mono-filament knitted mesh fabric is simple and economical, the multi-filament knitted mesh fabric has higher strength to suitable heavy duty applications.

A variety of metal wire and non-metallic silk production, the specific absorption of evaporation, and high temperatures, strong corrosion resistance, the elimination of steam in the attach the gas or liquid droplets. Mainly used for processing wire mesh demister, for the separation of liquid in the gas. Also can be extrusion forming, used in the manufacture of filter equipment; Metal structured packing, sealing material; Damping; Electromagnetic interference shielding device, etc

High Penetrated Specifications:

Model(N-M)	Material	Wire Diameter	Mesh Width	Mesh Length
20-100, 20-160, 30-150,70-400, 170-600, 180-700	Stainless Steel	0.1-0.3mm	10-1600mm	10-100m
	Carbon Steel	0.1-0.3mm	50-500mm	10-100m
	Copper Brass	0.1-0.3mm	100-500mm	10-100m
	Aluminum	0.1-0.3mm	100-500mm	10-100m
	Nickel	0.1-0.3mm	10-1600mm	10-100m
Notes: 1. N-M model: it has "N" openings in the mesh width of "M" mm. 2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm. 3. The mesh can be made into single strand, double strand, multi-strand etc. 4. The surface include flattened and crimped.

Gas-Liquid Filter Mesh, High Penetrated(20-100/160, 30-150,70-400, 170-600, 180-700 Model)

Materials:

Stainless steel: 201, 202, 302, 304, 304L, 316, 316L, 321, 430, etc
Nickel: N2, N4, N6, Cr20Ni80, Monel400, Monel600

Properties:

Good distribution of pressure peaks;
Dispersion of air and moisture;
Easy washable and dryable;
Recyclable and non-poisonous.

Features:

Applications:

Mainly used for processing wire mesh demister, for the separation of liquid in the gas. Also can be extrusion forming, used in the manufacture of filter equipment; Metal structured packing, sealing material; Damping; Electromagnetic interference shielding device, etc.
