Knitted Air Filter Stainless Steel Knitted Mesh Gas Water Separation

Price	Negotiable
MOQ	50Rolls
Delivery Time	a week
Brand	QIANPU
Place of Origin	Anping of China
Certification	ISO
Packaging Details	Warpped with plastic film, then in wooden case or pallets.
Payment Terms	T/T, Western Union, L/C

Product Details

Product Specification

Place of Origin	Anping of China	Applications	EMI And RFI Shielding, Air Filter, Gas/liquid Separation, Gas/water Separation, Oil/water Separation
Packaging Details	Warpped with plastic film, then in wooden case or pallets.	Product Name	Knitted Wire Mesh
Standard	Q/SG12-1-79 Q/YSZZ-88-91	Material	Stainless Steel
Roll Width	10mm to 1600mm	Certification	ISO
Brand Name	QIANPU	Payment Terms	T/T, Western Union, L/C
Type	Standard Type	Weaving Type	Knitted
Price	Negotiable	Delivery Time	a week
Minimum Order Quantity	50Rolls	Roll Length	10m to 100m
Features	Perfort performance in salty water	Wire Diameter	0.1mm to 0.3mm

Product Description

Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh

Introduction:

Knitted wire mesh is made of either crochet or knitting of various wire materials including stainless steel, copper, synthetic fiber and other materials.

Knitted wire mesh products are applied to those applications including cryogenic, high temperature, corrosive atmosphere, heat conductive, high usage, or special service applications.

Our knitted wire mesh is made from all material available in wire shapes for processing of the following parts:

Filters Oil and Air Breather Elements Catalytic Converter Mesh Insulator Blanket Mesh Mufflers and Silencers Copper Mesh Oil-Bath Separators Mist Elimination Pads Ground Wire Mesh

Standard Type Knitted Wire MeshSpecifications:

Specification of flat wire stainless steel knitted mesh
Wire Diameter (mm)	Mesh Opening/ Loop Size (mm)	Number of Needles	Maximum Width (mm)	Minimum Width (mm)
0.1 × 0.3	2 × 4	36	60	55
0.1 × 0.3	4.5 × 4 2.5 × 4	34	150	100
0.1 × 0.4	4.5 × 5.5 2.5 × 5.5	40	150	120
0.1 × 0.4	4 × 3.5 2.5 × 3.5	56	205	180
0.1 × 0.4	4 × 4 3 × 4	65	260	240
0.2 × 0.4	5.2 × 3.5 3 × 3.5	94	420	380
0.2 × 0.4	7.5 × 5 5 × 5	102	565	490
0.2 × 0.5	5 × 4 2.5 × 4	128	560	470

Specification of round wire stainless steel knitted mesh
Wire Diameter (mm)	Width (mm)	Number of Stitches Per cm on Length	Number of Stitches Per cm Across Lay Flat
0.08 – 0.18	6 - 300	3.5	4.4
0.16	40 - 600	2.4	3.5
0.18 - 0.35	30 - 1000	1.6	1.9
0.25 - 0.40	30 - 1000	1.6	0.74
0.4 - 0.5	100 - 350	0.5	0.5

Standard Type Specifications:

Durable and long lifespan Stainless Steel Knitted Wire Mesh(China Manufacturer)

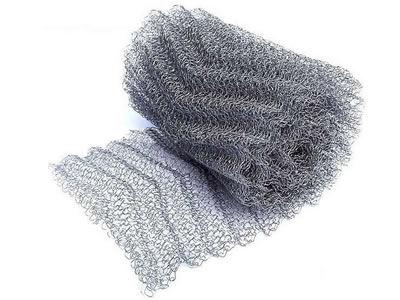

Flattened stainless steel knitted mesh.

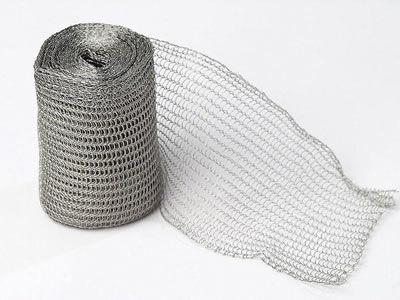

Ginning stainless steel knitted mesh.

Main Materials:

Monel knitted wire mesh has good corrosion resistance in all extreme environments and it is reasonably conductive and is tough with high tensile strength, giving good wear characteristics.

Applications:

Knitted wire mesh made of tinned copper clad steel has the best shielding performance of all wires used in knitted meshes, combining low contact resistance with a small degree of permeability. It is not suitable for highly abrasive applications where the TIN plating may wear away to expose the copper. The corrosion resistance of tinned copper clad steel knitted wire mesh is suitable for most applications

Stainless steel knitted mesh is often used as a protective final layer over the other knitted mesh gasket, materials on order to provide a wear-resistant contact surface.

Advantages and benefit:

Corrosion resistance.
Alkali and acid resistance.
Rust resistance.
High temperature resistance.
Excellent shielding performance.
Outstanding filtering efficiency.
Durable and long service life.
