3mm To 6mm Stainless Steel Wire Screen Single Intermediate SS316

Price	Negotiable
MOQ	10Rolls
Delivery Time	3 weeks
Brand	QIANPU
Place of Origin	Anping of China
Certification	ISO
Packaging Details	Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Payment Terms	T/T, Western Union, L/C

Product Details

Product Specification

Place of Origin	Anping of China	Applications	Vibrating Screens, etc
Packaging Details	Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.	Product Name	Single Intermediate Crimped Wire Mesh
Material	Stainless Steel	Certification	ISO
Surface	Bright Silver	Brand Name	QIANPU
Payment Terms	T/T, Western Union, L/C	Price	Negotiable
Delivery Time	3 weeks	Opening	3mm to 6mm
Length	15m, 30m, 60m to 90m.	Minimum Order Quantity	10Rolls
Features	Intercrimped assure the proper locking of the warp and weft wires	Width	1m, 1.22m, 1.5m to 4m.
Crimped Type	Single Intermediate Crimped	Wire Diameter	0.6mm to 3.0mm

Product Description

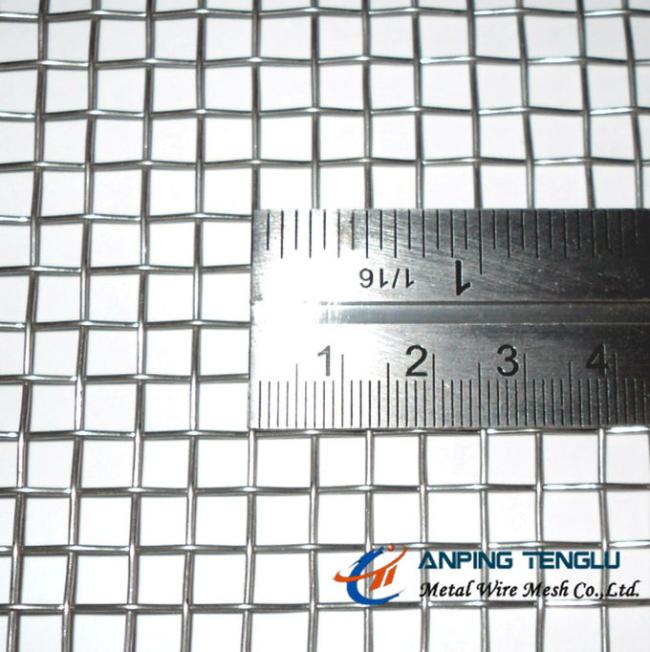

Single Intermediate Crimped Bright Silver SS Stainless Steel Crimped Wire Mesh

Intermediate Crimped Wire Mesh

“Intermediate crimp” or simply “intercrimp” describes the popular crimp type that is used when woven wire mesh is manufactured. With intercrimp, both the warp wires (the wires that run the length of the roll) and shute wires (wires that run the width of the roll) are pre-crimped before the mesh is woven. Intermediate crimp is usually employed in coarser meshes to obtain large openings with relatively light wires. The hallmark of an intermediate crimp is the corrugations in the wire, which adds to the stability of the mesh. As a rule, the larger the opening size, the more number of crimps. The single intermediate crimped means the weft wire is pre-crimped and the warp wire is directly woven.

Specifications:

Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m, 60m to 90m.

Single Intermediate Crimped Mesh
Wire Diameter		Opening		Open Area Rate
mm	Inch	mm	Inch	%
3.0	0.1181	3.35	0.1318	27.83
2.6	0.1023	3.75	0.1476	34.87
2.3	0.0905	4.05	0.1594	40.67
2.0	0.0787	4.35	0.1712	46.92
1.8	0.0708	4.55	0.1791	51.34
1.6	0.0629	4.75	0.1870	55.95
1.4	0.0551	4.95	0.1948	60.76
1.2	0.0472	5.15	0.2027	65.77
1.0	0.0393	5.35	0.2106	70.98
0.8	0.0314	5.55	0.2185	76.39
0.7	0.0275	5.65	0.2224	79.16
0.6	0.0236	5.75	0.2263	81.99

Other Specifications according to your requirements.

SS, Cu, Al Material Single Intermediate Crimped Wire Mesh, 4Mesh 0.6-3mm Wire

Weave Patterns:

SS, Cu, Al Material Single Intermediate Crimped Wire Mesh, 4Mesh 0.6-3mm Wire

Material:

Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel

Features:

Intercrimped assure the proper locking of the warp and weft wires;
Superior rigidity and greater stability;
Strong wear resistance and firm structure.
