SS300 0.015-1.8mm Stainless Steel Dutch Wire Mesh Bright Silver

Price	Negotiable
MOQ	5 Rolls
Delivery Time	40 days
Brand	QIANPU
Place of Origin	Anping of China
Certification	ISO
Packaging Details	Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Payment Terms	T/T, Western Union, L/C

Product Details

Product Specification

Place of Origin	Anping of China	Packaging Details	Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Product Name	Dutch Wire Mesh Strip	Material	Stainless Steel
Standard	AISI, DIN	Roll Width	40mm To 500mm
Certification	ISO	Surface	Bright Silver
Brand Name	QIANPU	Payment Terms	T/T, Western Union, L/C
Weaving Type	Dutch Weave	Price	Negotiable
Delivery Time	40 days	Minimum Order Quantity	5 Rolls
Roll Length	10m To 20m, or Customized	Features	Excellent filtration performance
Application	Filtration Industry	Wire Diameter	0.015-1.8mm

Product Description

SS300 Series Dutch Weave Filter Cloth Strip Stainless Steel Dutch Wire Mesh

Stainless Steel Mesh Strip Introduction:

Stainless Steel Mesh Strip, also called stainless steel mesh belt. Can be ised in ribbon style continuous screen changers for plastic extrusion, melt filtration.

Specifications:

Sheet1: Specifications of Plain Dutch Weave Wire Mesh
Mesh/Inch Warp×Weft	Wire Diameter Warp×Weft (mm)	Aperture Size μm	Weight kg/㎡	Thickness (mm)
7×40	0.9×0.71	347	6.65	2.32
7×44	0.71×0.63	319	5.55	1.97
8×45	0.8×0.6	310	5.7	2.00
8.5×60	0.63×0.45	296	4.16	1.53
8×85	0.45×0.315	275	2.73	1.08
10×90	0.45×0.28	249	2.57	1.01
10×76	0.5×0.355	248	3.24	1.21
12×86	0.45×0.315	211	2.93	1.08
12×64	0.56×0.4	211	3.89	1.36
12.5×76	0.45×0.355	192	3.26	1.16
14×100	0.40×0.28	182	2.62	0.96
14×110	0.355×0.25	177	2.28	0.855
14×76	0.45×0.355	173	3.33	1.16
16×100	0.4×0.28	160	2.7	0.96
17×120	0.355×0.224	155	2.19	0.803
16×120	0.28×0.224	145	1.97	0.728
20×140	0.315×0.20	133	1.97	0.715
20×170	0.25×0.16	130	1.56	0.57
20×110	0.355×0.25	126	2.47	0.855
22×120	0.315×0.224	115	2.20	0.763
25×140	0.28×0.2	100	1.96	0.68
24×110	0.355×0.25	97	2.60	0.855
28×150	0.28×0.18	92	1.87	0.64
30×150	0.25×0.18	82	1.79	0.61
30×140	0.315×0.20	77	2.21	0.715
35×190	0.224×0.14	74	1.47	0.504
35×170	0.224×0.16	69	1.62	0.544
40×200	0.18×0.135	63	1.24	0.43
45×250	0.16×0.11	56	1.11	0.384
50×300	0.16×0.09	55	0.98	0.34
60×500	0.14×0.055	51	0.70	0.252
50×270	0.14×0.10	50	0.98	0.34
70×930	0.10×0.03	30	0.39	0.16
65×390	0.125×0.071	42	0.78	0.267
60×300	0.14×0.09	41	0.96	0.32
80×700	0.125×0.04	40	0.60	0.205
60×270	0.14×0.1	39	1.03	0.34
77×560	0.14×0.05	38	0.74	0.24
80×600	0.1×0.045	37	0.53	0.19
70×390	0.112×0.071	37	0.74	0.254
65×750	0.10×0.036	36	0.43	0.172
70×340	0.125×0.08	35	0.86	0.285
80×430	0.125×0.063	32	0.77	0.251
100×1200	0.063×0.023	23	0.27	0.109
118×750	0.063×0.036	23	0.38	0.135

Sheet2: Specifications of Twill Dutch Weave Wire Mesh
Mesh/Inch Warp×Weft	Wire Diameter Warp×Weft (mm)	Aperture Size μm	Weight kg/㎡	Thickness (mm)
20×270	0.25×0.2	119	3.14	0.65
20×200	0.355×0.28	118	4.58	0.915
24×300	0.28×0.18	110	3.01	0.64
20×150	0.45×0.355	101	6.02	1.16
30×340	0.28×0.16	89	2.84	0.60
30×270	0.28×0.20	77	3.41	0.68
40×540	0.18×0.10	70	1.73	0.38
40×430	0.18×0.125	63	2.09	0.43
50×600	0.125×0.09	51	1.47	0.305
50×500	0.14×0.11	47	1.83	0.364
65×600	0.14×0.09	36	1.59	0.32
70×600	0.14×0.09	31	1.61	0.32
78×760	0.112×0.071	31	1.25	0.254
78×680	0.112×0.08	29	1.37	0.272
80×680	0.112×0.08	28	1.38	0.272
90×850	0.10×0.063	26	1.12	0.226
90×760	0.10×0.071	24	1.23	0.242
100×850	0.10×0.063	22	1.14	0.226
130×1500	0.063×0.036	21	0.64	0.135
100×760	0.10×0.071	20	1.25	0.242
130×1200	0.071×0.045	18	0.80	0.161
130×1100	0.071×0.05	17	0.87	0.171
150×1400	0.063×0.04	15	0.71	0.143
160×1500	0.063×0.036	15	0.67	0.135
165×1500	0.063×0.036	14	0.67	0.135
174×1700	0.063×0.032	13	0.62	0.127
165×1400	0.063×0.04	13	0.73	0.143
174×1400	0.063×0.04	11	0.74	0.143
203×1600	0.05×0.032	10	0.58	0.114
216×1800	0.045×0.03	10	0.53	0.105
203×1500	0.056×0.036	9	0.67	0.128
250×1900	0.04×0.028	8	0.51	0.096
250×1600	0.05×0.032	8	0.63	0.114
285×2100	0.036×0.025	7	0.44	0.086
300×2100	0.036×0.025	6
317×2100	0.036×0.025	5
325×2300	0.036×0.024	4
363×2300	0.032×0.022	4	0.40	0.076

Material: 302, 304, 304L, 316, 316L , 430, 309, 310S.

Peformance: Corrosion resistance, acid resistance, alkali resistance, high temperature resistance, good filter performance, strong tension and wearability.

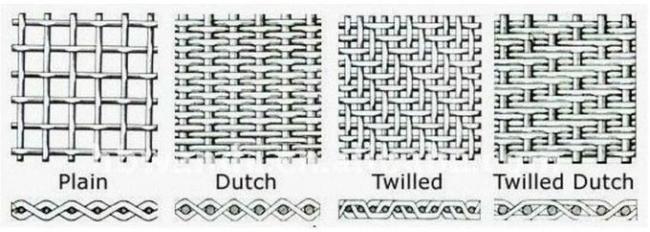

Weave Pattern:

Application:

it is used for sieving and filtration in acid and alkali environment, mud mesh in petroleum industry, sieving filter mesh in chemical fiber, acid washing mesh in electro galvanized industry, we can produce design and produce according to customre request, also OEM is acceptable.

Packing:

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.

Robusta Wire Mesh Excellent Filtration Stainless Steel Dutch Wire Mesh 3

Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
