| Price | 0.1-5$ per piece |
| MOQ | 100 Pieces |
| Delivery Time | For the size we have in stock,5 working days |
| Brand | QIANPU |
| Place of Origin | Hengshui,China |
| Packaging Details | Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements. |
| Supply Ability | 200000 piece per month |
| Brand Name | QIANPU | Type | Weave Wire Mesh, Filter disc |
| Place of Origin | Hengshui,China | Price | 0.1-5$ per piece |
| Delivery Time | For the size we have in stock,5 working days | Length | 1CM to 100CM |
| Minimum Order Quantity | 100 Pieces | Packaging Details | Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements. |
| Material | Stainless Steel Wire | Supply Ability | 200000 piece per month |
| Width | 1CM - 100CM |

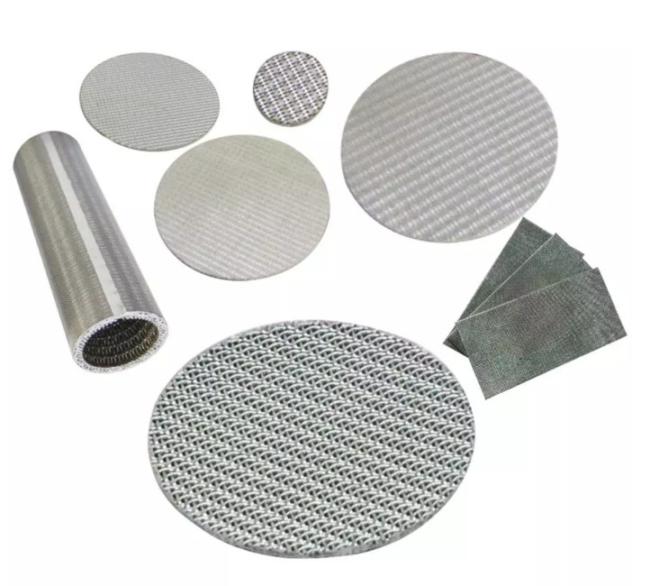

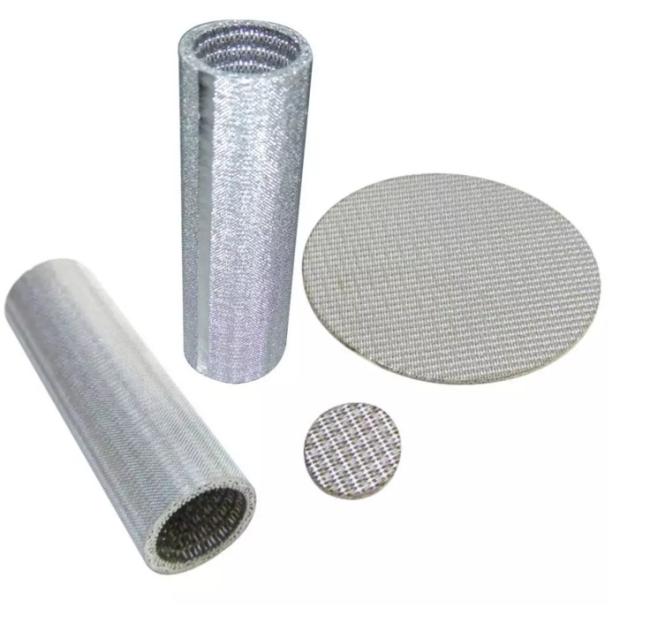

Stainless steel sintered wire mesh filter disc is made of multi-layer sintered woven mesh - plain dutch weave and plain weave type. As an important type of sintered metal filter mesh, our sintered filter discs can be manufactured in split and integral type used for drying and filtering. Sintered filter disc plate with long service life for drying, gas and liquid filtering in the pharmaceutical, petrochemical, food industry and chemical fiber industry.
Material :Stainless Steel ,Plain Steel ,Galvanized Steel,Aluminum, Brass (Copper) ,Phosphor or Bronze
Features: also named Punched Mesh, It can be supplied in folded or flat panels. From various metal plates, punched openings can be round, square, triangle, diamond, hexagonal, cross, etc.
Material:
Monel
wire
and
stainless
steel
AISI304,
AISI316,
AISI316L.
Diameter:
10
mm
to
3000
mm.
Filter
Rate:
2
microns
to
300
microns.
Thickness:
1
mm
to
5
mm.
Heat
resistance:
-200
°c
-
600
°c
continuous
filtration.

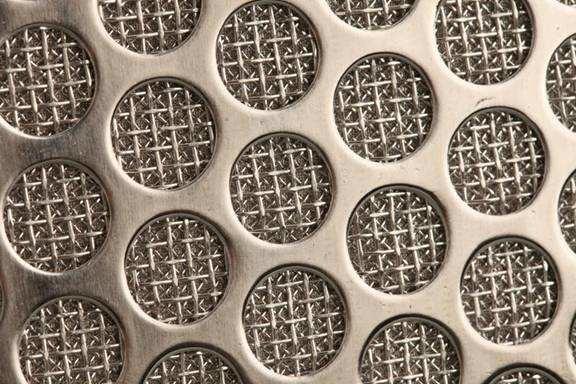

| ROUND HOLES STAGGERED PATTERN | |||
| HOLE | CENTERS |
GAUGE / PLATE THICK. |
OPEN AREA |
| .020" RD | .045" Stag | 26 | 18% |
| 1/32" RD | 1/16" Stag | 22 | 23% |
| 3/64" RD | 5/64" Stag | 24 | 33% |
| 3/64" RD | 3/32" Stag | 22 thru 18 | 23% |
| 1/16" RD | 3/32"Stag | 22 thru 16 | 40% |
| 1/16" RD | 7/64" Stag | 20 thru 16 | 30% |
| 1/16" RD | 1/8" Stag | 26 thru 16 | 23% |
| 5/64" RD | 1/8" Stag | 22 thru 14 | 35% |
| 3/32" RD | 5/32" Stag | 24 thru 14 | 33% |
| 3/32" RD | 3/16" Stag | 24 | 23% |
| .117 RD | 5/32" Stag | 18 | 51% |
| 1/8" RD | 3/16" Stag | 24 thru 11 | 40% |
| 1/8" RD | 7/32" Stag | 14 thru 12 | 30% |
| 1/8" RD | 1/4" Stag | 14, 13 | 23% |
| 9/64" RD | 3/16" Stag | 18 | 51% |
| 5/32" RD | 3/16" Stag | 22 thru 16 | 63% |
| 5/32" RD | 1/4" Stag | 20 thru 10 | 35% |
| 3/16" RD | 7/32" Stag | 22 thru 16 | 67% |
| 3/16" RD | 1/4" Stag | 24 thru 12 | 51% |
| 3/16" RD | 5/16" Stag | 10, 3/16" | 33% |
| 3/16" RD | 3/8" Stag | 14 thru 10 | 23% |
| 1/4" RD | 5/16" Stag | 20 thru 16 | 58% |
| 1/4" RD | 3/8" Stag | 26 thru 1/4" | 40% |
| 17/64" RD | 5/16" Stag | 20 | 66% |
| 5/16"RD | 7/16" Stag | 20 thru 1/4" | 46% |
| 3/8" RD | 9/16" Stag | 20 thru 1/4" | 40% |
| 1/2" RD | 11/16" Stag | 20 thru 1/4" | 48% |
| 1/2" RD | 3/4" Stag | 16 | 40% |
| 5/8" RD | 7/8" Stag | 10 thru 1/4" | 46% |
| 3/4" RD | 1" Stag | 16 thru 1/4" | 51% |
| 1" RD | 1-3/8" Stag | 10 thru 1/4" | 48% |
| 1-1/4" RD | 1-5/8" Stag | 1/4" | 54% |
| 1-1/2" RD | 2" Stag | 1/4" | 51% |
| 2" RD | 2-1/2" Stag | 1/4" | 58% |
| 2-1/2" RD | 3" Stag | 3/16" | 63% |
| 3" RD | 3-1/2" Stag | 3/16" | 67% |
| 4" RD | 4-1/2" Stag | 10 | 72% |
Resistance to high temperature, high pressure, corrosion, acid, and alkali. High strength, high filter rating, good dirt holding capacity, repeated washing.
Applications: The opening size, density and forms of distribution can bring different functions in separation, sifting, filtration, drying, cooling, cleaning, etc.
Performance and advantages of steel fiber mesh:
1.High dirt holding capacity,high filtering accuracy,longer on stream lifel.
2.Corrosion resistance of nitric acid,alkali, and organic solvent proof. It can be used for a long period of service in the temperature of 600℃.
3.High porosity and excellent permeability which results in low pressure drop and large flow.
4.Pleatable,provide a large filter area, and can be welded and machined.
5.Cleanable,can be used many times.
