Excellent Resistance Incoloy 825 Wire Mesh For Dipping Tube / Heating Element

Price	Negotiable
MOQ	2Rolls
Delivery Time	2weeks
Brand	QIANPU
Place of Origin	Anping of China
Certification	ISO

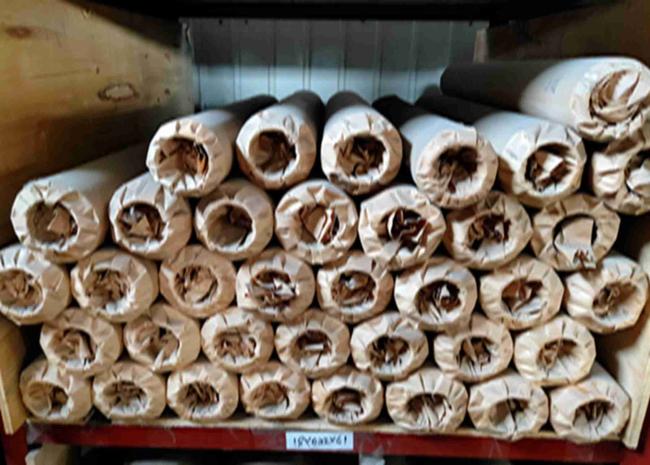

Packaging Details	Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Payment Terms	T/T, Western Union, L/C

Product Details

Product Specification

Place of Origin	Anping of China	Packaging Details	Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Product Name	Incoloy 825 Wire Mesh	Material	Incoloy 825
Wire	0.025-1.80mm	Alloy	contains a lot of chromium, molybdenum, nickel
Certification	ISO	Brand Name	QIANPU
Payment Terms	T/T, Western Union, L/C	Woven Type	Plain Weave, Twill Weave, dutch weave
Price	Negotiable	Delivery Time	2weeks
Minimum Order Quantity	2Rolls	Features	Resist oxidizing acids and non-oxidizing acids
Mesh Counts	2 to 400	Application	Used for filter, sieve, dipping tube, heating element

Product Description

Excellent Resistance Incoloy 825 Wire Mesh Used For Dipping Tube, Heating Element

Incoloy825 Wire Mesh Introduction:

Incoloy 825 wire mesh contains a lot of chromium, molybdenum, nickel, which makes it resist to pitting, crevice corrosion and stress corrosion cracking. With low carbon content, incoloy wire mesh has good welding performance.

Incoloy 825 wire mesh can filter or sieve materials in acid condition or be used for dipping tube, heating element. 825 wire mesh can also widely used in oil refining, sulfuric acid pickling plant, marine industry, food processing, etc.

Material:

Table 1: Incoloy 825 Wire Mesh Chemical Composition (%)

C ≤

Mn ≤

Si ≤

Al ≤

P ≤

S ≤

38–46

19.5–23.5

balance

0.05

0.5

1.5–3

2.5–3.5

0.2

0.6–1.2

0.03

Features:

Excellent resistance to pitting, crevice corrosion and stress corrosion cracking;
Resist oxidizing acids and non-oxidizing acids;
Good mechanical behavior in high temperature;
Good welding performance.

Applications:

Used for filter, sieve, dipping tube, heating element;
As the elements of washing tube, heat exchanger, acid gas pipes;
Used in sulfuric acid pickling plant, oil refining, food processing, marine industry.

Specifications:

Mesh	Wire Diameter		Opening (mm)
Mesh	mm	inch	Opening (mm)
2 mesh	1.8	0.071	10.9
3 mesh	1.6	0.063	6.866
4 mesh	1.2	0.047	5.15
5 mesh	0.91	0.036	4.17
6 mesh	0.711	0.028	3.522
8 mesh	0.61	0.024	2.565
10 mesh	0.508	0.02	2.032
12 mesh	0.457	0.018	1.66
14 mesh	0.417	0.016	1.397
16 mesh	0.345	0.014	1.243
18 mesh	0.315	0.012	1.096
20 mesh	0.315	0.0124	0.955
22 mesh	0.315	0.0124	0.84
24 mesh	0.315	0.0124	0.743
26 mesh	0.295	0.0116	0.682
28 mesh	0.295	0.0116	0.612
30 mesh	0.274	0.011	0.573
32 mesh	0.254	0.01	0.54
34 mesh	0.234	0.0092	0.513
36 mesh	0.234	0.0092	0.472
38 mesh	0.213	0.0084	0.455
40 mesh	0.193	0.0076	0.442
42 mesh	0.193	0.0076	0.412
44 mesh	0.173	0.0068	0.404
46 mesh	0.173	0.0068	0.379
48 mesh	0.173	0.0068	0.356
50 mesh	0.173	0.0068	0.335
60 × 50 mesh	0.193	0.0076	-
60 × 50 mesh	0.173	0.0068	-
60 mesh	0.173	0.0068	0.25
70 mesh	0.132	0.0052	0.231
80 mesh	0.122	0.0048	0.196
90 mesh	0.112	0.0044	0.17
100 mesh	0.012	0.004	0.152
120 × 108 mesh	0.091	0.0036	-
120 mesh	0.081	0.0032	0.131
140 mesh	0.061	0.0024	0.12
150 mesh	0.061	0.0024	0.108
160 mesh	0.061	0.0024	0.098
180 mesh	0.051	0.002	0.09
200 mesh	0.051	0.002	0.076
220 mesh	0.051	0.002	0.065
250 mesh	0.041	0.0016	0.061
280 mesh	0.035	0.0014	0.056
300 mesh	0.031	0.0012	0.054
320 mesh	0.031	0.0012	0.046
330 mesh	0.031	0.0012	0.042
350 mesh	0.031	0.0012	0.039
360 mesh	0.025	0.001	0.0385
400 mesh	0.025	0.001	0.0385
