| Price | Negotiable |
| MOQ | 10units |
| Delivery Time | 2weeks |
| Brand | QIANPU |
| Place of Origin | Anping of China |
| Certification | ISO |
| Packaging Details | Warpped with plastic film, then in wooden case. |
| Payment Terms | T/T, Western Union, L/C |
| Hole | 2mm | Place of Origin | Anping of China |
| Warp Wire Diameter | 7mm × 1mm. | Packaging Details | Warpped with plastic film, then in wooden case. |
| Product Name | Flat Wire Woven Mesh Facade | Color | Silver, Brass, Bronze, Gold |
| Material | stainless steel wire 304 | Certification | ISO |
| Brand Name | QIANPU | Payment Terms | T/T, Western Union, L/C |
| Price | Negotiable | Delivery Time | 2weeks |
| Minimum Order Quantity | 10units | Surface Treatment | Decorative plating, Powder Coating, etc. |
| Features | Durable Made Of Robust Mesh | Application | Used As Interior & Exterior ety |

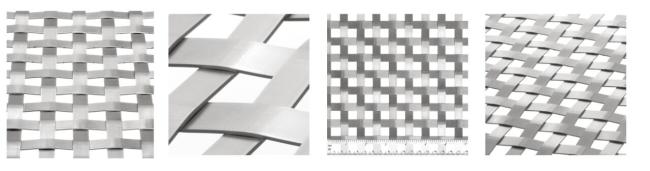

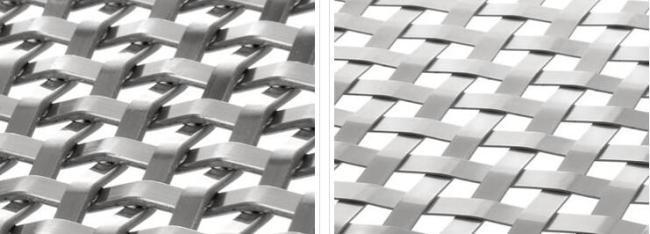

A flat wire weave created with plain crimp tooling. The simple, uncomplicated shape of plain crimp suits this flat wire and mesh spacing combination for use in just about any interior or exterior application.
Metal wire mesh as railing can be used as interior & exterior ety, whatever the metal mesh can be used for indoor and outdoor staircase handrails, which can add decoration to the space without losing its use function. The high percentage of open area of the metal mesh maintains the open concept of a light-filled space.

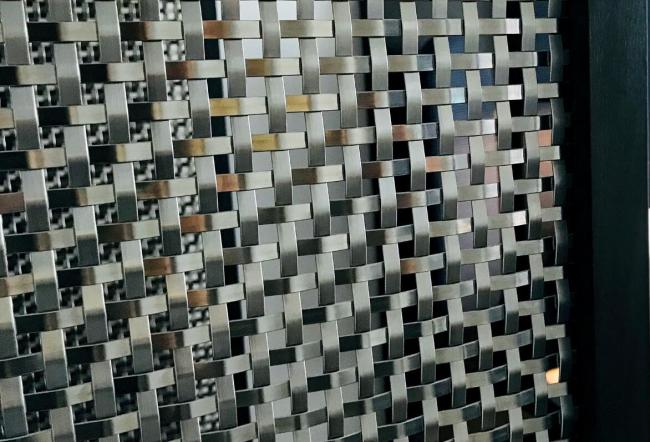

A medium density, flat wire, intermediate crimp woven mesh, typically supplied in Stainless Steel or Brass and used for premium bar grilles, bespoke room dividers and other ornamental metalwork.
Stainless steel: 201,202, 304, 316, 321, 410, 430
Copper: brass, pure copper, phosphor bronze
Pure Aluminum & Aluminum Alloy: 1050, 1060, 1100, 5052, 5056
1: The crimped flat wires interlock to prevent slipping.
2: Big variety of colors available: natural colors and plated colors.
3: Beautiful appearance and various color option
4: High durability
5: Easy to install
6: Excellent Aesthetic appeal and functionality
7: Color never fading and paint never dropping
8: Gorgeous and chic elegant appearance
Specifications:
| Warp Wire | Weft Wire | Open Area | |||
| W1×T1(mm) | P1(mm) | W2×T2(mm) | P2(mm) | (mm) | (%) |
| 8.0×2.0 | 35.0 | 8.0×2.0 | 35.0 | 27.0×27.0 | 59 |
| 8.0×2.0 | 24.0 | 8.0×2.0 | 24.0 | 16.0×16.0 | 44 |
| 6.4×1.0 | 13.4 | 6.4×1.0 | 13.4 | 7.0×7.0 | 32 |
| 3.0×1.2 | 10.0 | 3.0×1.2 | 10.0 | 7.0×7.0 | 49 |
| 3.2×1.6 | 9.5 | 3.2×1.6 | 9.5 | 6.3×6.3 | 44 |
| 6.0×1.5 | 12.0 | 6.0×1.5 | 12.0 | 6.0×6.0 | 25 |
| 3.0×0.8 | 9.0 | 3.0×0.8 | 9.0 | 6.0×6.0 | 41 |
| 2.2×0.8 | 6.7 | 2.2×0.8 | 6.7 | 4.5×4.5 | 45 |
| 1.7×1.0 | 6.2 | 1.7×1.0 | 6.2 | 4.5×4.5 | 52 |
| 3.0×1.2 | 7.2 | 3.0×1.2 | 7.2 | 4.2×4.2 | 34 |
| 1.5×0.8 | 5.0 | 1.5×0.8 | 5.0 | 3.5×3.5 | 49 |
| 3.4×1.1 | 6.6 | 3.4×1.1 | 6.6 | 3.2×3.2 | 43 |
| 3.2×1.2 | 6.4 | 3.2×1.2 | 6.4 | 3.2×3.2 | 25 |
| 10.0×1.0 | 13.0 | 10.0×1.0 | 13.0 | 3.0×3.0 | 5 |
| 2.4×0.9 | 5.1 | 2.4×0.9 | 5.1 | 2.7×2.7 | 25 |
| 4.0×1.0 | 6.5 | 4.0×1.0 | 6.5 | 2.5×2.5 | 15 |
| 7.0×1.0 | 9.0 | 7.0×1.0 | 9.0 | 2.0×2.0 | 5 |
| 1.0×0.5 | 2.5 | 1.0×0.5 | 2.5 | 1.5×1.5 | 36 |
Product applications/uses include wall and ceiling panels, interior and exterior wall cladding, column wraps, partitions, retail display panels, shelving, cabinet inserts, raining infill panels, baskets, furniture, fixtures and more! We invite you to browse Designer Metals applications in our Product and Application Gallery.
