27mm Hole 10mm X 1.5mm Woven Flat Metal Mesh SS304 Beautiful Appearance

Price	Negotiable
MOQ	10units
Delivery Time	2weeks
Brand	QIANPU
Place of Origin	Anping of China
Certification	ISO
Packaging Details	Warpped with plastic film, then in wooden case.
Payment Terms	T/T, Western Union, L/C

Product Details

Product Specification

Hole	27mm	Place of Origin	Anping of China
Warp Wire Diameter	10mm × 1.5mm.	Packaging Details	Warpped with plastic film, then in wooden case.
Product Name	Flat Wire Woven Mesh Facade	Color	Silver, Brass, Bronze, Gold
Material	stainless steel wire 304	Certification	ISO
Brand Name	QIANPU	Payment Terms	T/T, Western Union, L/C
Price	Negotiable	Delivery Time	2weeks
Minimum Order Quantity	10units	Surface Treatment	Decorative plating, Powder Coating, etc.
Features	Beautiful Appearance	Application	Cladding and casings

Product Description

27mm Hole 10mm X 1.5mm Flat Wire Woven Mesh SS304 Beautiful Appearance

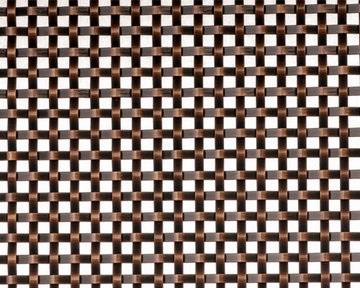

Flat wire woven mesh Introduction

Flat Wire Decorative Wire Mesh is a kind of architectural mesh. It is mostly made of high-grade stainless steel, copper or brass. Alternative metals are sometimes chosen for specific environment. This product has a wide range of weaving patterns, please see the images below. It is a simple way to give many projects from kitchens to fine furniture a unique style. It is also an exceptional element for architecture decoration; they can easily catch your eyes. Many of our products are produced with inspiration of architects and designers for interior and exterior architectural decoration purpose.

Materials:

Stainless steel: 201,202, 304, 316, 321, 410, 430
Copper: brass, pure copper, phosphor bronze
Pure Aluminum & Aluminum Alloy: 1050, 1060, 1100, 5052, 5056

Features

1: The crimped flat wires interlock to prevent slipping.
2: Big variety of colors available: natural colors and plated colors.
3: Beautiful appearance and various color option
4: High durability
5: Easy to install
6: Excellent Aesthetic appeal and functionality
7: Color never fading and paint never dropping
8: Gorgeous and chic elegant appearance

Specifications:

Warp Wire		Weft Wire		Open Area
W1×T1(mm)	P1(mm)	W2×T2(mm)	P2(mm)	(mm)	(%)
8.0×2.0	35.0	8.0×2.0	35.0	27.0×27.0	59
8.0×2.0	24.0	8.0×2.0	24.0	16.0×16.0	44
6.4×1.0	13.4	6.4×1.0	13.4	7.0×7.0	32
3.0×1.2	10.0	3.0×1.2	10.0	7.0×7.0	49
3.2×1.6	9.5	3.2×1.6	9.5	6.3×6.3	44
6.0×1.5	12.0	6.0×1.5	12.0	6.0×6.0	25
3.0×0.8	9.0	3.0×0.8	9.0	6.0×6.0	41
2.2×0.8	6.7	2.2×0.8	6.7	4.5×4.5	45
1.7×1.0	6.2	1.7×1.0	6.2	4.5×4.5	52
3.0×1.2	7.2	3.0×1.2	7.2	4.2×4.2	34
1.5×0.8	5.0	1.5×0.8	5.0	3.5×3.5	49
3.4×1.1	6.6	3.4×1.1	6.6	3.2×3.2	43
3.2×1.2	6.4	3.2×1.2	6.4	3.2×3.2	25
10.0×1.0	13.0	10.0×1.0	13.0	3.0×3.0	5
2.4×0.9	5.1	2.4×0.9	5.1	2.7×2.7	25
4.0×1.0	6.5	4.0×1.0	6.5	2.5×2.5	15
7.0×1.0	9.0	7.0×1.0	9.0	2.0×2.0	5
1.0×0.5	2.5	1.0×0.5	2.5	1.5×1.5	36

Application

Canopies, gates, exhibit booths, retail displays, elevator cabs, stairs, balustrades, furnitures, cabinetry, partition screens, cabinets, hutches, bookcases, and more.

Flat wire woven mesh can be used as exterior facade.
