| Price | Negotiable |
| MOQ | 20KM |
| Delivery Time | 7 days |
| Brand | YUANTONG |
| Place of Origin | Sichuan, China |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | Hybrid |
| Packaging Details | Wooden Drum |
| Payment Terms | L/C, T/T, Western Union, D/P |
| Supply Ability | 500km per week |
| Place of Origin | Sichuan, China | Packaging Details | Wooden Drum |
| Loose Tube | PBT material | Model Number | Hybrid |
| Supply Ability | 500km per week | Certification | ROSH ,TLC, CCC, ISO |
| Strength member: | Metal FRP | Brand Name | YUANTONG |
| Payment Terms | L/C, T/T, Western Union, D/P | Type | fiber optical cable |
| Price | Negotiable | Delivery Time | 7 days |
| Transport Package | Wooden Drum | Minimum Order Quantity | 20KM |
| Operating /Installation Temperature | -10~ +70 c | Fiber type | G.652D Singlemode |
| Outer Jacket/Sheath | PE(HDPE/LDPE),PVC,LSZH | Number of Conductors | ≥ 10 |

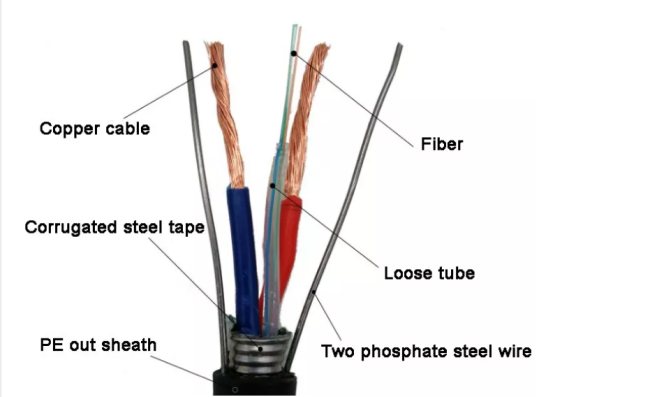

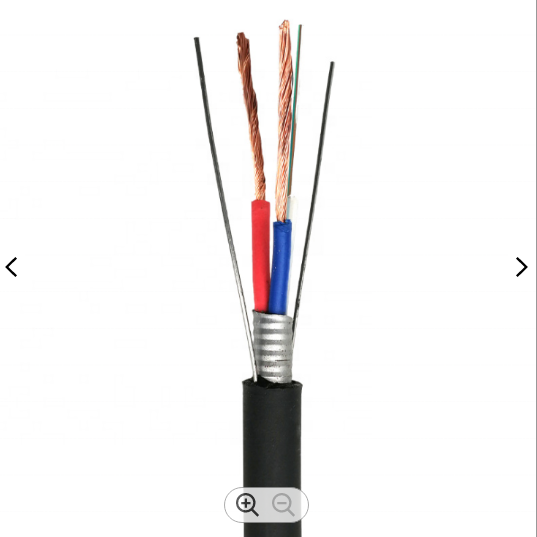

Composite Fiber Optic Cables that have a number of different components laid up within the bundle. These types of cables allow for multiple transmission paths by various components, whether they be metal conductors or fibre optics, and allow the user to have a single cable, therefore reducing the overall cost and lead time for installation.
Feature
1. Low dispersion and attenuation.
2. LAP Aluminum belt is applied around the cable core, which is filled with the filling compound to protect it from water-ingress.
3. Proper design, precise control for fiber excess length and distinct stranding process render the excellent mechanical and enviromental properties.
4. The armoring of steel wire and corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
5. Compact structure and lightness, flexible and good bend-resistant performance.
Applicaiton
1 Used for outdoor distribution box to the building's pipeline;overhead; buried.
2 Used in optical communication equipment room, light distribution frame light connection and optical
3 instruments, equipment connect to the light.
4 Used for tail fiber and jump in line.
5 Used for buildings surrounding into cable.
