| Price | Negotiable |
| MOQ | 20KM |
| Delivery Time | 7 days |
| Brand | YUANTONG |
| Place of Origin | China |
| Certification | RoHS, UL, CE, ISO9001 |
| Model Number | GYTS (D177/D179) |
| Packaging Details | Wooden Drum |
| Payment Terms | L/C, T/T, Western Union, D/P |
| Supply Ability | 500km per week |
| Origin | China Chengdu | Material Shape | Round Wire |
| Place of Origin | China | Customization | Available |
| Packaging Details | Wooden Drum | Model Number | GYTS (D177/D179) |
| Supply Ability | 500km per week | Certification | RoHS, UL, CE, ISO9001 |
| Brand Name | YUANTONG | Payment Terms | L/C, T/T, Western Union, D/P |
| Type | Single-mode Fiber | Sheath Material | PE Outer Sheath |
| Price | Negotiable | Delivery Time | 7 days |
| Minimum Order Quantity | 20KM | Allowed Lateral Pressure | >1000(N/100mm) |
| Allowed Tensile Strength | 1000N<10000N | Core | Multicore |
Description

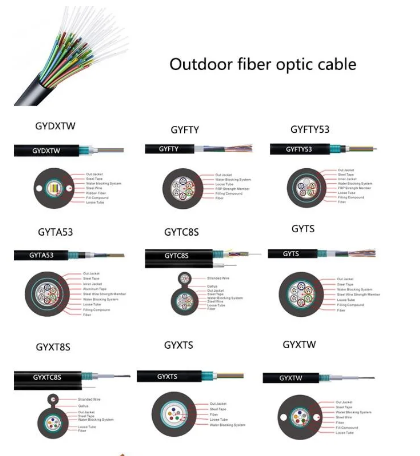

The GYTS optical cable structure is enters the single model or the multi- molds optical fiber wrap by the high module in the loose drive pipe which gathers the fat material to make, in the drive pipe fills the waterproof compound. The cable core center is a metal strengthens the core, said regarding certain core numbers optical cables, the metal strengthens outside the core also to have to crowd polyethylene (PE). The loose drive pipe (and packing rope) revolves the center to strengthen the core to twist the synthesis compact circular cable core, in the cable core slit imitates by the anti- water bed. After two-sided spreads models the steel belt (PSP) the vertical package the polyethylene protective covering to become the cable.
Features
Accuracy control optical fibers Yu Chang had guaranteed the optical cable has good anti- pulls the performance and temperature characteristic
Loose sheathing materials itself has good bears the hydrolysis performance and a higher intensity, in the tube imitates by the special grease, has carried on the crucial protection to the optical fiber.
Good resistance to compression and the flexible
Polyethylene (PE) the protective covering has the good anti- ultraviolet radiation
Application:
Adopted to Outdoor distribution.
Laying ways: Pipeline , Overhead , Direct buried ,Duct
Long distance and local area network communication.
Characteristics:
Good ultra violet radiation resistant property.
Good moisture-resistance.
Good crush-resistance mechanical performance.
Method of installation are easily.
Product Parameters
| Model | Fibers | Tubes No. | OD (outer dia.) |
Weight kg/km |
Tensile Strength Long /Short Term |
Crush Resistance Long/Short Term |
| GYTS | 1-12 | 1 | 9.3mm | 80 | 1000/2000N | 1000/2000N |
| 24 | 2 | 9.3mm | 80 | 1000/2000N | 1000/2000N | |
| 36 | 3 | 9.5mm | 90 | 1000/2000N | 1000/2000N | |
| 48 | 4 | 9.5mm | 90 | 1000/2000N | 1000/2000N | |
| 72 | 6 | 11mm | 120 | 1000/2000N | 1000/2000N | |
| 96 | 8 | 13.8mm | 150 | 1000/2000N | 1000/2000N | |
| 144 | 12 | 16.5mm | 200 | 1000/2000N | 1000/2000N | |
| 288 | 24 | 18mm | 250 | 1000/2000N | 1000/2000N |
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
