| Price | Negotiable |
| MOQ | 20KM |
| Delivery Time | 7 days |
| Brand | YUANTONG |
| Place of Origin | China |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | GJYXFHA-4B |
| Packaging Details | Wooden Drum Plus Carton |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 500km per week |
| Place of Origin | China | Cable Sheath | PE LSZH |
| Packaging Details | Wooden Drum Plus Carton | Product Name | 4 core Indoor Optic Fiber Cable Conduit To Introduce Butterfly GJYXFHA |
| Model Number | GJYXFHA-4B | Fiber Count | 4 core |
| Fiber Type | G652D | Cable Use | Indoor |
| Supply Ability | 500km per week | Certification | ROSH ,TLC, CCC, ISO |
| Brand Name | YUANTONG | Payment Terms | L/C, D/P, T/T, Western Union |
| Cable Color | Black | Price | Negotiable |
| Delivery Time | 7 days | OEM | Supported |
| Minimum Order Quantity | 20KM | Strength Member | FRP |
4 core Indoor Optic Fiber Cable Conduit To Introduce Butterfly GJYXFHA
1. Product Description

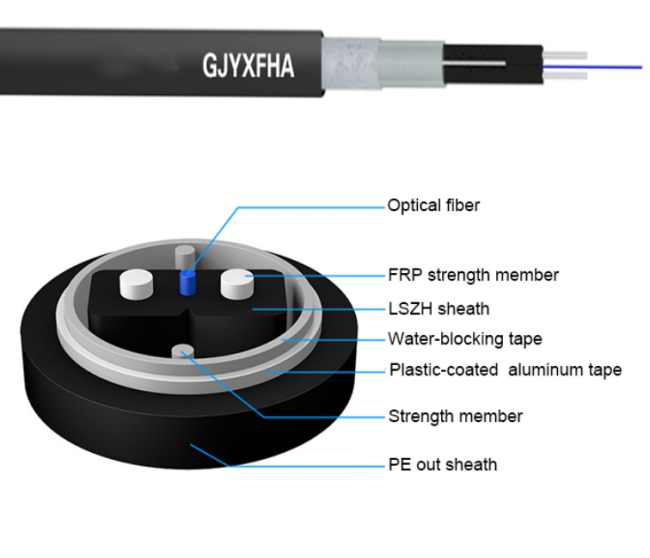

Access network uses the indoor optical cable with a butterfly-shaped that is to place the optical communication unit in the center, two parallel FRP strength member are placed on both sides , and wrapped by a black Lsoh Low Smoke Zero Halogen(LSZH) sheath. And then uses moisture-proof layer of Plastic-coated aluminum tape (APL) , and finally it is completed with PE out sheath.
2.
Characteristics
1.
Flex
durable
fiber
to
provide
greater
bandwidth
and
enhance
network
transmission
characteristics
2. Two parallel FRP strength member to protect the fiber and provide adequate tension and pressure
3. Optical cable has simple structure, light weight and strong practicability
4. unique groove design, Easy peeled off and splice, simplify the installation and maintenance
5. Low smoke halogen-free flame-retardant sheath, pro-environment
6. Anti-UV PE out sheath
7. Moisture-proof layer of Plastic-coated aluminum tape (APL)
3. Applications
Pipeline, overhead, direct burial
| Model No. | Count |
Cable Size (mm) |
Weight (kg/km) |
Tension (N) |
Crush (N/100mm) |
Bending
Radius
Static
/
dynamic (mm) |
| GJYXFHA -1Xn | 1 | 7.3 | 42 | 200/600 | 2000 | 10D/20D |
| GJYXFHA -2Xn | 2 | 7.3 | 42 | 200/600 | 2000 | 10D/20D |
| Category | Description | Specifications | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3E, Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
