| Price | Negotiable |
| MOQ | 20KM |
| Delivery Time | 7 days |
| Brand | YUANTONG |
| Place of Origin | China |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | GJXH-4B |
| Packaging Details | Wooden Drum Plus Carton |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 500km per week |
| Place of Origin | China | Cable Sheath | Black LSZH |
| Packaging Details | Wooden Drum Plus Carton | Product Name | 4 Core Optical Fiber Indoor Use FTTH Drop Cable |
| Model Number | GJXH-4B | Fiber Count | 4 core |
| Fiber Type | G657a2 | Cable Use | Indoor |
| Supply Ability | 500km per week | Certification | ROSH ,TLC, CCC, ISO |
| Brand Name | YUANTONG | Payment Terms | L/C, D/P, T/T, Western Union |
| Cable Color | Blue Green Orange White | Price | Negotiable |
| Delivery Time | 7 days | OEM | Supported |
| Minimum Order Quantity | 20KM | Strength Member | Steel Rod |
4 core Indoor Fiber Optic Drop Cable FTTH G657a2 Access Network For Parch Cord or Pigtail GJX(F)H
1. Product Description

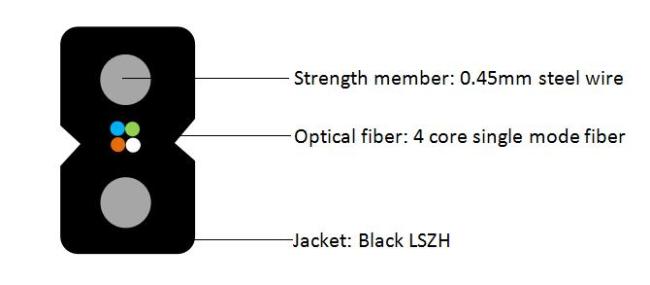

GJX(F)H FTTH indoor cable, the optical fiber unit is positioned in the center. Two parallel Fiber Reinforced steel wires (or FRP) are placed at the two sides. Then the cable is completed with LSZH sheath.
2.
Characteristics
1.
special
low-bend-sensitivity
fiber
provides
high
bandwidth
and
excellent
communication
transmission
property;
2.
Two
parallel
steel
strength
members
ensure
good
performance
of
crush
resistance
to
protect
the
fiber;
3.Single
steel
wire
or
massagers
as
the
additional
strength
member
ensures
good
performance
of
tensile
strength;
4.
Simple
structure,
light
weight
and
high
practicability;
5.
Novel
flute
design,
easily
strip
and
splices
implify
the
installation
and
maintenance;
6.
Low
smoke,
zero
halogen
and
flame
retardant
sheath.
3. Applications
1. Access network
2. FTTH cable (Fiber to the home)
3. Used in indoor cabling
4. Used for parch cord or pigtail
| Fiber Count |
Outer Dia. (mm) |
Tensile Resistance(N) |
Crush Resistance (N/100m) |
Mini Bending Radius (mm) |
Attenuation (dB/km) |
Operation Temperature (℃) |
N.W. (kg/km) |
| GJXH-4 | 2.0×3.0±0.1 | 60 | 120 | 1000 | 2200 | 40 | 20 | ≤ 0.4 | ≤ 0.3 | -30℃~+60℃ | 10.5 |
| Item | Description | |
| Fiber count | 01/02 Fiber | 04 fiber |
| Fiber type | G657A1/A2 | |
| Messenger | 1.0/1.1/1.2mm steel/FRP | |
| Strength member | 2*0.45mm FRP/Steel | |
| Dimension of cable | 2.0(±0.1)mm/5.0(±0.2)mm | 2.2(±0.1)mm/5.5(±0.2)mm |
| Cable weight | 22kg+1kg | |
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3E, Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
