| Price | usd 5.5 |
| MOQ | 20km |
| Delivery Time | within 7 working days |
| Brand | YUANTONG |
| Place of Origin | china |
| Certification | ISO,ANATEL,ROSH,TLC，CCC |
| Model Number | OPGW |
| Packaging Details | wooden drum |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100km per week |
| Place of Origin | china | Packaging Details | wooden drum |
| Material | Aluminium,galvanized steel,Aluminium Alloy/Aluminium Clad Steel | fiber count | 36 core |
| Model Number | OPGW | Supply Ability | 100km per week |
| Span | 100m/150m/200m/400m | Certification | ISO,ANATEL,ROSH,TLC，CCC |
| Surface | smooth | Brand Name | YUANTONG |
| Payment Terms | L/C, T/T, Western Union | fiber type | G652d |
| Item | Overhead line fittings | tube | AL tube |
| Price | usd 5.5 | Delivery Time | within 7 working days |
| Oem | Provided | Minimum Order Quantity | 20km |
| Package | drum with surdace | Application | overhead,self support |

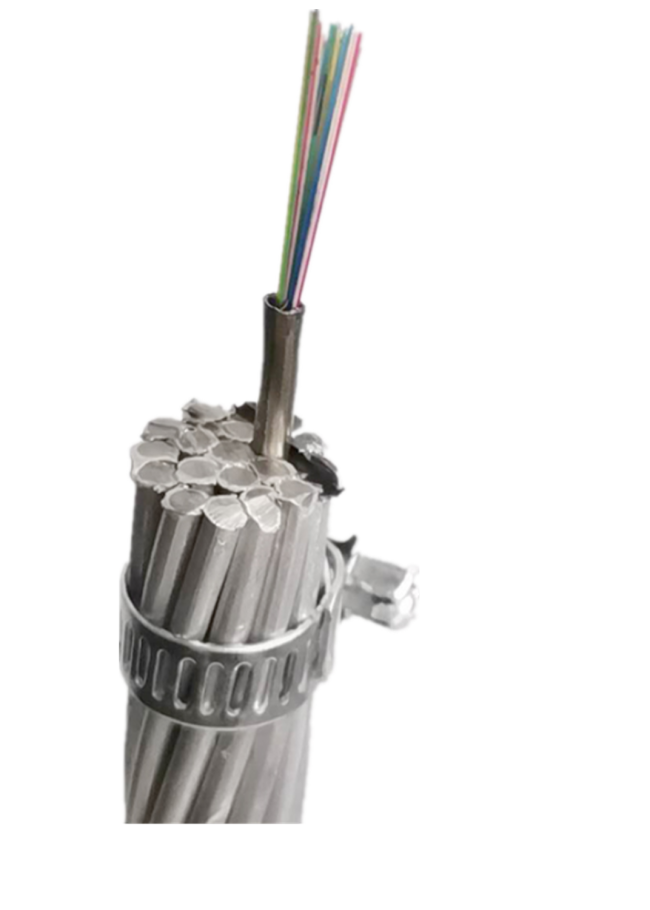

Optical Fiber Composite Ground Wire 12 Core Single Mode Uni-Tube Overhead Aerial Opgw Cable
Description:
Optical fiber composite overhead phase conductor(oppc) is a new type of special power composite cable, which combines optical fiber unit and traditional phase structure in the wire, it makes full use of its own line power system resources, particularly the power system resources, particularly the power distribution network system, to avoid conflict with the outside world in aspects such as frequency resources, routing coordination, electromagnetic compatibility, which gives it dual functions of power transmission and communication.
Application:
Optical fiber composite ground wire [OPGW] is suitable for installation on new power lines with double function of ground wire and communication. Especially for installation on normal voitage and extra high voltage power lines. OPGW can replace conventional ground wire of old power line with increasing fiber communication function. They conduct short circuit current and provide lightning resistance.
Cable characteristics:
1. Up to 144 fibers
| NO. | Subject | Unit | Technical parameter |
| 1 | Optic fiber type | / | G.652D |
| 2 | Numbers of optic fiber cores | Cores | 96/128 |
| 3 | Attenuation characteristics | 1310nm(dB/km) | ≤0.35 |
| 1550nm(dB/km) | ≤0.22 | ||
| 4 | Cable external diameter | mm | ≤12.8 |
| 5 | Weight per unit length of optic cable | kg/km | ≤502 |
| 6 | Total cross section | mm² | 79.38 |
| Cross section of aluminum clad steel wire | mm² | 79.38 | |
| 7 | Rate tensile strength RTS | kN | 62.0 |
| 8 | Elastic modulus | GPa | 132 |
| 9 | Linear expansion coefficient | ×10-6/℃ | 13.8 |
| 10 | 20℃ DC resistance | Ω/km | ≤0.740 |
| 11 | Shortcut current(0.5s,20℃～200℃) | kA | 9.21 |
| 12 |
Allowable short circuit current capacity (0.5s,20℃～200℃) |
kA².S | ≥42.4 |
| 13 | Maximum allowable temperature | ℃ | 200 |
| 14 | Maximum allowable tension(40%RTS) | kN | 24.80 |
| 15 | Annual average operatingtension(25%RTS) | kN | 15.50 |
| 16 | Minimum allowable bending radius | operation:mm | 15D |
| construction:mm | 20D | ||
| 17 | Storage installation temperature | Storage(℃) | -40～+80 |
| Installation(℃) | -10～+50 |
