| Price | usd 5.5 |
| MOQ | 20km |
| Delivery Time | within 7 working days |
| Brand | YUANTONG |
| Place of Origin | china |
| Certification | ISO,ANATEL,ROSH,TLC，CCC |
| Model Number | OPGW |
| Packaging Details | wooden drum |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100km per week |
| Place of Origin | china | Packaging Details | wooden drum |
| Material | Aluminium,galvanized steel,Aluminium Alloy/Aluminium Clad Steel | fiber count | 96 core |
| Model Number | OPGW | Supply Ability | 100km per week |
| Span | 100m/150m/200m/400m | Certification | ISO,ANATEL,ROSH,TLC，CCC |
| Surface | smooth | Brand Name | YUANTONG |
| Payment Terms | L/C, T/T, Western Union | fiber type | G652d |
| Item | Overhead line fittings | tube | AL tube |
| Price | usd 5.5 | Delivery Time | within 7 working days |
| Oem | Provided | Minimum Order Quantity | 20km |
| Package | drum with surdace | Application | overhead,self support |

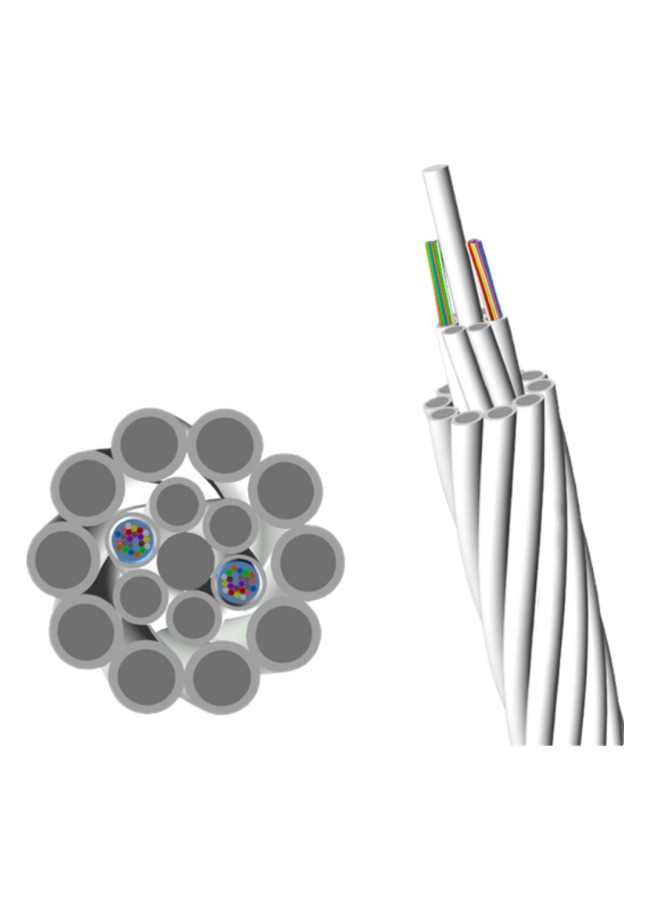

96 Core Optical Fiber Composite Ground Wire Aerial Stranded Aluminum Clad Steel Single Mode Opgw Cable
Description:
Applications:
1.
aerial
ground
wires
2.
Power
line
communication
systems
Feature:
1.
High
quality
standards
for
designing,
testing
and
producing
with
grade
A
materials
available
to
ensure
long-term
reliability.
2.
Engineering
support
supervising
and
providing
its
own
line
of
accessories
hardware.
3.
Seal
stainless
steel
tube
superior
protection
to
the
fiber
optical
to
moisture
and
extreme
environmental
conditions
such
as
lightening.
4.
To
construct
OPGW
must
cut
power,
resulting
in
greater
loss,
thus
OPGW
must
be
used
in
constructing
high
pressure
line
over
110KV.
5.
Apply
to
the
transformation
of
old
lines.
1.
Big
diameter
and
more
optical
fiber.
2.
Big
tensile
strength
and
short-circuit
capacity,arrive
the
best
balance
of
machanical
and
electrical
properties.
3.
One
or
more
optical
unit.
4.
Best
design
of
stranding,obtain
secondary
optical
fiber
extra
length.
5.
Strands
piles
can
be
two
or
three,the
wire
can
be
ACS
wire
and/or
the
combination
of
aluminium
alloy
wire
and
aluminium
wire.
| NO. | Subject | Unit | Technical parameter |
| 1 | Optic fiber type | / | G.652D |
| 2 | Numbers of optic fiber cores | Cores | 96/128 |
| 3 | Attenuation characteristics | 1310nm(dB/km) | ≤0.35 |
| 1550nm(dB/km) | ≤0.22 | ||
| 4 | Cable external diameter | mm | ≤12.8 |
| 5 | Weight per unit length of optic cable | kg/km | ≤502 |
| 6 | Total cross section | mm² | 79.38 |
| Cross section of aluminum clad steel wire | mm² | 79.38 | |
| 7 | Rate tensile strength RTS | kN | 62.0 |
| 8 | Elastic modulus | GPa | 132 |
| 9 | Linear expansion coefficient | ×10-6/℃ | 13.8 |
| 10 | 20℃ DC resistance | Ω/km | ≤0.740 |
| 11 | Shortcut current(0.5s,20℃～200℃) | kA | 9.21 |
| 12 |
Allowable short circuit current capacity (0.5s,20℃～200℃) |
kA².S | ≥42.4 |
| 13 | Maximum allowable temperature | ℃ | 200 |
| 14 | Maximum allowable tension(40%RTS) | kN | 24.80 |
| 15 | Annual average operatingtension(25%RTS) | kN | 15.50 |
| 16 | Minimum allowable bending radius | operation:mm | 15D |
| construction:mm | 20D | ||
| 17 | Storage installation temperature | Storage(℃) | -40～+80 |
| Installation(℃) | -10～+50 |
