| Price | Negotiable |
| MOQ | 20KM |
| Delivery Time | 7 days |
| Brand | YUANTONG |
| Place of Origin | China |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | ADSS-12 |
| Packaging Details | Wooden Drum Plus Carton |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 500km per week |
| Place of Origin | China | Cable Sheath | HDPE |
| Packaging Details | Wooden Drum Plus Carton | Product Name | 12 Core Aramid Yarn Water Blocking Tape FRP Strength Member ADSS Fiber Optical Cable |
| Model Number | ADSS-12 | Fiber Count | 12 core |
| Fiber Type | G652D | Cable Use | Aerial |
| Supply Ability | 500km per week | Certification | ROSH ,TLC, CCC, ISO |
| Sheath | Single sheath | Brand Name | YUANTONG |
| Payment Terms | L/C, D/P, T/T, Western Union | Cable Color | Black |
| Price | Negotiable | Delivery Time | 7 days |
| Minimum Order Quantity | 20KM | Strength Member | Aramid Yarn |

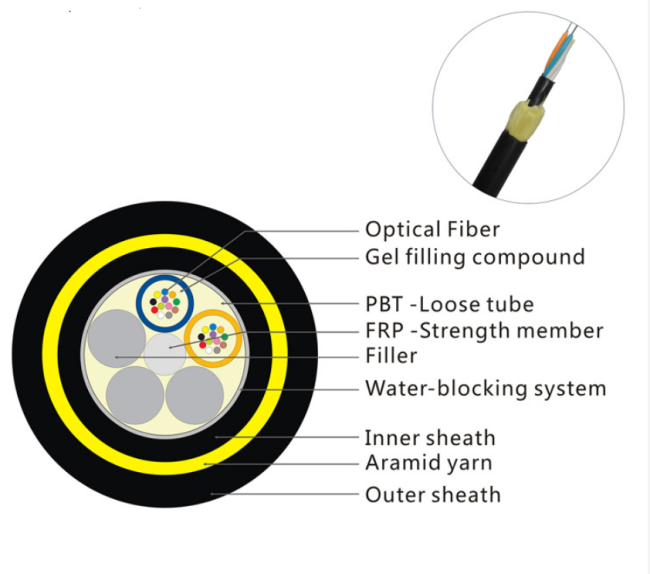

Characteristics
1. Small cable diameter, light weight, 100m span, low attached load on tower
2. Tensile strength is over 90KN
3.
The
following
measures
are
taken
to
ensure
the
cable
watertight:
4.
Single
Fiber
Reinforced
Plastic
as
the
central
strength
member
5.
Loose
tube
filling
compound
6.
100%
cable
core
filling
Application
1. Long distance communication and local area network, especially suitable for long span environment,complex area.
2. Erect on the same pole with power line in new and old power line.
| Cable Performance Parameter | |||
| Span meter | 200 | 300 | 400 |
| Related Strength Tension(RTS) | 17.5 kn | 20.6 kn | 28 kn |
| Max Allowable Tension(MAT) | 6.9 kn | 8.2 kn | 11.5 kn |
| Allowable Crush Resistance | Long Term: 1100 n/100mm | Long Term: 1100 n/100mm | Long Term: 1100 n/100mm |
| Short Term: 2200 n/100mm | Short Term: 2200 n/100mm | Short Term: 2200 n/100mm | |
| Minimum Bending Radius | Operating: 220 mm | Operating: 220 mm | Operating: 220 mm |
| Installlation: 360 mm | Installlation: 360 mm | Installlation: 360 mm | |
| Temperature Range | Operating: -40 /+70℃ | Operating: -40 /+70℃ | Operating: -40 / +70℃ |
| Installlation: -15 / +60℃ | Installlation: -15 / +60℃ | Installlation: -15 / +60℃ | |
| Out Sheath Material | Electrical Resistance AT (Borealis material 6081) Sheath | ||
| Note | ice accretion 5MM,weed speed:30M/S | ||
Fiber Parameters
| Category | Description | Specifications | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
FAQ
1.
Are
you
the
real
manufacturer?
Yes.
We
are
the
real
manufacturer
with
18
years'
history.
2.
What
is
your
fiber
brand
?
Corning,
SEI,
YOFC,
FiberHome,
etc
3.
Can
you
accept
small
order?
Yes,
small
order
is
available
.We
support
new
project
of
our
customers
as
we
know
business
is
always
from
small
order.
4.What
is
your
warranty
period?
25
years
for
fiber
optic
cable
5.
Which
kind
of
certification
you
have
?
ISO9001,
SGS,
3C
Anatel.
6.
What
is
your
delivery
time?
Usually
within
2-3
working
days
7.
What
about
your
annual
production
capacity?
Outdoor/Indoor
Fiber
Optic
Cable,
our
annual
output
is
8,000,000
KM;
FTTH/FTTX/FTTA
Cable,
it
is
6,000,000
KM
per
year;
Patch
Cord/Pigtails,
it
is
12,400,000
Pieces
per
year.
8.
What
is
your
payment
way?
T/T,
L/C,
Western
Union
and
Paypal.
9.
Can
you
supply
customized
products
and
logo?
-Yes.
We
supply
OEM&ODM
service.
You
can
send
us
your
drawing.
10.
Can
you
supply
your
cable
test
value
form?
-Yes.
After
finishing
production
,
we
can
supply
if
you
ask.
11.
Do
your
factory
inspect
every
roll
of
cables?
-Yes.
we
factory
do
100%
inspection
per
order.
