| Price | usd 0.28/m |
| MOQ | 50km |
| Delivery Time | within 7 working days |
| Brand | YUANTONG |
| Place of Origin | china |
| Certification | ISO,ANATEL,ROSH,TLC，CCC |
| Model Number | BV 4mm² |
| Packaging Details | rolls in carton box |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000km per day |
| Place of Origin | china | sheath | PVC |
| cross section | 1.5/2.5/4/6/10 | Use | Electric appliance,LED lighting.ect |
| Packaging Details | rolls in carton box | Color | yellow/red/black/blue |
| Model Number | BV 4mm² | packing | in roll |
| Supply Ability | 1000km per day | Certification | ISO,ANATEL,ROSH,TLC，CCC |
| Brand Name | YUANTONG | Payment Terms | L/C, T/T, Western Union |
| Price | usd 0.28/m | Delivery Time | within 7 working days |
| Product name | BV 4mm² PVC Efficient Insulation Construction Electric Copper Wire | Length | 100m/roll |
| Minimum Order Quantity | 50km | Conductor | Copper Core |
Bv 4mm/6 mm² Pvc Efficient Insulation Construction Electric Copper Wire
Product Description
| Product name | Wire |
| Material | Copper+PVC |
| Color | Yellow/red/blue/white/black |
| Delivery | FOB/CIF/CFR/EXW |
| Size | Custom |
| OEM/ODM | Customization Service Provided |
APPLICATION:
These cables are intended for drawing into trunking and conduit and are suitable for use in electrical installations such as power, lighting, appliances and switchgear wiring
HARMONISED CODE:
0.75mm2 & 1.0mm2 solid conductor wire H05V-U
1.5mm2 & 2.5mm2 solid conductor wire H07V-U
1.5mm2 to 120mm2 stranded conductor wire H07V-R
CONSTRUCTION:
Reference: 6491X or 6491X HR*
Conductor: Solid / stranded plain copper class 1 or 2 to BS6360/IEC60228-1
Insulation: PVC Type TI 1 to BS7655 / *PVC Type TI 3 HR to BS7655
STANDARD COLOURS:
Red, Yellow, Blue, Black, Green, Yellow/Green, Brown, Grey Other colours available on request
PACKAGING:
Sizes 0.75mm2 to 35mm2 in reels/coils of 100yards and 100m
All sizes can be supplied in non-returnable wooden reels of 500m and 1000m
Customised lengths available on request

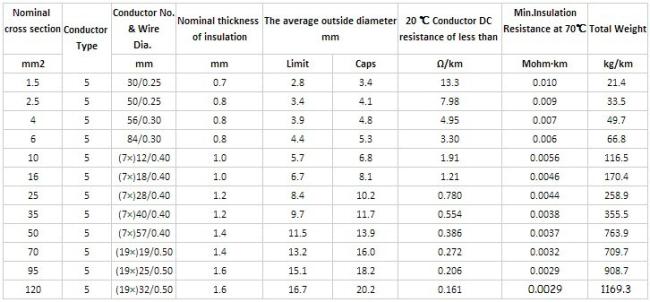

TECHNICAL DATA:
Max. Operating Temperature: 70OC / *105OC
Rated Voltage: 450/750V (300/500V for 0.75mm2 & 1.0mm2)
Standards: Generally to BS6004
