GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable G652D For Communication

Price	Negotiable
MOQ	20KM
Delivery Time	7 days
Brand	YUANTONG
Place of Origin	China
Certification	ROSH ,TLC, CCC, ISO
Model Number	GYTC8A 72 Core
Packaging Details	Wooden Drum
Payment Terms	L/C, D/P, T/T, Western Union
Supply Ability	500km per week

Product Details

Product Specification

Place of Origin	China	Cable Sheath	Aluminum PE
Packaging Details	Wooden Drum	Product Name	72 Core Figure-8 Aluminium-armored PE Sheath Communication Outdoor Fiber Optic Cable GYTC8A
Model Number	GYTC8A 72 Core	Fiber Count	72 Core
Fiber Type	G652D	Cable Use	Aerial
Supply Ability	500km per week	Certification	ROSH ,TLC, CCC, ISO
Brand Name	YUANTONG	Payment Terms	L/C, D/P, T/T, Western Union
Cable Color	Blue Green Orange Brown	Price	Negotiable
Delivery Time	7 days	OEM	Supported
Minimum Order Quantity	20KM	Strength Member	Metallic strength member

Product Description

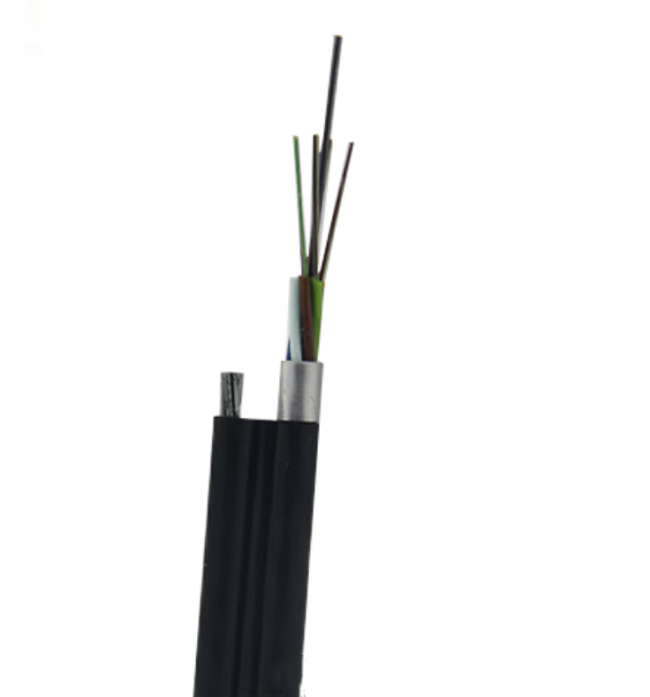

72 Core Figure-8 Aluminium-armored PE Sheath Communication Outdoor Fiber Optic Cable GYTC8A

Description:

In the GYTC8A cable, singlemode/multimode fibers are positioned in the loose tubes, while the loose tubes
strand together around metallic central strength member into a compact and circular cable core, and the water-blocking
materials are distributed into interstices of it. After a PSP/APL is applied around the cable core, this part of cable accompanied
with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.

Characteristics:

Excellent mechanical and temperature performance
Critical protection to fibers,
The following measures are taken to ensure the
water blocking performance of the cable:
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube
- 100% cable core filling

Applications:

Suitable for direct buried and duct installation
Outside plant environments

Model	Description	Applications	Tensile Strength (N)		Crush Resistance (N/100mm)
			Long term	short term	Long term	short term
GYTC8A	72 Core Metallic strength member,Outdoor layer filling loose tube, fig.8 self-supporting,Aluminium-armored, PE sheath communication outdoor optical cable	Self-supporting overhead laying	3000	8000	300	1000

Bned Radius (mm)		Working Temperature(℃)		Max. attenuation (dB/km)		fibers	OD(mm)	weight kg/km
Static(D)	Dynamic (D)	Min.TA	Max.TB	1310μm	1550μm	fibers	OD(mm)	weight kg/km
10 D	20 D	-40℃	+60℃	≤0.36	≤0.22	2～144	9.5～18.3	110～300

Category	Description		Specifications
			G.652D
Optical Specifications	Attenuation	@1310nm	≤0.36dB/km
		@1550nm	≤0.22dB/km
	Attenuation discontinuity		≤0.05 dB
	Attenuation vs. Wavelength	@1285~1330nm	≤0.05 dB/km
		@1525~1575nm	≤0.05 dB/km
	Zero Dispersion Wavelength		1300~1324nm
	Zero Dispersion Slope		≤0.092ps/(nm2.km)
	Dispersion	@1310nm	≤3.5 ps/nm.km
		@1550nm	≤18 ps/nm.km
	Polarization Mode Dispersion(PMD)		≤0.2ps/km1/2
	Cable Cutoff Wavelength(λcc)		≤1260nm
	Effective Group Index of Refraction	@1310nm	1.4675
		@1550nm	1.4681
	Macro bend loss (30mm radius,100turns) 1625nm		≤0.1 dB
Geometric Specifications	Mode Field Diameter	@1310nm	9.2±0.6μm
		@1550nm	10.4±0.8μm
	Cladding Diameter		125±1μm
	Cladding Non-Circularity		≤1.0%
	Coating Diameter		245±7μm
	Coating/Cladding Concentricity Error		≤8μm
	Core/Cladding Concentricity Error		≤0.8μm
Mechanical Specifications	Proof Test level		≥1.0%
	Fiber Curl Radius		≥4.0m
	Peak Coating Strip Force		1.3~8.9N
