| Price | Negotiable |
| MOQ | 20KM |
| Delivery Time | 7 days |
| Brand | YUANTONG |
| Place of Origin | China |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | GYXS 12 Core |
| Packaging Details | Wooden Drum |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 500km per week |
| Place of Origin | China | Cable Sheath | Steel-PE outer jacket |
| Packaging Details | Wooden Drum | Product Name | 12 Core Metallic Strength Member Central Tube Dry-Type Steel-PE Outer Jacket Outdoor Fiber Optic Cable GYXS |
| Model Number | GYXS 12 Core | Fiber Count | 12 Core |
| Fiber Type | G652D | Cable Use | Outdoor |
| Supply Ability | 500km per week | Certification | ROSH ,TLC, CCC, ISO |
| Brand Name | YUANTONG | Payment Terms | L/C, D/P, T/T, Western Union |
| Cable Color | Black | Price | Negotiable |
| Delivery Time | 7 days | Minimum Order Quantity | 20KM |
| Strength Member | Metallic strength member | Loose tube | PBT |

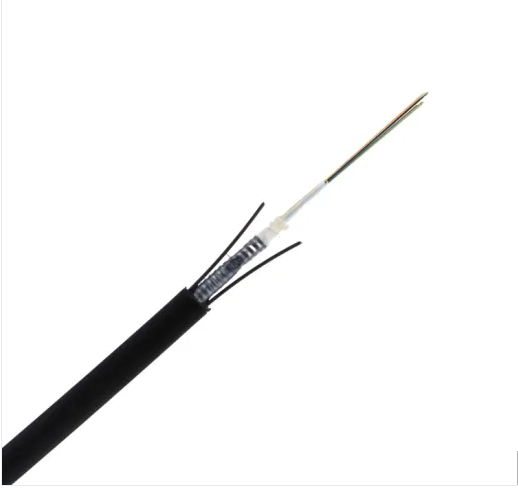

12 Core Metallic Strength Member Central Tube Dry-Type Steel-PE Outer Jacket Outdoor Fiber Optic Cable GYXS
Description:
The
fibers,
250µ
M,
are
positioned
in
a
loose
tube
made
of
a
high
modulus
plastic.
The
tubes
ate
filled
with
a
water-resistant
filling
compound,
The
tube
is
wrapped
with
a
layer
of
PSP
longitudinally.
Between
the
PSP
and
the
loose
tube
water-blocking
material
is
applied
to
keep
the
cable
compact
and
watertight.
Two
parallel
steel
wires
are
placed
at
the
two
sides
of
the
steel
tape.,
The
cable
is
finally
completed
with
the
PE
sheath.
Feature:
Good
mechanical
and
temperature
performance
High
strength
loose
tube
that
is
hydrolysis
resistant
Special
tube
filling
compound
ensure
a
critical
protection
of
fiber
Crush
resistance
and
flexibility
PSP
enhancing
moisture-proof
Two
parallel
steel
wires
ensure
tensile
strength
Small
diameter
light
weight
and
friendly
installation
Long
delivery
length
| Model | Description | Applications |
| GYXS | Metallic strength member,Central tube,Dry-type,Steel-PE outer jacket | tunnel |
| Tensile Strength (N) | Crush Resistance (N/100mm) |
Bned
Radius (mm) |
Working Temperature(℃) | Max. attenuation (dB/km) | fibers | OD(mm) | weight kg/km | |||||
| Long term | short term | Long term | short term | Static(D) | Dynamic (D) | Min.TA | Max.TB | 1310μm | 1550μm | |||
| 600 | 1500 | 300 | 1000 | 10 D | 20 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 | 2～24 | 16.0～18.0 | 250～290 |
| Category | Description | Specifications | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
FAQ
1.
Are
you
the
real
manufacturer?
Yes.
We
are
the
real
manufacturer
with
18
years'
history.
2.
What
is
your
fiber
brand
?
Corning,
SEI,
YOFC,
FiberHome,
etc
3.
Can
you
accept
small
order?
Yes,
small
order
is
available
.We
support
new
project
of
our
customers
as
we
know
business
is
always
from
small
order.
4.What
is
your
warranty
period?
25
years
for
fiber
optic
cable
5.
Which
kind
of
certification
you
have
?
ISO9001,
SGS,
3C
Anatel.
6.
What
is
your
delivery
time?
Usually
within
2-3
working
days
7.
What
about
your
annual
production
capacity?
Outdoor/Indoor
Fiber
Optic
Cable,
our
annual
output
is
8,000,000
KM;
FTTH/FTTX/FTTA
Cable,
it
is
6,000,000
KM
per
year;
Patch
Cord/Pigtails,
it
is
12,400,000
Pieces
per
year.
8.
What
is
your
payment
way?
T/T,
L/C,
Western
Union
and
Paypal.
9.
Can
you
supply
customized
products
and
logo?
-Yes.
We
supply
OEM&ODM
service.
You
can
send
us
your
drawing.
10.
Can
you
supply
your
cable
test
value
form?
-Yes.
After
finishing
production
,
we
can
supply
if
you
ask.
11.
Do
your
factory
inspect
every
roll
of
cables?
-Yes.
we
factory
do
100%
inspection
per
order.
