| Price | Negotiable |
| MOQ | 20KM |
| Delivery Time | 7 days |
| Brand | YUANTONG |
| Place of Origin | China |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | GYTZA33 12 Core |
| Packaging Details | Wooden Drum |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 500km per week |
| Place of Origin | China | Cable Sheath | PE sheath, PE outer sheath |
| Packaging Details | Wooden Drum | Product Name | 12 Core Single Steel Wire PE Outer Sheath Flame-Retardant Layer Filling Loose Tube Outdoor Fiber Optic Cable GYTZA33 |
| Model Number | GYTZA33 12 Core | Fiber Count | 12 Core |
| Fiber Type | G652D | Cable Use | Outdoor |
| Supply Ability | 500km per week | Certification | ROSH ,TLC, CCC, ISO |
| Brand Name | YUANTONG | Payment Terms | L/C, D/P, T/T, Western Union |
| Cable Color | Black | Price | Negotiable |
| Delivery Time | 7 days | Minimum Order Quantity | 20KM |
| Loose tube | PBT |
12
Core
Single
Steel
Wire
PE
Outer
Sheath
Flame-Retardant
Layer
Filling
Loose
Tube
Outdoor
Fiber
Optic
Cable
GYTZA33

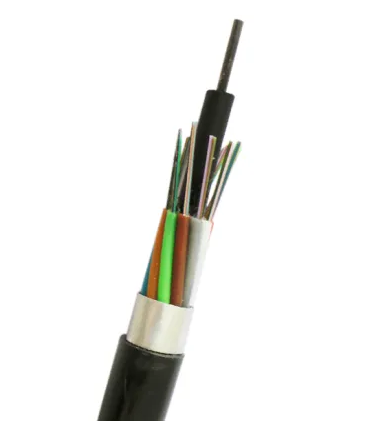

Description:
The
fibers,250µm,are
positioned
in
a
loose
tube
made
of
a
high
modulus
plastic.
The
tubes
are
filled
with
a
water-resistant
filling
compound,
A
steel
wire,sometimes
sheathed
with
PE
for
cable
with
high
fiber
count,
located
in
the
center
of
core
as
a
metallic
strength
member
into
a
compact
and
circular
cable
core
.An
Aluminum
Polyethylene
Laminate
(APL)
is
applied
around
the
cable
core
.which
is
filled
with
the
filling
compound
to
protect
it
from
water
ingress.
Then
the
cable
is
completed
with
a
Flame-retardant
sheath.
Feature:
Good
mechanical
and
temperature
performance
High
strength
loose
tube
that
is
hydrolysis
resistant
Special
tube
filling
compound
ensure
a
critical
protection
of
fiber
Specially
designed
compact
structure
is
good
at
preventing
loose
tubes
from
shrinking
Crush
resistance
and
flexibility
Special
sheath
material
ensure
excellent
flame-retardant
performance
The
following
measures
are
taken
to
ensure
the
cable
watertight
1.
Steel
wire
used
as
the
central
strength
member
2.
Loose
tube
filling
compound
3.
100%
cable
core
filling
4.
APL
moisture
barrier
| Model | Description | Applications |
| GYTZA33 | GYTZA33 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,PE sheath,Single steel wire PE outer sheath, Flame-retardant | Direct burial&Underwater laying |
| Tensile Strength (N) | Crush Resistance (N/100mm) |
Bned
Radius (mm) |
Working Temperature(℃) | Max. attenuation (dB/km) | |||||
| Long term | short term | Long term | short term | Static(D) | Dynamic (D) | Min.TA | Max.TB | 1310μm | 1550μm |
| 4000 | 10000 | 3000 | 5000 | 12.5 D | 25 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
| Category | Description | Specifications | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
FAQ
1.
Are
you
the
real
manufacturer?
Yes.
We
are
the
real
manufacturer
with
18
years'
history.
2.
What
is
your
fiber
brand
?
Corning,
SEI,
YOFC,
FiberHome,
etc
3.
Can
you
accept
small
order?
Yes,
small
order
is
available
.We
support
new
project
of
our
customers
as
we
know
business
is
always
from
small
order.
4.What
is
your
warranty
period?
25
years
for
fiber
optic
cable
5.
Which
kind
of
certification
you
have
?
ISO9001,
SGS,
3C
Anatel.
6.
What
is
your
delivery
time?
Usually
within
2-3
working
days
7.
What
about
your
annual
production
capacity?
Outdoor/Indoor
Fiber
Optic
Cable,
our
annual
output
is
8,000,000
KM;
FTTH/FTTX/FTTA
Cable,
it
is
6,000,000
KM
per
year;
Patch
Cord/Pigtails,
it
is
12,400,000
Pieces
per
year.
8.
What
is
your
payment
way?
T/T,
L/C,
Western
Union
and
Paypal.
9.
Can
you
supply
customized
products
and
logo?
-Yes.
We
supply
OEM&ODM
service.
You
can
send
us
your
drawing.
10.
Can
you
supply
your
cable
test
value
form?
-Yes.
After
finishing
production
,
we
can
supply
if
you
ask.
11.
Do
your
factory
inspect
every
roll
of
cables?
-Yes.
we
factory
do
100%
inspection
per
order.
