| Price | Negotiable |
| MOQ | 20KM |
| Delivery Time | 7 days |
| Brand | YUANTONG |
| Place of Origin | China |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | GYXTC8A 48 Core |
| Packaging Details | Wooden Drum |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 500km per week |
| Place of Origin | China | Cable Sheath | Aluminum PE |
| Packaging Details | Wooden Drum | Product Name | 48 Core Figure-8 Steel PE sheath Communication Outdoor Fiber Optic Cable GYXTC8A |
| Model Number | GYXTC8A 48 Core | Fiber Count | 48 Core |
| Fiber Type | G652D | Cable Use | Outdoor |
| Supply Ability | 500km per week | Certification | ROSH ,TLC, CCC, ISO |
| Brand Name | YUANTONG | Payment Terms | L/C, D/P, T/T, Western Union |
| Cable Color | Blue Green Orange Brown | Price | Negotiable |
| Delivery Time | 7 days | OEM | Supported |
| Minimum Order Quantity | 20KM | Strength Member | Metallic strength member |

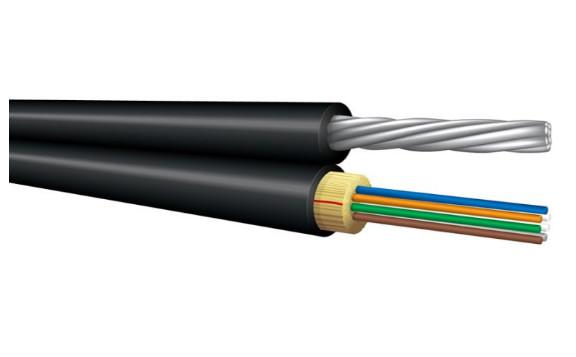

48 Core Figure-8 Aluminium PE sheath Communication Outdoor Fiber Optic Cable GYXTC8A
Description
The
fibers,
150um,
are
positioned
in
a
loose
tube
made
of
a
high
modulus
plastic.
The
tubes
are
filled
with
a
water-resistant
filling
compound.
A
steel
wire
located
in
the
center
of
core
as
a
metallic
strength
member.
The
tubes(
and
fillers)
are
stranded
around
the
strength
member
into
a
compact
and
circular
cable
core.
After
an
Aluminum
Polyethylene
Laminate(APL)
moisture
barrier
is
applied
around
the
cable
core,
this
part
of
cable
accompanied
with
the
stranded
wires
as
the
supporting
part
are
completed
with
a
polyethylene(PE)
sheath
to
be
figure
8
structure.
Characteristics
High
tensile
strength
of
stranede
wires
meet
the
requirement
of
self-supporting
and
reduce
installation
cost
Good
mechanical
and
temperature
performance
High
strength
loose
tube
that
is
hydeolysis
resistant
Special
tube
filling
compound
ensure
a
critical
protection
of
fiber
The
following
measures
are
taken
to
ensure
the
cable
watertight:
Steel
wire
used
as
teh
central
strength
member
Loose
tube
filling
compound
100%
cable
core
filling
APL
moisture
barrier
| Model | Description | Applications | Tensile Strength (N) | Crush Resistance (N/100mm) | ||
| Long term | short term | Long term | short term | |||
| GYXTC8A | 48 Core Metallic strength member,Outdoor loose tube, fig.8 self-supporting, Aluminium PE sheath communication outdoor optical cable | Self-supporting overhead laying | 1000 | 3000 | 300 | 1000 |
|
Bned
Radius (mm) |
Working Temperature(℃) | Max. attenuation (dB/km) | fibers | OD(mm) | weight kg/km | |||
| Static(D) | Dynamic (D) | Min.TA | Max.TB | 1310μm | 1550μm | |||
| 10 D | 20 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 | 2～12 | 6.5～9.5 | 80～100 |
| Category | Description | Specifications | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
