| Price | usd 5.5 |
| MOQ | 20km |
| Delivery Time | within 7 working days |
| Brand | YUANTONG |
| Place of Origin | china |
| Certification | ISO,ANATEL,ROSH,TLC，CCC |
| Model Number | OPGW |
| Packaging Details | wooden drum |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100km per week |
| Place of Origin | china | Packaging Details | wooden drum |
| Material | Aluminium,galvanized steel,Aluminium Alloy/Aluminium Clad Steel | fiber count | 12-48core |
| Model Number | OPGW | Supply Ability | 100km per week |
| Span | 100m/150m/200m/400m | Certification | ISO,ANATEL,ROSH,TLC，CCC |
| Surface | smooth | Brand Name | YUANTONG |
| Payment Terms | L/C, T/T, Western Union | fiber type | G652d |
| Item | Overhead line fittings | tube | AL tube |
| Price | usd 5.5 | Delivery Time | within 7 working days |
| Oem | Provided | Minimum Order Quantity | 20km |
| Package | drum with surdace | Application | overhead,self support |
Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options
Applications:
● Replacement of existing ground wires and reconstruction of old lines.
● Applicable to low-grade lines, such as GJ50/70/90 and etc.
Main Features:
● Small cable diameter, light weight, low additional load to the tower;

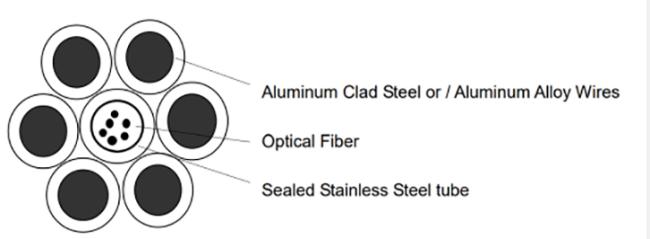

● The steel tube locates at the center of the cable, no second mechanical fatigue damage.
● Low resistance to side pressure, torsion and tensile (single layer).
Technical Parameter
Typical design for Single Layer:
| Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) | ||
| OPGW-32(40.6;4.7) | 12 | 7.8 | 243 | 40.6 | 4.7 | ||
| OPGW-42(54.0;8.4) | 24 | 9 | 313 | 54 | 8.4 | ||
| OPGW-42(43.5;10.6) | 24 | 9 | 284 | 43.5 | 10.6 | ||
| OPGW-54(55.9;17.5) | 36 | 10.2 | 394 | 67.8 | 13.9 | ||
| OPGW-61(73.7;175) | 48 | 10.8 | 438 | 73.7 | 17.5 | ||
| OPGW-61(55.1;24.5) | 48 | 10.8 | 358 | 55.1 | 24.5 | ||
| OPGW-68(80.8;21.7) | 54 | 11.4 | 485 | 80.8 | 21.7 | ||
| OPGW-75(54.5;41.7) | 60 | 12 | 459 | 63 | 36.3 | ||
| OPGW-76(54.5;41.7) | 60 | 12 | 385 | 54.5 | 41.7 | ||
Typical design for Double Layer:
|
Specification |
Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) |
| OPGW-96(121.7;42.2) | 12 | 13 | 671 | 121.7 | 42.2 |
| OPGW-127(141.0;87.9) | 24 | 15 | 825 | 141 | 87.9 |
| OPGW-127(77.8;128.0) | 24 | 15 | 547 | 77.8 | 128 |
| OPGW-145(121.0;132.2) | 28 | 16 | 857 | 121 | 132.2 |
| OPGW-163(138.2;183.6) | 36 | 17 | 910 | 138.2 | 186.3 |
| OPGW-163(99.9;213.7) | 36 | 17 | 694 | 99.9 | 213.7 |
| OPGW-183(109.7;268.7) | 48 | 18 | 775 | 109.7 | 268.7 |
| OPGW-183(118.4;261.6) | 48 | 18 | 895 | 118.4 |
261.6 |
